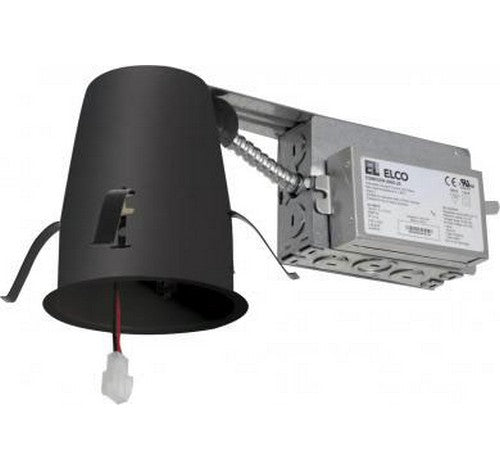

ELCO Lighting E4LRC08ICAD Cedar System Contemporary 4 inch Remodel IC Airtight Recessed Lighting Housing with Driver 850lm - Black Finish

Features:

• UL Listed for direct contact with insulation.

• Optional 90 minutes, 120/277 VAC, 60Hz, Emergency Backup.

• ENERGY STAR® Certified.

• Flicker-Free Dimming. Special order Lutron Hi-lume Series Drivers.

• USA designed and assembled.

• Limited 5 year warranty.

• For use with ELCO Cedarž¢ System 4" LED Light Engines.


SPECIFICATIONS :

Construction:
Single wall IC rated for direct contact with insulation. For use in IC and non-IC conditions. Up to 850 lumens.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

Installation:
Designed for ceiling plenums where 2x6 joists or taller are used.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Two 3/4‚¬� knockouts, Seven 1/2‚¬� trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Electrical:
Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.95.

Dimmability:
3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 1% with compatible dimmer.
Can be specified with Lutron drivers for specific applications.
For full list of dimmers refer to the Dimmer Compatibility List.

Listings: UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Direct Contact with Insulation and Combustible Material. UL Listed for Feed Through.
