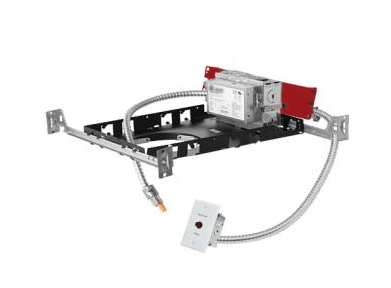

Elco Lighting E4LFU08D2-EM1 4" New Construction Plaster Frame with Driver, 12.5W, 850lm, 120-277V, Gen 2, Dimming 0-10VTriac/ELV (1% Dimming), 8W Emer. Backup

Brand: Elco Lighting
Part #: E4LFU08D2-EM1

Elco Lighting E4LFU08D2-EM1 4" New Construction Plaster Frame with Driver, 12.5W, 850lm, 120-277V, Gen 2, Dimming 0-10VTriac/ELV (1% Dimming), 8W Emer. Backup

$264.60

Product variants

Share:

Share

Pickup available at Sonic Distribution Center

Usually ready in 24 hours

Pairs well with

Elco Lighting E4LFU08D2-EM1 4" New Construction Plaster Frame with Driver, 12.5W, 850lm, 120-277V, Gen 2, Dimming 0-10VTriac/ELV (1% Dimming), 8W Emer. Backup

$264.60

In Stock

Ships in 1-3 Business Days

Authorized Brand Dealer

Secure Checkout

Product Details

Description

Elco Lighting 4" New Construction Plaster Frame with Driver, Wattage 12.5W, Lumens 850 lm, Voltage 120-277V, Gen 2, Dimming 0-10VTriac/ELV (1% Dimming), 8W Emer. Backup

FEATURES:

Optional 90 minutes, 120/277 VAC, 60Hz Emergency Backup.
USA designed and assembled.
LED Light Engine sold separately (see Compatible Products).
2 at the end of the item number denotes Generation 2. Please note Gen 2 and Gen 1 are not cross compatible.

Specifications:

Wattage 12.5 MAX.W
Lumens 850 lm
Voltage 120/277V
Dimmable 0-10V/Triac/ELV (1%
Dimming)
Power Factor €°¥0.9
Damp Location Listed

Technical Details:

Construction: Constructed from 16 gauge galvanized steel for commercial building applications

Installation: High strength hanger bars can easily be nailed to joists. Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2� trade size conduit knockouts and four pry-out knockout slots for easy romex installation.

Hanger Bars: Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Electrical:
Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.9.
Can be specified with Lutron drivers for specific applications.

Dimmability:
3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver to 1%.
Flicker-Free Dimming.
For a full list of dimmers refer to the Dimmer Compatibility List.

Listings: cULus Listed for Damp Location. cULus Listed for Wet Location with select trims. cULus Listed for Direct Contact with Insulation and Combustible Material for units up to 2000 lm. cULus Listed for Feed Through.

Warranty: ELCO Products are built to last. 5-year Limited warranty
