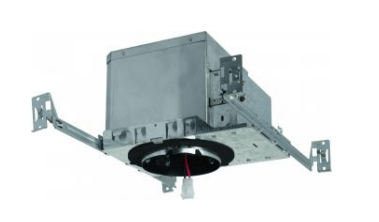

Elco Lighting E4LC16D2-EM2 4" Cedar System Non-IC New Construction Housing w/Driver, 1600lm, 120-277V, Dimming Triac/ELV/0-10V, Gen 2, 2 Emergency Battery up to 1100lm

Non-IC Airtight housing for high-end residential and light commercial, 1600 lumens.

Features:

USA designed and assembled.
Limited 5 year warranty.
For use with ELCO Cedar System 4" LED Light Engines.
2 at the end of the item number denotes Generation 2. Please note Gen 2 and Gen 1 are not cross compatible.

Specifications:

Lumens 1600 lm
Voltage 120/277V or 120V
Dimmable Triac/ELV, Triac/ELV/0-10V, Sunset

Technical Details:

Construction: Non-IC Frame for non-IC conditions. Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.

Installation: Designed for ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can easily be nailed to joists. Suitable for T-grid and drop ceiling applications.See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Two 3/4� knockouts, Seven 1/2� trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Hanger Bars: Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Electrical: Driver is rated for 120V and 277V input (120/277V). High Efficiency driver with a power factor > 0.95.

Dimmability: 3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver. 0-10V dimming down to 5% with a compatible dimmer. Can be specified with Lutron drivers for 0.1% and 1% dimming. For a full list of dimmers refer to the Dimmer Compatibility List.

Emergency Battery Pack: Optional 90 minute battery pack available with test indicator switch. Note that double wall housings require Access From Above Ceiling for Battery Maintenance.

Listings: UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Feed Through.
