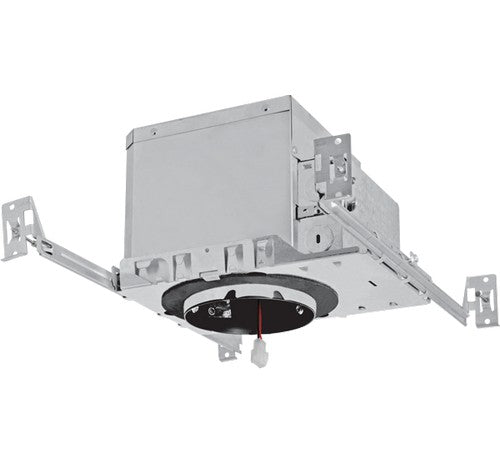

ELCO Lighting E4LC12ICA 4" Cedar System New Construction IC Airtight Housing w/Driver 1250lm (120V Triac/ELV)

4‚¬³ Cedar System New Construction IC Airtight Housing w/Driver
Double Wall IC Airtight housing for high-end residential and light commercial, 1250 lumen.

FEATURES:

• UL Listed for direct contact with insulation.

• Optional 90 minutes, 120/277 VAC, 60Hz, Emergency
  Backup.

• ENERGY STAR® Certified.

• Flicker-Free Dimming.

• USA designed and assembled.

• Limited 5 year warranty.

• For use with ELCO Cedarž¢ System 4" LED Light
  Engines.


SPECIFICATIONS :

• Lumens 1250 lm - 1600 lm

• Voltage 120/277V or 120V

• Dimmable Triac/ELV,

• Triac/ELV/0-10V, Sunset

• Power Factor °¥0.95

• Damp LocationListed

Construction

Double wall IC rated for direct contact with insulation. For use in IC and non-IC conditions. Up to 1250
lumens.
Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements

Installation

Designed for ceiling plenums where 2x6 joists or taller are used.
High strength hanger bars can easily be nailed to joists.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.
Emergency Battery Back-up Option requires access from above

Junction Box:

Positioned to accommodate straight conduit runs. Two 3/4‚¬� knockouts, Seven 1/2‚¬� trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Hanger Bars

Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be
repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for
single-person installation while easily aligning the housings with the joists.

Electrical

Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.95.

Dimmability

3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 5% with a compatible dimmer.
Can be specified with Lutron drivers for 0.1% and 1% dimming.
For a full list of dimmers refer to the Dimmer Compatibility List.

Listings

UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Direct Contact with Insulation and Combustible Material. UL Listed for Feed Through.
