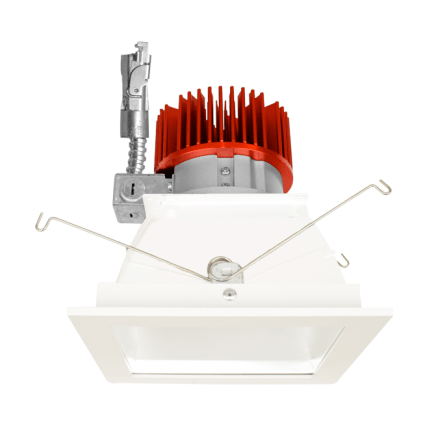

Elco Lighting 4" Square Reflector LED Light Engine Trims, Wattage 18W, Color Temperature 3500K, Lumens 1600 lm, All White

FEATURES:

Light Engines feature premium LED COB with strong and smooth lumen output.
Color temperatures from 2700K to 5000K or Sunset Dimming option.
2 at the end of the item number denotes Generation 2. Please note Gen 2 and Gen 1 are not cross compatible.

SPECIFICATIONS :

Wattage 18W
Lumens 1600 lm
Color Temp. 3500K
Lamp Type LED
CRI 93+
Wet Location Listed

Technical Details:

Optics: Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED technology.

Reflector Construction: Reflector is one piece, deep, self-flanged construction spun from .05� thick High Grade Aluminum. Reflector allows for minimal glare and a strong glare cut-off.

Installation: Must be installed on a Laurel System frame with compatible lumen rating. Frames are available for New Construction, Remodel and as a Retrofit Kit.

LED Technology:
Extremely accurate Color Rendering Index of 93+ CRI. No LED pixilation.
Efficacy of >90 lumens per watt. Instant On to Full Brightness technology.
Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing ELCO Red heat sink.

Sunset: Sunset color temperature is our dim-to-warm LED technology that allows the color temperature to become warmer as the product is dimmed. Our SUNSET items start at 3000K and go as low as 1800K when dimmed. For Sunset dim technology be sure to order an item with "Sunset" in the Color Temperature (CCT) attribute.

Listings: cULus Listed for Wet Location. RoHS Compliant.

Warranty: ELCO Products are built to last. 5-year Limited warranty.
