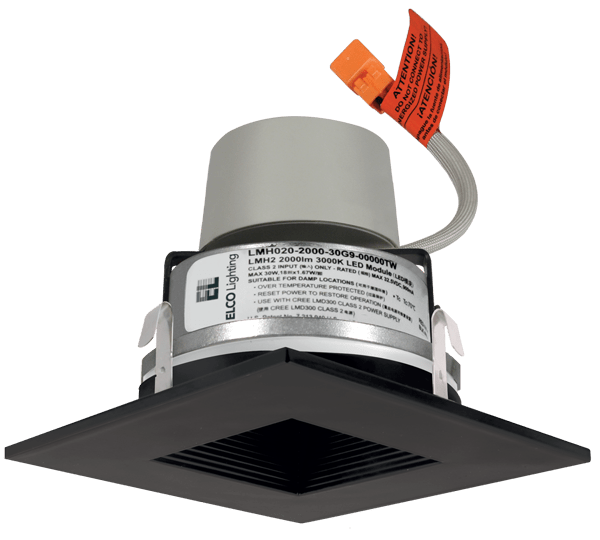

Elco Lighting E415R0830BB 4" LED Module & Driver with Square on Square Baffle Trim, 850lm, 3000K CCT, 2 Gen, Beam Angle 60° - Black Finish

The perfect lighting solution for high-end residential projects with existing housings.

Features:

Module includes LED Module Driver.
Triac/ELV dimming.
Can be used in dedicated LED housings from ELCO or
used to retrofit medium base (E26) housings.
Life span of 50,000 hours L70.
USA designed and assembled.
Limited 5 year warranty

Specifications:

Wattage 11.4W
Lumens 850 lm
Voltage 120V
Color Temp. 3000K
Dimmable Triac/ELV
Lamp Type LED
Beam Angle 60°
CRI 93+
Wet Location Listed

Optics: Frosted polycarbonate module lens diffuses light evenly throughout while reducing glare with LED technology.

Trim Construction: Reflector is two piece trim for maximum color versatility. Design allows for minimal glare and a strong glare cut-off. Trim is constructed of metal for lasting durability.

LED Technology:
Extremely accurate Color Rendering Index of 93+.
Efficacy of 97 lumens per watt.
Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing ELCO Red heat sink.
Instant On to Full Brightness technology.
No LED pixilation.

Listings:
UL Listed for Wet Location.
RoHS Compliant.
California Title 24 (JA8-2016-E).
