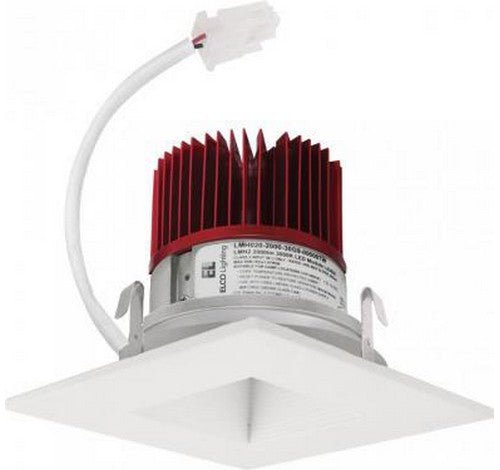

The ELCO E415C1230W2 4" LED Light Engine with Square-on-Square Baffle Trim delivers exceptional performance, architectural styling, and superior light quality for high-end residential and light commercial applications. Featuring a clean square-on-square design with a durable white finish, this integrated LED module provides a modern aesthetic while delivering smooth, uniform illumination with minimal glare.

Designed exclusively for use with ELCO 4" Cedar, System Housings, this Generation 2 LED light engine produces up to 1,250 lumens while consuming only 12.88 watts, achieving excellent energy efficiency without sacrificing light output. The frosted lens and advanced optical design ensure even light distribution and comfortable visual performance, making it ideal for kitchens, living spaces, hallways, hospitality environments, and retail applications.

With a high 93+ CRI, this fixture accurately renders colors and textures, creating vibrant and natural-looking environments. Advanced thermal management and quality LED components provide a rated life of 50,000 hours (L70), reducing maintenance and replacement costs over time.

Key Features

• 1,250 lumen output with only 12.88W power consumption
• Warm 3000K color temperature
• High 93+ CRI for superior color accuracy
• Modern square-on-square baffle trim design
• Frosted lens for smooth, even illumination
• 60° beam angle for balanced light distribution
• Triac, ELV, and 0-10V dimming compatible
• Instant-on LED technology with no visible pixelation
• Damp location rated
• Durable metal trim construction
• Designed for use with ELCO 4" Cedar, System Housings
• Rated life of 50,000 hours (L70)
• RoHS compliant
• Limited 5-year warranty
• Designed and assembled in the USA

Specifications

• Model: E415C1230W2
• Trim Style: Square-on-Square Baffle
• Finish: White
• Wattage: 12.88W
• Lumens: 1,250 lm
• Color Temperature: 3000K
• CRI: 93+
• Beam Angle: 60°
• Dimming: Triac / ELV / 0-10V
• Location Rating: Damp Location
• LED Life: 50,000 Hours (L70)

Note: Generation 2 (Gen 2) modules are not compatible with Generation 1 (Gen 1) components. Compatible ELCO Cedar, System Housing required and sold separately.

Download: Specification Sheet
