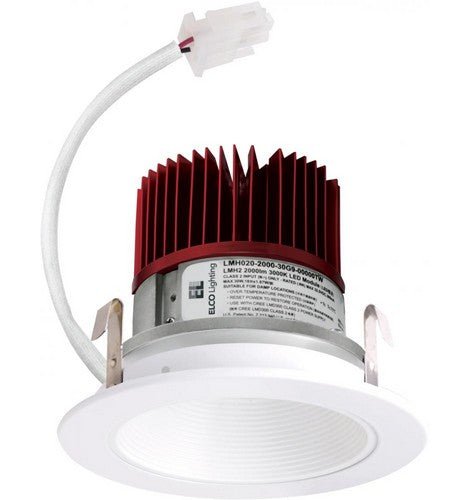

4" LED Light Engine with Baffle Trim.The perfect lighting solution for high-end residential and light commercial projects.

FEATURES:

High efficacy LED module.
Triac/ELV/0-10V dimming.
Must be used with ELCO 4" Cedar System Housings.
Frosted acrylic module lens for even lumen distribution.
Life span of 50,000 hours L70.
USA designed and assembled.
Limited 5 year warranty.

SPECIFICATIONS :

Wattage 8.76W - 18W
Lumens 1600 lm
Color Temp. 3500
Lamp Type LED
Beam Angle 60°
CRI 93+
Damp LocationListed

Optics

Frosted polycarbonate module lens diffuses light evenly throughout while reducing glare with LED
technology.

Trim Construction

Reflector is two piece trim for maximum color versatility. Design allows for minimal glare
and a strong glare cut-off. Trim is constructed of metal for lasting durability.

Installation

Must be installed on a Cedar System housing with compatible lumen rating. Frames are available for New Construction and Remodel as IC or non-IC.

LED Technology

Extremely accurate Color Rendering Index of 93+.
Efficacy of 97 lumens per watt.
Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing ELCO Red heat sink.
Instant On to Full Brightness technology.
No LED pixilation.

Listings

UL Listed for Wet Location.
RoHS Compliant.
ENERGY STAR® Certified.
