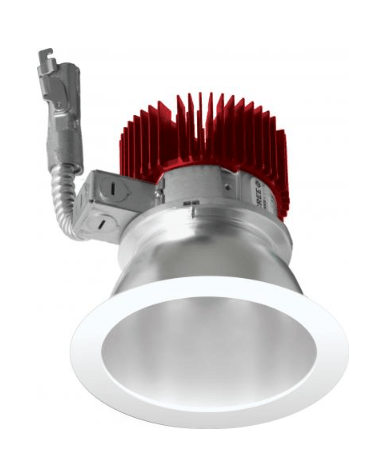

Elco Lighting E410L16SDW-S 4" Reflector LED Light Engine Trims, 18W, Sunset, 1600lm, Beam Angle 15°, Dimming 0-10V/Triac/ELV (1% Dimming) - White Finish

Elco Lighting 4" Reflector LED Light Engine Trims, Wattage 18W, Color Temperature Sunset, Lumens 1600 lm, Beam Angle 15°, Dimming 0-10V/Triac/ELV (1% Dimming), All White

Specifications:

Wattage 18W
Lumens 1600 lm
Color Temp. Sunset
Dimmable 0-10V/Triac/ELV (1% Dimming)
Lamp Type LED
Beam Angle 15°
CRI 93+
Wet Location Listed

Features:

USA Designed and Assembled.
Frame sold separately (see Compatible Housings).
2 at the end of the item number denotes Generation 2. Please note Gen 2 and Gen 1 are not cross compatible.

Technical Details:

Optics: Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED technology.

Reflector Construction: Reflector is one piece, deep, self-flanged construction spun from .05� thick High Grade Aluminum. Reflector allows for minimal glare and a strong glare cut-off.

Installation: Must be installed on a Laurel System frame with compatible lumen rating. Frames are available for New Construction, Remodel and as a Retrofit Kit.

Dimmability: Depending on driver used. It can dim to 1% with 3-in-1 driver: Triac, ELV and 0-10V

LED Technology:
Extremely accurate Color Rendering Index of 93+ CRI.
Efficacy of >90 lumens per watt.
Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing ELCO Red heat sink.
Instant On to Full Brightness technology.
No LED pixilation.

Sunset: Sunset color temperature is our dim-to-warm LED technology that allows the color temperature to become warmer as the product is dimmed. Our SUNSET items start at 3000K and go as low as 1800K when dimmed. For Sunset dim technology be sure to order an item with "Sunset" in the Color Temperature (CCT) attribute.

Listings: cULus Listed for Wet Location. RoHS Compliant.
