Elco Lighting E410C1635W2 4"es LED Light Engine with Reflector Trim, 3500K - White Finish

The perfect lighting solution for high-end residential and light commercial projects.

Features:

• High efficacy LED module.

• Triac/ELV/0-10V dimming.

• Must be used with ELCO 4" Cedarž¢ System Housings.

• Frosted acrylic module lens for even lumen distribution.

• Life span of 50,000 hours L70.

• USA designed and assembled.

• Limited 5 year warranty.

• 2 at the end of the item number denotes Generation 2.

• Please note Gen 2 and Gen 1 are not cross compatible.

Specifications:

• Wattage 18W

• Lumens 1600 lm

• Color Temp. 3500K

• Lamp Type LED

• Beam Angle 60°

• CRI 93+

• Damp LocationListed

Optics: Frosted polycarbonate module lens diffuses light evenly throughout while reducing glare with LED technology.

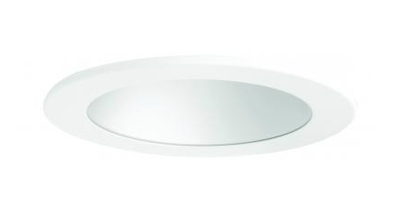

Trim Construction: Reflector is two piece trim for maximum color versatility. Design allows for minimal glare and a strong glare cut-off. Trim is constructed of metal for lasting durability.

Installation: Must be installed on a Cedarž¢ System housing with compatible lumen rating. Frames are available for New Construction and Remodel as IC or non-IC.

LED Technology:
Extremely accurate Color Rendering Index of 93+.
Efficacy of 97 lumens per watt.
Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing ELCO Red heat sink.
Instant On to Full Brightness technology.
No LED pixilation.

Listings:
UL Listed for Wet Location.
RoHS Compliant.

Download PDF File

Specification
