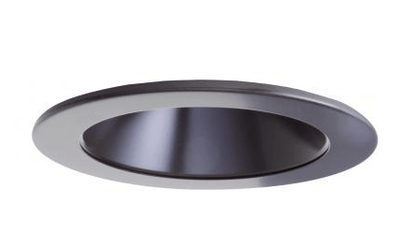

Elco Lighting E410C1635BZ2 4" LED Light Engine with Reflector Trim, 18W, 3500K, 1600lm, Beam Angle 60° - Bronze Finish

The perfect lighting solution for high-end residential and light commercial projects.

Specifications:

Wattage 18W
Lumens 1600 lm
Color Temp. 3500K
Lamp Type LED
Beam Angle 60°
CRI 93+
Wet Location Listed

Features:

High efficacy LED module.
Triac/ELV/0-10V dimming.
Must be used with ELCO 4" Cedar System Housings.
Frosted acrylic module lens for even lumen distribution.
Life span of 50,000 hours L70.
USA designed and assembled.
Limited 5 year warranty.
2 at the end of the item number denotes Generation 2.
Please note Gen 2 and Gen 1 are not cross compatible.

Technical Details:

Optics: Frosted polycarbonate module lens diffuses light evenly throughout while reducing glare with LED technology.

Trim Construction: Reflector is two piece trim for maximum color versatility. Design allows for minimal glare and a strong glare cut-off. Trim is constructed of metal for lasting durability.

Installation: Must be installed on a Cedar System housing with compatible lumen rating. Frames are available for New Construction and Remodel as IC or non-IC.

LED Technology:
Extremely accurate Color Rendering Index of 93+.
Efficacy of 97 lumens per watt.
Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results.

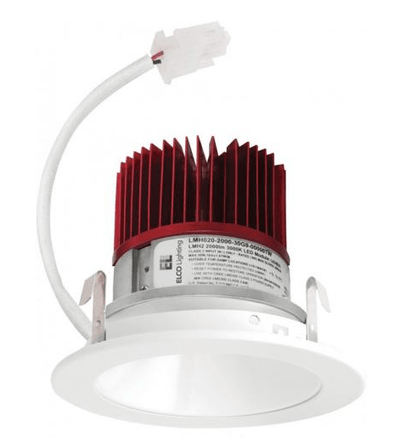

Superior Thermal Management by utilizing ELCO Red heat sink.
Instant On to Full Brightness technology.
No LED pixilation.

Sunset: Sunset color temperature is our dim-to-warm LED technology that allows the color temperature to become warmer as the product is dimmed. Our SUNSET items start at 3000K and go as low as 1800K when dimmed. For Sunset dim technology be sure to order an item with "Sunset" in the Color Temperature (CCT) attribute.

Listings: cUL Listed for Wet Location. RoHS Compliant.
