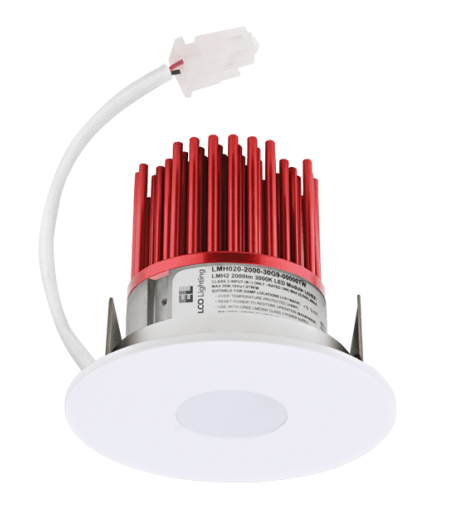

Elco Lighting E329C1030W2 3" LED Light Engine with Pinhole Trim 11W, 3000K, 1000lm, Beam Angle 60° - White Finish

Elco Lighting 3" LED Light Engine with Pinhole Trim, Wattage 11W, Color Temperature 3000K, Lumens 1000 lm, Beam Angle 60°, All White

FEATURES:

High efficacy LED module.
Triac/ELV/0-10V dimming.
Must be used with ELCO 3" Cedar System Housings.
Frosted acrylic module lens for even lumen distribution.
Life span of 50,000 hours L70.
USA designed and assembled.
Limited 5 year warranty.
2 at the end of the item number denotes Generation 2. Please note Gen 2 and Gen 1 are not cross compatible.

SPECIFICATIONS :

Wattage 11W
Lumens 1000 lm
Color Temp. 3000K
Lamp Type LED
Beam Angle 60°
CRI 93+
Damp Location Listed

Technical Details:

Optics: Frosted polycarbonate module lens diffuses light evenly throughout while reducing glare with LED technology.

Trim Construction: Reflector is two piece trim for maximum color versatility. Design allows for minimal glare and a strong glare cut-off. Trim is constructed of metal for lasting durability.

Installation: Must be installed on a Cedar System housing with compatible lumen rating.

LED Technology

Extremely accurate Color Rendering Index of 93+.
Efficacy of 97 lumens per watt.
Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing ELCO Red heat sink.
Instant On to Full Brightness technology.
No LED pixilation.

Listings

UL Listed for Wet Location.
RoHS Compliant.
ENERGY STAR® Certified.
