ELCO Lighting E2LRC106 9W 2" Non-IC Airtight Remodel Housing - Black Finish

Features:

• Height allows for use in 2x4 construction.

• Flexi-joint allows for easy installation and solid support.

• Driver included on housing.

• LED Light Engine sold separately.

• U.S. Patent 10,281,131


SPECIFICATIONS :

• Wattage 9W

• Voltage 120V

• Dimmable Triac/ELV

• Wet Location Listed

Construction:

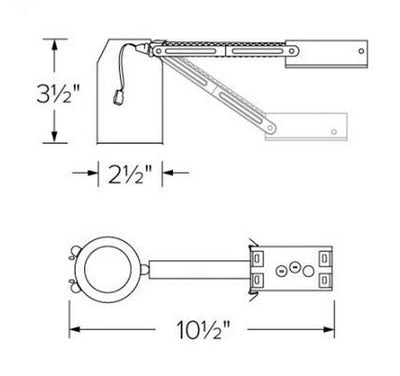

Housing adjusts to accommodate up to 1 1/4" ceiling thickness.
Aluminum housing for greater heat dissipation.
Driver mounted on junction box for cooler LED operation.

Installation: Designed for shallow ceiling plenums where 2x4 joists or taller are used. Maximum hole cutout is 2 5/8. Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Electrical: Driver connects to 120V power supply. High Efficiency driver with a power factor > 0.9.

Dimmability: Works with 120V Triac and ELV type dimmers . Dims down to 10%. For full list of dimmers refer to the Dimmer Compatibility List.

Warranty: ELCO Products are built to last with a 5-year Limited warranty.

Labels and Listings:
UL Listed for Wet Location.
UL Listed for Feed Through.
Meets restricted airflow requirements (per ASTM E-283).
