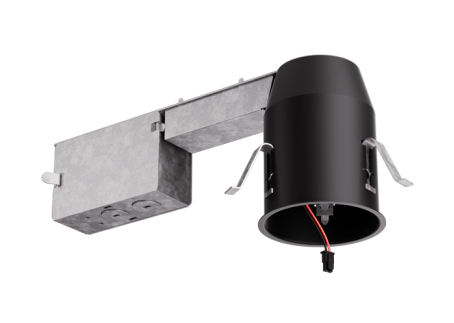

Elco Lighting E2LK57RICA 2" IC Airtight Remodel Housing for Koto Architectural LED Light Engine, 120V, Triac/ELV - Black Finish

Elco Lighting 2" IC Airtight Remodel Housing for Kotož¢ Architectural LED Light Engine, 120V, Triac/ELV

Features:

• IC Airtight for direct contact with insulation.

• Kotož¢ Architectural Housing: 120V Triac/ELV.

• Must be used with Architectural Kotož¢ LED Light Engines (ELK19 or ELK21 Series).

• Lumen output based on module.

Technical Details:

Lamp: Designed for use with ELCO Architectural Kotož¢ LED Light Engines (ELK19 or ELK21 Series)

Construction:
‚¬¢ IC Rated for direct contact with insulation, for use in IC or Non-IC conditions.
‚¬¢ Housing accommodates up to 1 1/2" ceiling thickness.
‚¬¢ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. Maximum hole cutout is 3
1/4". See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four
3/4" knockouts. Pry-out knockout slots. 4 Romex pryouts with strain relief.

Electrical: Input Voltage: 120V. High efficiency driver with power factor >0.9

Dimmability: Triac/ELV
