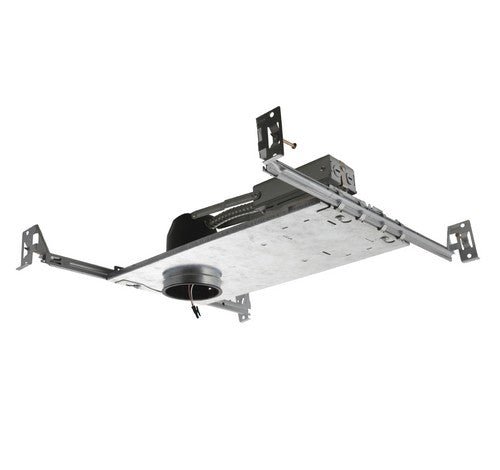

ELCO Lighting E2LC185ICA 11W 2" IC Airtight HIGHTECH Housings 120V

Features:

Single Wall IC listed for direct contact with insulation.
Triac/ELV/0-10V (120-277V), Triac/ELV (120V only).
Height allows for use in 2x4 construction.
Driver included on housing.
CA Title 24 compliant (JA8-2016-E).
LED Light Engine sold separately.
U.S. Patent 10,281,131.

SPECIFICATIONS :

• Wattage 11W

• Voltage 120/277V or 120V

• Dimmable Triac/ELV/0-10V,

• Triac/ELV

• Wet Location Listed

Construction:
IC Rated for Direct Contact with Insulation, for use in IC and Non-IC conditions.

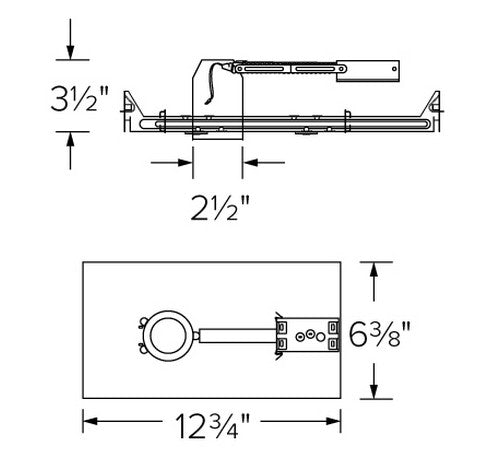

Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Aluminum housing for greater heat dissipation. Stamped galvanized steel frame.
Driver mounted on junction box for cooler LED operation.

Installation: Designed for shallow ceiling plenums where 2x4 joists or taller are used. High strength hanger bars can easily be nailed to joists. Maximum hole cutout is 2 5/8‚¬�. Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Two 1/4‚¬� trade size pry-out knockouts with conduit fitting. Strain clamps to install or remove covers for easy access and grounding.

Hanger Bars: Pre-installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.

Electrical: Driver connects to 120V only or 120/277V power supply. High Efficiency driver with a power factor > 0.9.

Dimmability: Works with 120V Triac and ELV type dimmers, and 120-277V 0-10V dimming. Dims down to 10%. For full list of dimmers refer to the Dimmer Compatibility List.

Warranty: ELCO Products are built to last with a 5-year Limited warranty.

Labels and Listings:
UL Listed for Wet Location.
UL Listed for Feed Through.
Meets restricted airflow requirements (per ASTM E-283).
ENERGY STAR® Certified.
California Title 24 (JA8-2016-E).
