ELCO Lighting E2LC106ICA 9W 2" IC Airtight New Construction Housing - White Finish

Features:

• Double Wall IC rated for use in insulated ceilings.

• Height allows for use in 2x6 construction.

• Driver included on housing.

• CA Title 24 compliant (JA8-2016-E).

• LED Light Engine sold separately.

• U.S. Patent 10,281,131


SPECIFICATIONS :

• Wattage 9W

• Voltage 120V

• Dimmable Triac/ELV

• Wet Location Listed

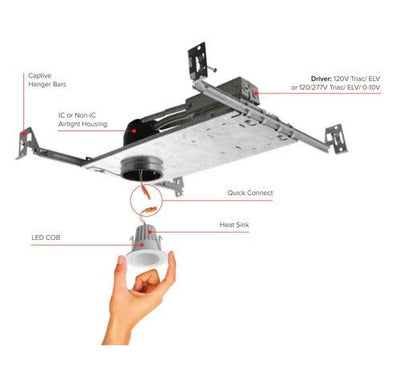

Construction
IC Rated for Direct Contact with R60 spray insulation, for use in IC and non-IC conditions.
Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness. Aluminum housing for greater heat dissipation. Stamped galvanized steel frame. Driver mounted on junction box for cooler LED operation.

Installation

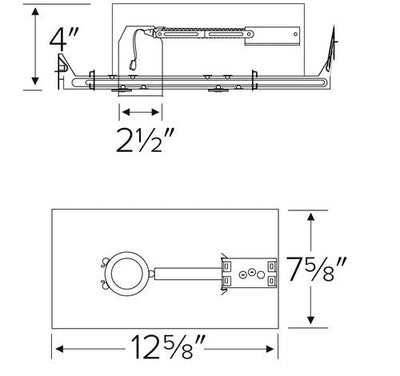

Designed for shallow ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can easily be nailed to joists. Maximum hole cutout is 2 5/8. Suitable for T grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box
Positioned to accommodate straight conduit runs. Three 1/2" trade size pry-out knockouts, One 3/4 knockout, One 1/4" knockout. Four Romex pry-outs with strain relief for easy romex installation. Strain clamps to install or remove covers for easy access and grounding.

Hanger Bars
Pre-installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.

Electrical
Driver connects to 120V power supply. High Efficiency driver with a power factor > 0.9.

Dimmability
Works with 120V Triac and ELV type dimmers . Dims down to 10%. For full list of dimmers refer to the Dimmer Compatibility List.

Warranty: ELCO Products are built to last with a 5-year Limited warranty.

Listings
UL Listed for Wet Location.
UL Listed for Direct Contact with Insulation and Combustible Material.
UL Listed for Feed Through.
Meets restricted airflow requirements (per ASTM E-283).
ENERGY STAR® Certified.
California Title 24 (JA8-2016-E).
