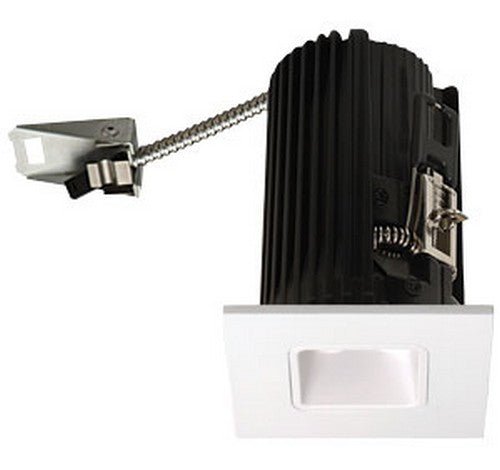

ELCO Lighting E2L13F30W Teak System Contemporary White LED 2" Recessed Lighting Square Reflector 120V 3000K - Black Finish

Features:

• Wet Location Rated for Indoor and Outdoor Use (Under covered ceilings)

• Same LED light engine for 850 and 1100 lumens (see housings)

• UL Listed for Direct Contact with insulation

• Standard with 38° beam. Field Changeable optics for 28° (EP716C) and 60° (EP718C)

• CAT24, JA8-2016-E and Energy Star Listed

• Life Span 50,000 Hours L70

• U.S. Pat. 10,125,959


SPECIFICATIONS :

• Wattage 8.6 - 10.5W

• Lumens 850 - 1100 lm

• Color Temp. 2700K - 4000K

• Lamp Type LED

• Beam Angle 38°

• CRI 93+

• Wet Location Listed

Optics: Standard with 38° beam. Field changeable optics for 28° (EP716C) and 60° (EP718C)

Construction: Diecast construction for lasting quality and greater heat dissipation. High quality powder coat finish preventing rust and paint cracking.

Installation: All Teakž¢ LED Light Engines feature a trigger release clip that will depress as the module is being inserted, holding the module in place. Hole cutout size: 2-5/8" (68 mm)

LED Technology:
Extremely accurate color rendering with 93+ CRI.
Efficacy of max. 97 lumens per watt.
Lumen Maintenance of 50,000 hours L70 based on LM80 standardized test results.
Superior Thermal Management by utilizing aluminum body as heat sink.

Electrical: Low voltage input. Requires compatible power supply.

Dimming: Works with Triac/ELV type dimmers when powered by 120V driver. Works with 0-10V/Triac/ELV dimmers when powered by 120/277V driver.

Listings: UL Listed for Wet Location. UL Listed for Direct Contact with insulation. ENERGY STAR® Listed.
California Title 24 (JA8-2016-E).

Warranty: ELCO Products are built to last with a 5-year Limited warranty.
