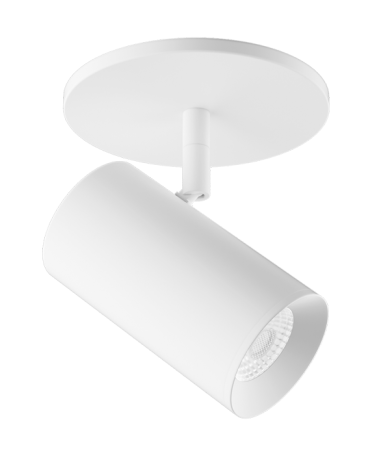

Elco Lighting E25MW-0327 2" Koto Sylo Monopoint, 2700K, 350lm, Beam Angle 38° - White Finish

Elco Lighting 2‚¬³ Koto Sylož¢ Monopoint, Color Temperature 2700K, Lumens 350 lm, Beam Angle 38°, All White

SPECIFICATIONS:

• Wattage 5W

• Lumens 350 lm

• Voltage 120V

• Color Temp. 2700K

• Dimmable Triac/ELV

• Lamp Type LED

• Beam Angle 38°

• CRI 95

• Damp Location UL Listed


FEATURES:

Modern Die-Cast aluminum fixture for easy maintenance and upgrades
Standard Fixtures or Fixtures with Stems (12", 24", 36", and 48") available
Includes Standard 38º lens, with 28º and 60º lenses. Optional: 15º and 18º lenses available
Fits 3 ½‚¬³ and 4‚¬³ Octagon and Round Junction boxes
Sunset option dims from 3000K to 1800K
Human Centric option dims from 4000K to 2700K
90° tilt, 358° rotation
Energy Star Certified. Title 24 JA8-2022 Compliant
Life span of 50,000 hours L70
120V Triac/ELV with standard module options (-03, -07, -08, -09, -10 -11 series)
120/277V, 0-10V/Triac/ELV with DX module (-10DX series)

Technical Details:

Optics: Polycarbonate module lens diffuses light evenly throughout while reducing glare with LED technology.

Construction: Integrated driver and light engine with quick connect. Diecast aluminum body with heat fins allows for efficient cooling.

Installation: Twist-lock design for toolless trim installation, for use with Koto Sylož¢ products only.

Electrical: Module connects to 120 power supply. High-efficiency driver with a power factor >0.9. Start time of less than 0.75 seconds.

LED Technology: Extremely accurate Color Rendering Index of 95+. Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results. Superior Thermal Management by utilizing integrated heat sink. Instant On to Full Brightness technology. No LED pixelation.
