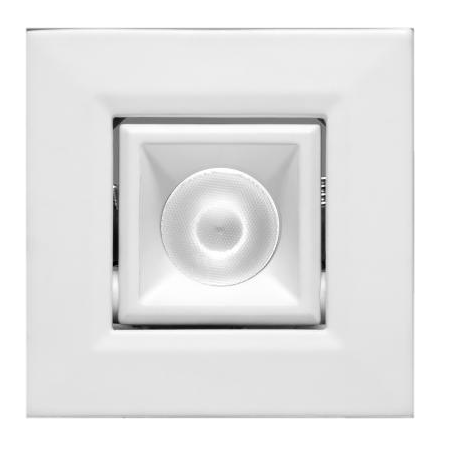

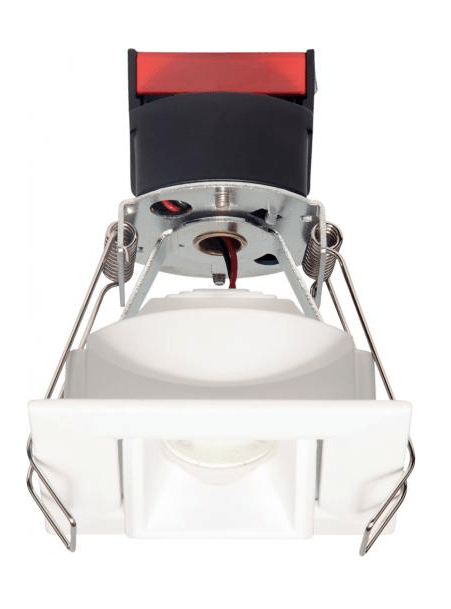

Elco Lighting E1L22WF27W 1" Square Recessed Oak Pull Down, Beam Angle 50° - White Finish

Elco Lighting 1" Square Recessed Oakž¢ Pull Down, Beam Angle 50°, Color Temperature 2700K, All White

SPECIFICATIONS:

• Wattage 6.1W

• Lumens 625 lm

• Voltage 12V AC

• Color Temp. 2700K

• Dimmable Yes

• Lamp Type LED

• Beam Angle 50°


FEATURES:

Requires 12V AC transformer. Dimmable ELV, MLV or 0-10V depending on transformer used.
IC for use with direct contact to insulation
Height allows for use in ceilings with under 4" depth. Ceiling thickness can be reduced from fixture depth.
Daisy chain up to 6 fixtures with E1LDRV60
28°, 38° and 50° beam options, not recommended for in field changes.
Remodel requires no frame. New construction
E1LF2 frame available.
UL Damp Location Rated
UL Listed, Meets California Title 24 JA8-2016-E and
Energy Star standards.
Life Span 50,000 Hours L70

Download PDF File

Specification
