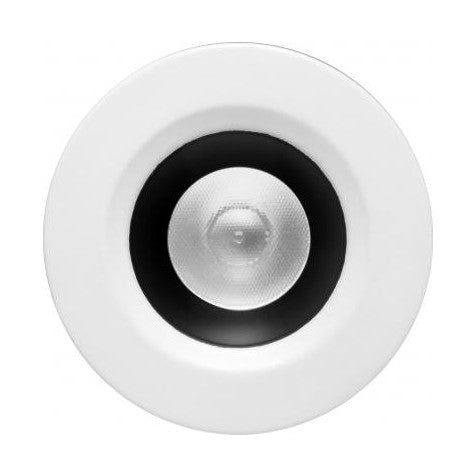

Elco Lighting E1L02WF27B 1'' Oak Recessed Downlight, Round Style, 50° Beam Angle, Black With White Trim Finish

Small aperture 12V AC Downlight delivers over 600 lumens. More than a traditional 50W MR16 Halogen Lamp. Requires 12V AC Transformer (daisy chain up to 6). Dimmable ELV, MLV or 0-10V depending on transformer
used.

SPECIFICATIONS:

• Wattage 6.1W

• Lumens 600 lm

• Voltage 12V AC

• Color Temp. 2700K

• Dimmable Yes

• Lamp Type LED

• Beam Angle 50°

• CRI 93+

• Wet Location UL Listed


FEATURES:

Requires 12V AC transformer. Dimmable ELV, MLV or
0-10V depending on transformer used.
IC Airtight for use with direct contact to insulation
Height allows for use in ceilings with under 3" depth.
Ceiling thickness can be reduced from fixture depth.
Daisy chain up to 6 fixtures with E1LDRV60
38° Standard beam with optional 28° and 50°
Remodel requires no frame. New construction E1LF1
frame available.
Wet Location Rated for Indoor and Outdoor Use
JA8-2016-E & UL listed.
Life Span 50,000 Hours L70

Download PDF File

Specification
