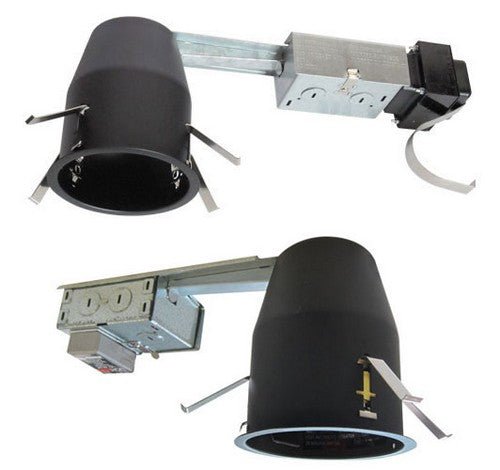

ELCO Lighting E1499LDRICEA 12W 4" Remodel Housing with Electronic Transformer - Black Finish

4" remodel housing with a magnetic or electronic transformer. Uses a GU5.3 Bi-Pin socket for use with Bi-Pin LED MR16 lamps.

FEATURES :

• Single wall IC remodel construction, for use in insulated or non-insulated ceilings.

• Flicker Free LED Dimming.

• Lamp: 12V, MR16 GU/GX5.3 bi-pin LED (not included).

• Lamp Holder: MR16 GU/GX5.3 bi-pin socket.

• Trims sold separately.


Construction:
Remodel IC airtight housing rated for direct contact with insulation, for use in IC or non-IC conditions.
Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Steel housing for greater heat dissipation.

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. Maximum hole cutout is 4 1/4". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Electrical:
Input Voltage: 120V AC.
Output Voltage: 12V AC.
Magnetic or electronic transformer available.
Thermally protected against improper lamping.

Trims: Compatible with ELCO 4" MR16 trims.

Dimmability:
Magnetic transformer dims with MLV type dimmers.
Electronic transformer dims with ELV type dimmers.
Dimmability based on lamp.

Lamp: Designed for use with GU5.3 MR16 LED lamps.

Labels and Listings:
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
UL Listed for Direct Contact with Insulation and Combustible Material.
Airtight per ASTM E-283.
Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.

SPECIFICATIONS :

• Wattage : 12W

• Voltage : 120V

• Lamp Type : GU5.3 BiPin

• Wet Location : Listed with wet location trims

• Damp Location : Listed
