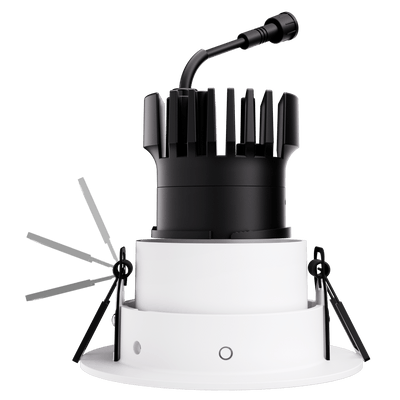

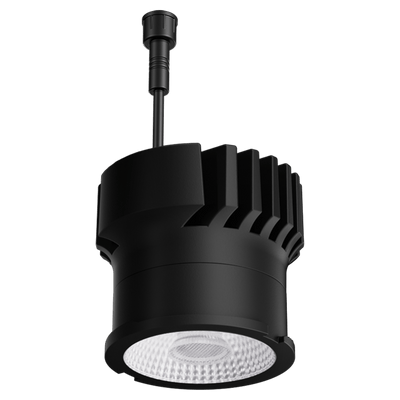

Elco Canless Koto LED Module - 2700K - 4000K, 950 Lumens

Elco LightingSKU: EKCL2127D

Color Temperature: 2700K
Price:
Sale price$44.91

Shipping calculated at checkout

Stock:
In stock

Description

Designed to be installed without a recessed housing. Works with New Construction Frames or Remodel Power Packs and Koto Twist-On Trims.

Overview

  • IC Rated for direct contact with insulation
  • Canless Module works with Koto frames and power packs
  • Driver specified for 120V (Triac/ELV) or 120/277V (0-10V/Triac/ELV) dimming
  • Works in 2, 3, 4 and 6 Canless Koto twist-on trims

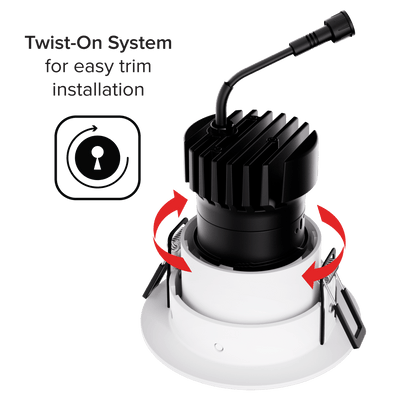

  • Push-&-Twist connector on module for easy installation
  • Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C)
  • Optional: Hex Louver (L45 & L57), Linear Lens (L46), Spread Lens (L47), Frosted Lens (L49), Color Shifter (L51), Optic Lens (L52 & L53), Snoots (L50)
  • Excellent color rendering 95+ CRI
  • Offered in 2700K, 3000K, 3500K, 4000K & Sunset Dimming (Dims from 3000K to 1800K)
  • Title 24 JA8-2022 Compliant
  • Life span of 50,000 hours L70
  • Covered by U.S. PATENTS and Patents Pending

Product Features

  • Driver on housing extends lifespan and allows for more dimming options and applications
  • Includes Standard 38º lens, with 28º and 60º lenses. Optional: 15º and 18º lens available
  • Works in 3 and 4 ELCO Tunable White housings with Koto twist-On trims
  • Excellent color rendering 95+ CRI throughout  white tuning
  • Title 24 JA8 2019 Registered
  • Life span of 50,000 hours L70

Specifications

  • Lumens: Up to 950
  • Color Temp.: 2700K - 4000K, Sunse
  • Lamp Type: LED
  • Beam Angle: 38º
  • CRI: 95
  • Wet Location: UL Listed w/Wet Location Trims
  • Damp Location: UL Listed

Resources & Downloads

Product SKU

Catalog Number Lamp type CCT Lumens Beam Angle Spec
EKCL2127D LED 2700K Up to 950 lm 38°
EKCL2130D LED 3000K Up to 950 lm 38°
EKCL2135D LED 3500K Up to 950 lm 38°
EKCL2140D LED 4000K Up to 950 lm 38°
EKCL21SDD LED Sunset  Up to 950 lm 38°
