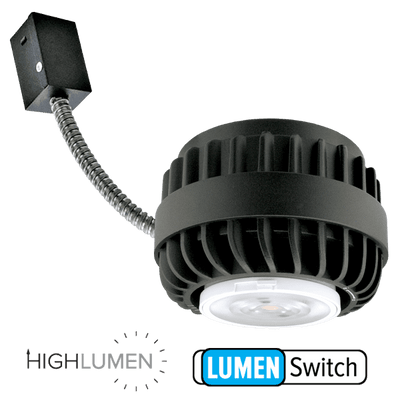

Description
13W / 20W / 35W, 3000K - 4000K, 1250 lm / 2000 lm / 3000 lm

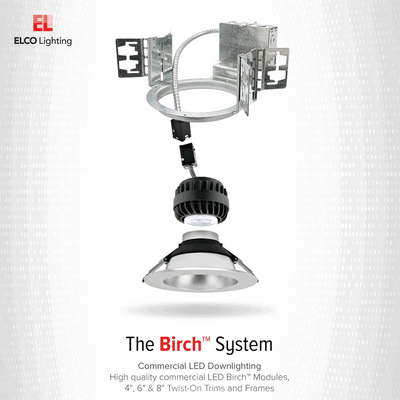

The beautifully designed die-cast module houses powerful and advanced LED technology to provide increased durability and outstanding illumination. Works with 4", 6" & 8" Birch Commercial Frames, Remodel, Retrofits and Twist-On Trims.
Product Features
- Non-IC for use in Non-IC applications

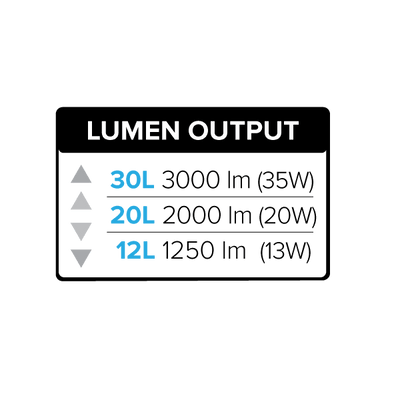

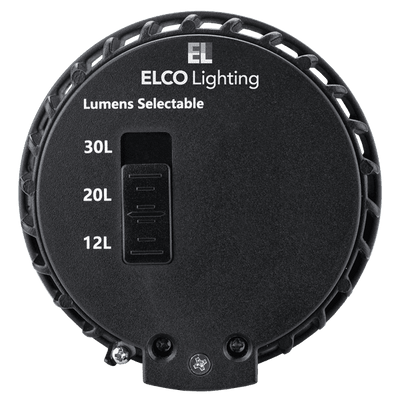

- Select Lumen Output (1250 lm to 3000 lm) by using manual switch on module

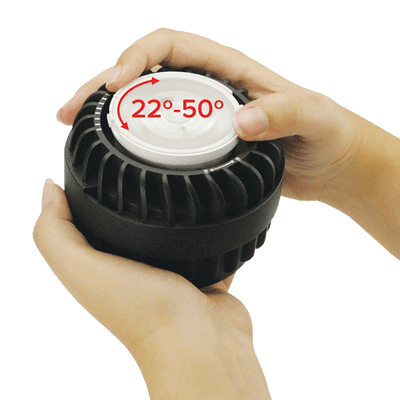

- Adjustable Focus Beam Angle allows for manual beam angle adjustment from 22˚ to 50˚ range with the ease of a twist

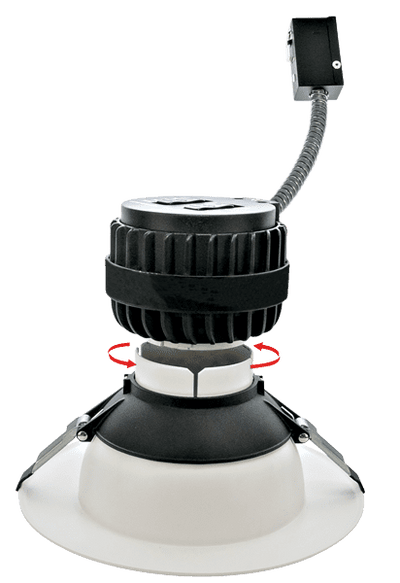

- Featured Twist-On mechanism to easily locked module to any size trim

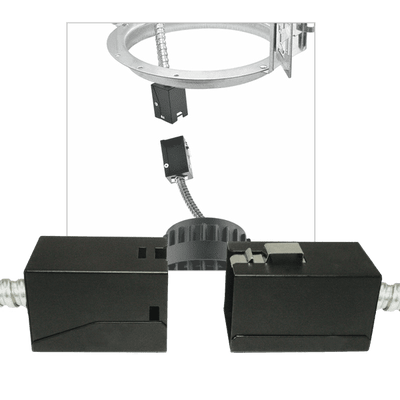

- Encased Quick Connector for easy module installation
- Works in 4", 6", and 8" Commercial Frames, Remodel and Retrofit applications
- 120/277V input with 0-10V dimming
- Excellent color rendering 93+ CRI.
- ETL listed for damp location
- Life span of 50,000 hours L70
Specifications
- Wattage: 13W / 20W / 35W
- Lumens: 1250 lm / 2000 lm / 3000 lm
- Voltage: 120/277V
- Color Temp.: 3000K, 3500K or 4000K
- Dimmable: 0-10V
- Lamp Type: LED
- Beam Angle: 22˚ to 50˚
- CRI: 93+
- Damp Location: Listed
Catalog Number | Lamp type | Wattage | CCT | Lumens | Voltage | Dimming | Beam Angle |
---|---|---|---|---|---|---|---|
ELB30R30 | LED | 13W / 20W / 35W | 3000K | 1250 lm / 2000 lm / 3000 lm | 120/277V | 0-10V | 22˚ to 50˚ |
ELB30R35 | LED | 13W / 20W / 35W | 3500K | 1250 lm / 2000 lm / 3000 lm | 120/277V | 0-10V | 22˚ to 50˚ |
ELB30R40 | LED | 13W / 20W / 35W | 4000K | 1250 lm / 2000 lm / 3000 lm | 120/277V | 0-10V | 22˚ to 50˚ |
