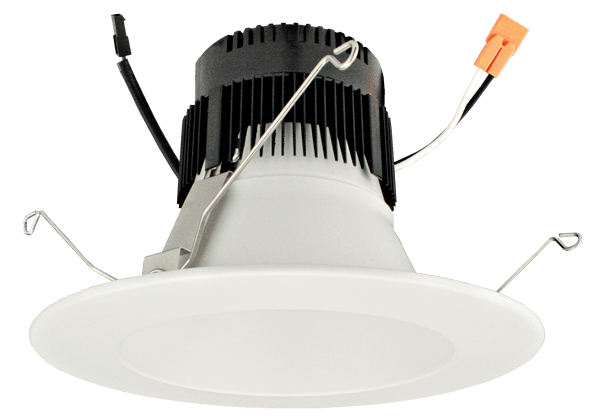

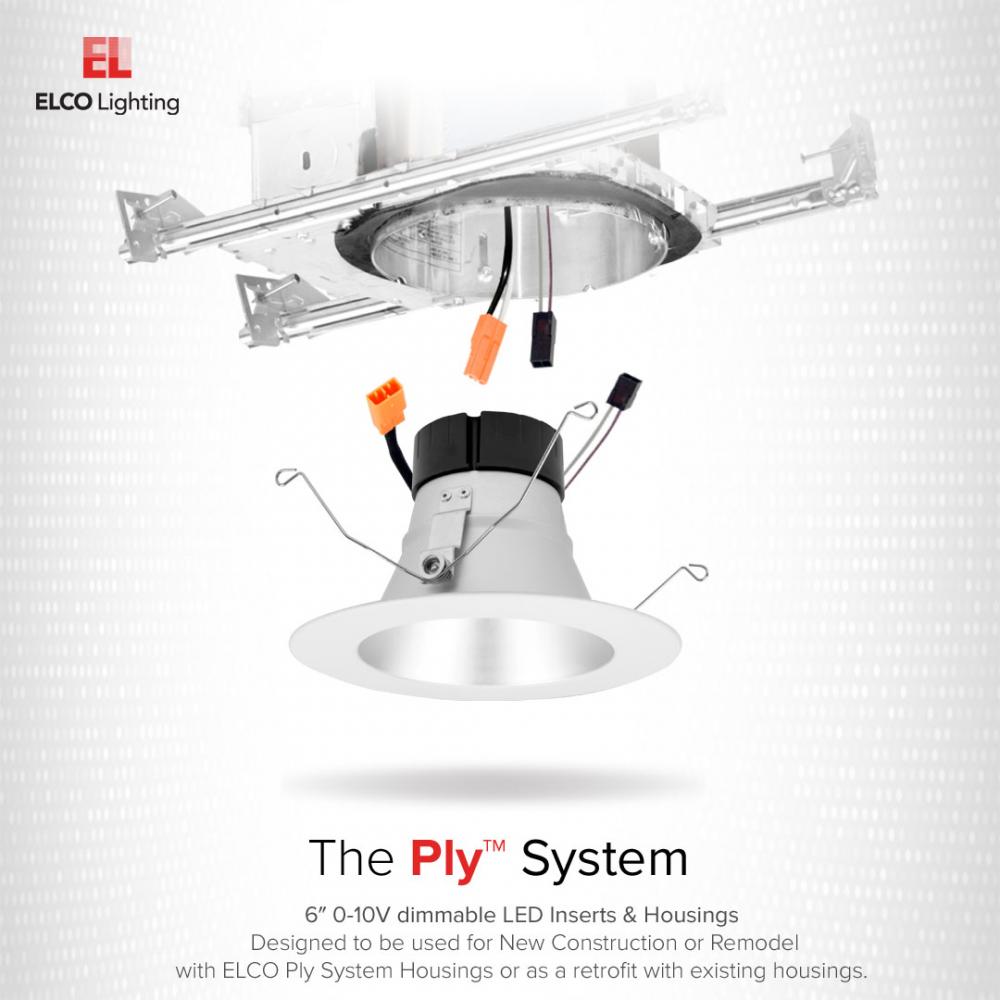

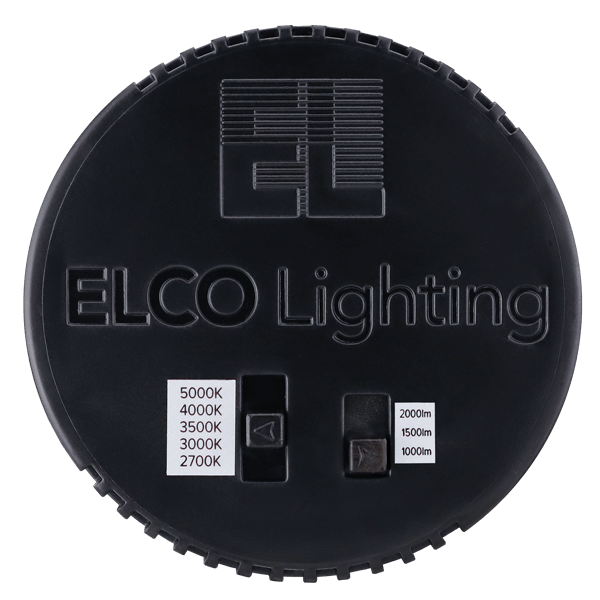

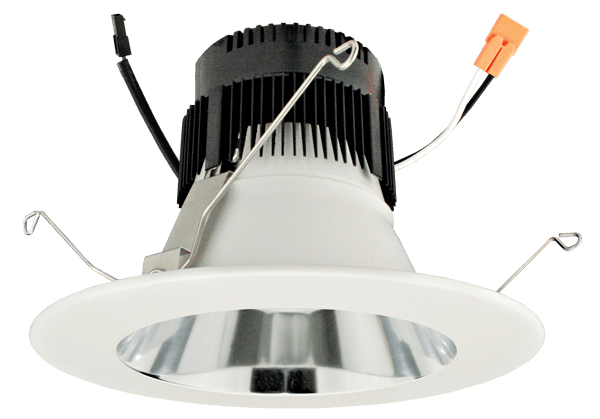

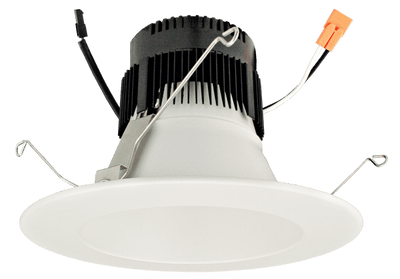

This unique Ply System 0-10V dimmable LED Insert gives you the options you are looking for in one fixture. Engineered with energy-efficient LED technology and with a 120/277V 0-10V dimmable driver for a budget friendly 0-10V solution. Switch to desired Color Temperature (2700K, 3000K, 3500K, 4000K or 5000K) and Lumen Output (1000 lm, 1500 lm, 2000 lm) by using manual switch located on module. Designed to be used for New Construction, Remodel with ELCO Ply System Housings or as a retrofit with existing housings.
Product Features

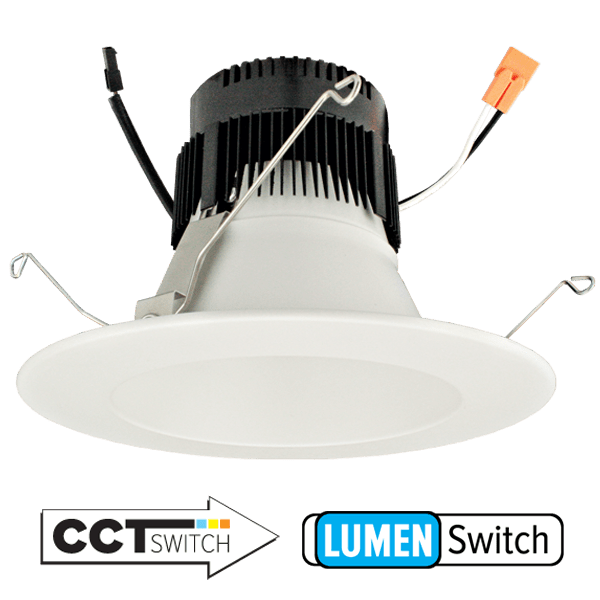

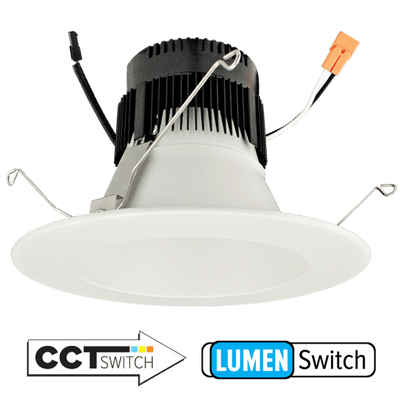

Manual switch to choose desired Color Temperature and Lumen Output
0-10V Dimmable
120/277V Driver
Soft white lens provides smooth lumen distribution and eliminates LED pixelation
Deep set LED trim reduces glare while providing even illumination
90+ CRI for extremely accurate color rendering
CA Title 24, ETL listed, ENERGY STAR, JA8-2016-E
Life span of 50,000 hours L70
Patent Pending
Specifications
Wattage: 13, 19, 24W
Lumens: 1000, 1500, 2000 lm
Voltage: 120/277V

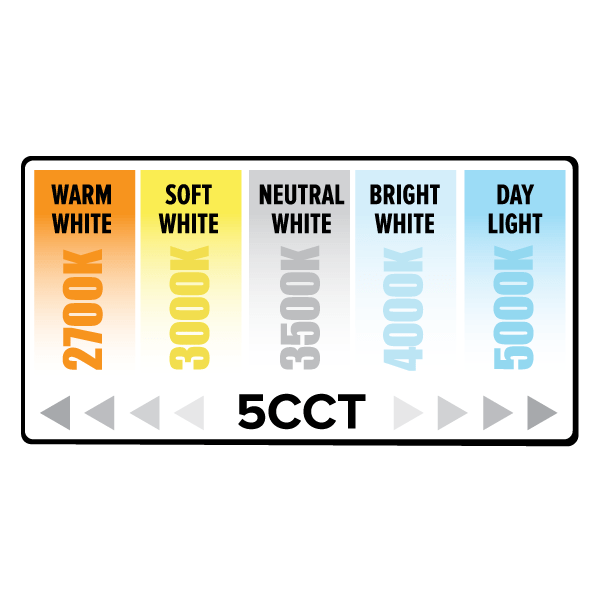

Color Temp.: 2700K, 3000K, 3500K, 4000K, 5000K
Dimmable: 0-10V
Lamp Type: LED
CRI: 90+
Wet Location: Listed
Catalog Number
Lamp type
Wattage
CCT
Lumens
Voltage
Dimming
Finish
EL685CT5DW
LED
13, 19, 24W
2700K, 3000K, 3500K, 4000K, 5000K
1000, 1500, 2000 lm
120/277V
0-10V
White

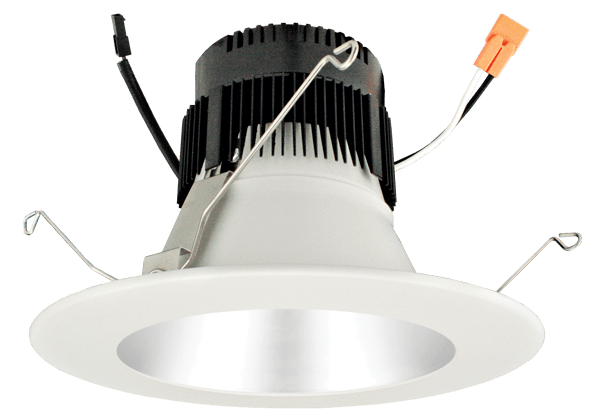

EL685CT5DHW
LED
13, 19, 24W
2700K, 3000K, 3500K, 4000K, 5000K
1000, 1500, 2000 lm
120/277V
0-10V
Haze/White Ring
EL685CT5DCW
LED
13, 19, 24W
2700K, 3000K, 3500K, 4000K, 5000K
1000, 1500, 2000 lm
120/277V
0-10V
Chrome/White Ring

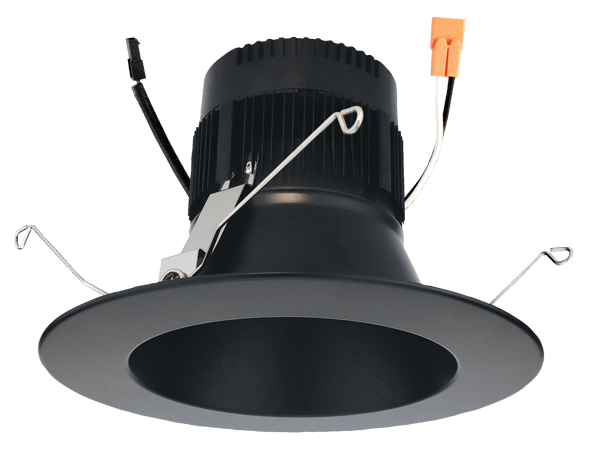

EL685CT5DBB
LED
13, 19, 24W
2700K, 3000K, 3500K, 4000K, 5000K
1000, 1500, 2000 lm
120/277V
0-10V

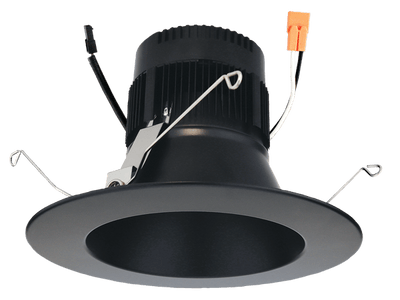

All Black
