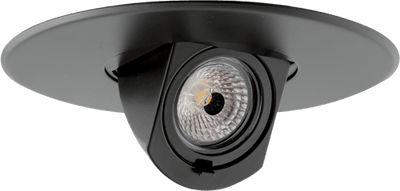

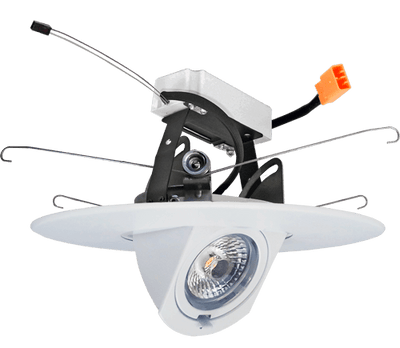

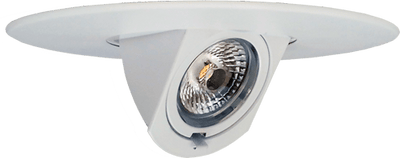

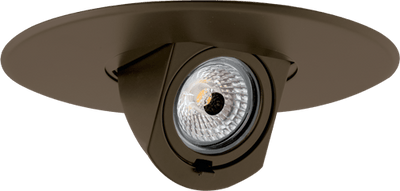

The Ply System 0-10V dimmable LED Inserts are engineered with energy-efficient LED technology and with a 120/277V 0-10V dimmable driver for a budget friendly 0-10V solution. Designed to be used for New Construction, Remodel with ELCO Ply System Housings or as a retrofit with existing housings.
Product Features
0-10V/ Triac/ELV Dimmable
120/277V Driver
Interchangeable lens available for multiple beam angles. 36 Standard, 20 (EP710C)
and 60 (EP712C) optional
Adjustability of 65 tilt and 356 rotation
93+ CRI for extremely accurate color rendering
CA Title 24, UL listed, ENERGY STAR, JA8-2016-E
Life span of 50,000 hours L70
Specifications
Wattage: 12.6W
Lumens: 850 lm - 900 lm
Voltage: 120/277V
Color Temp.: 2700K, 3000K
Dimmable: Triac/ELV/0-10V
Lamp Type: LED
CRI: 93+
Wet Location: Listed
Catalog Number
Wattage
CCT
Lumens
Voltage
Dimming
Beam Angle
Finish
Spec
EL69727DXW
12.6W
2700K
850 lm
120/277V
Triac/ELV/0-10V
36º
White
EL69727DXB
12.6W
2700K
850 lm
120/277V
Triac/ELV/0-10V
36º
Black
EL69727DXBZ
12.6W
2700K
850 lm
120/277V
Triac/ELV/0-10V
36º
Bronze
EL69730DXW
12.6W
3000K
900 lm
120/277V
Triac/ELV/0-10V
36º
White
EL69730DXB
12.6W
3000K
900 lm
120/277V
Triac/ELV/0-10V
36º
Black
EL69730DXBZ
12.6W
3000K
900 lm
120/277V
Triac/ELV/0-10V
36º
Bronze
