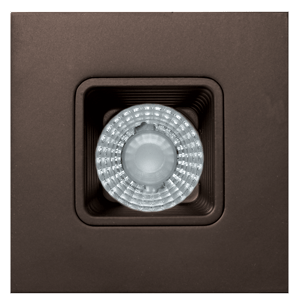

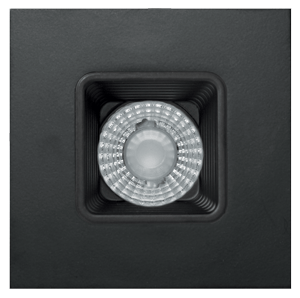

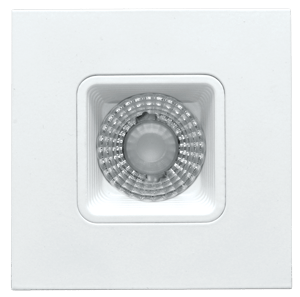

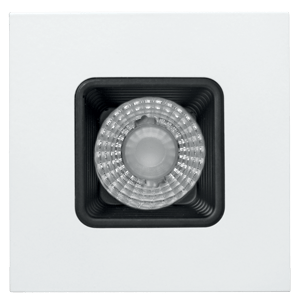

Elco 2 Square Baffle Teak LED Light Engine - Multiple Finishes/Color Temperatures

Elco LightingSKU: E2L15F27W

Finish: White
Color Temperature: 2700K
Price:
Sale price$79.29

Shipping calculated at checkout

Stock:
In stock

Description

10.5 - 12.5W, 2700K - SunsetK, 800 - 1000 lm - 850 - 1100 lm

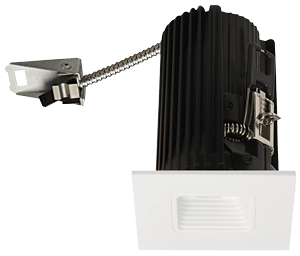

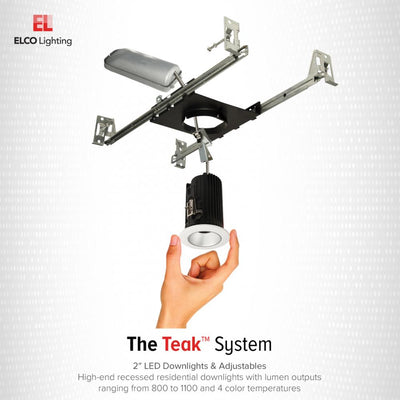

The Teak LED light engine is an IC Rated diecast construction specification grade 2 LED downlight. Boasting an output up to 1100 lumens - more than a traditional 75W MR16 halogen lamp. Style options, beam options and color finish options offer maximum flexibility in design. Drivers and housings are specified separately for maximum flexibility per your project™s needs. The patented engine offers auto release clips that make installation a breeze.
Product Features
  • Dimmable ELV, Triac or 0-10V depending on driver used.
  • Same LED light engine for 850 and 1100 lumens (see housings)
  • UL Listed for Direct Contact with insulation
  • Works with compatible ceilings up to 1¼

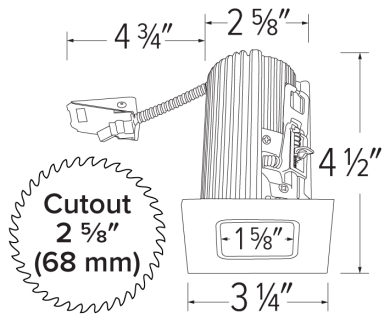

  • Height allows for use in ceilings with under 5" depth. Ceiling thickness can be reduced from fixture depth.

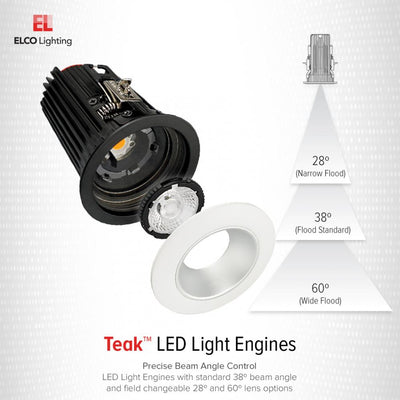

  • 38° Standard beam with optional 28° and 60°
  • Wet Location Rated for Indoor and Outdoor Use
  • JA8-2016-E, UL, and Energy Star Qualified
  • Life Span 50,000 Hours L70
  • U.S. Pat. 10,125,959

Specifications

  • Wattage: 10.5 - 12.5W
  • Lumens: 800 - 1000 lm - 850 - 1100 lm
  • Color Temp.: 2700K - SunsetK
  • Lamp Type: LED
  • CRI: 93+
  • Beam Angle: 38°
  • Wet Location: Listed
Catalog Number Lamp type Wattage CCT Lumens Beam Angle Finish Spec
E2L15F27W LED 10.5 - 12.5W 2700K 850 - 1100 lm 38° All White
E2L15F30W LED 10.5 - 12.5W 3000K 850 - 1100 lm 38° All White
E2L15F35W LED 10.5 - 12.5W 3500K 850 - 1100 lm 38° All White
E2L15F40W LED 10.5 - 12.5W 4000K 850 - 1100 lm 38° All White
E2L15FSDW LED 10.5 - 12.5W SunsetK 800 - 1000 lm 38° All White
E2L15F27B LED 10.5 - 12.5W 2700K 850 - 1100 lm 38° Black/White
E2L15F30B LED 10.5 - 12.5W 3000K 850 - 1100 lm 38° Black/White
E2L15F35B LED 10.5 - 12.5W 3500K 850 - 1100 lm 38° Black/White
E2L15F40B LED 10.5 - 12.5W 4000K 850 - 1100 lm 38° Black/White
E2L15FSDB LED 10.5 - 12.5W SunsetK 800 - 1000 lm 38° Black/White
E2L15F27BZ LED 10.5 - 12.5W 2700K 850 - 1100 lm 38° All Bronze
E2L15F30BZ LED 10.5 - 12.5W 3000K 850 - 1100 lm 38° All Bronze
E2L15F35BZ LED 10.5 - 12.5W 3500K 850 - 1100 lm 38° All Bronze
E2L15F40BZ LED 10.5 - 12.5W 4000K 850 - 1100 lm 38° All Bronze
E2L15FSDBZ LED 10.5 - 12.5W SunsetK 800 - 1000 lm 38° All Bronze
E2L15F27BB LED 10.5 - 12.5W 2700K 850 - 1100 lm 38° All Black
E2L15F30BB LED 10.5 - 12.5W 3000K 850 - 1100 lm 38° All Black
E2L15F35BB LED 10.5 - 12.5W 3500K 850 - 1100 lm 38° All Black
E2L15F40BB LED 10.5 - 12.5W 4000K 850 - 1100 lm 38° All Black
E2L15FSDBB LED 10.5 - 12.5W SunsetK 800 - 1000 lm 38° All Black
