Product details

Description
6.1W, 2700K - 4000K, Sunset, 450 lm - 675 lm

Small aperture 12V AC Downlight delivers over 600 lumens. More than a traditional 50W MR16 Halogen Lamp. Requires 12V AC Transformer (daisy chain up to 6). Dimmable ELV, MLV or 0-10V depending on transformer used.


Product Features

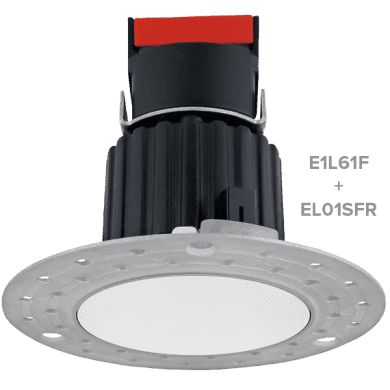

  • 1" Trimless Round Recessed Oak Downlight: 1 Trimless Light Engine

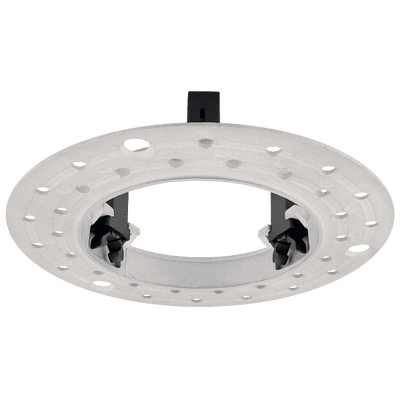

  • 1" Trimless Spackle Frame, EL01SFR, ordered separately (required)
  • Requires 12V AC transformer. Dimmable ELV, MLV or 0-10V depending on transformer used
  • IC Airtight for use with direct contact to insulation

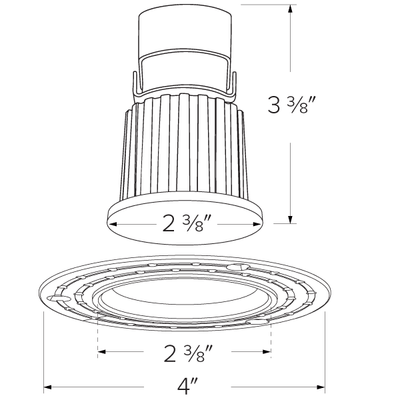

  • Height allows for use in ceilings with under 3" depth. Ceiling thickness can be reduced from fixture depth
  • Daisy chain up to 6 fixtures with E1LDRV60
  • 38 Standard beam with optional 28 and 50
  • Remodel requires no frame. New construction requires E2LF2 Frame.
  • Wet Location Rated for Indoor and Outdoor use
  • JA8-2016-E & UL listed
  • Life Span 50,000 Hours L70

Specifications

  • Wattage: 6.1W
  • Lumens: 450 lm - 675 lm
  • Voltage: 12V AC
  • Color Temp.: 2700K - SunsetK
  • Dimmable: Yes
  • Lamp Type: LED
  • Beam Angle: 28 - 50
  • CRI: 93+
  • Wet Location: UL Listed
