Description
6W, 2700K - 4000K, 625 lm - 700 lm

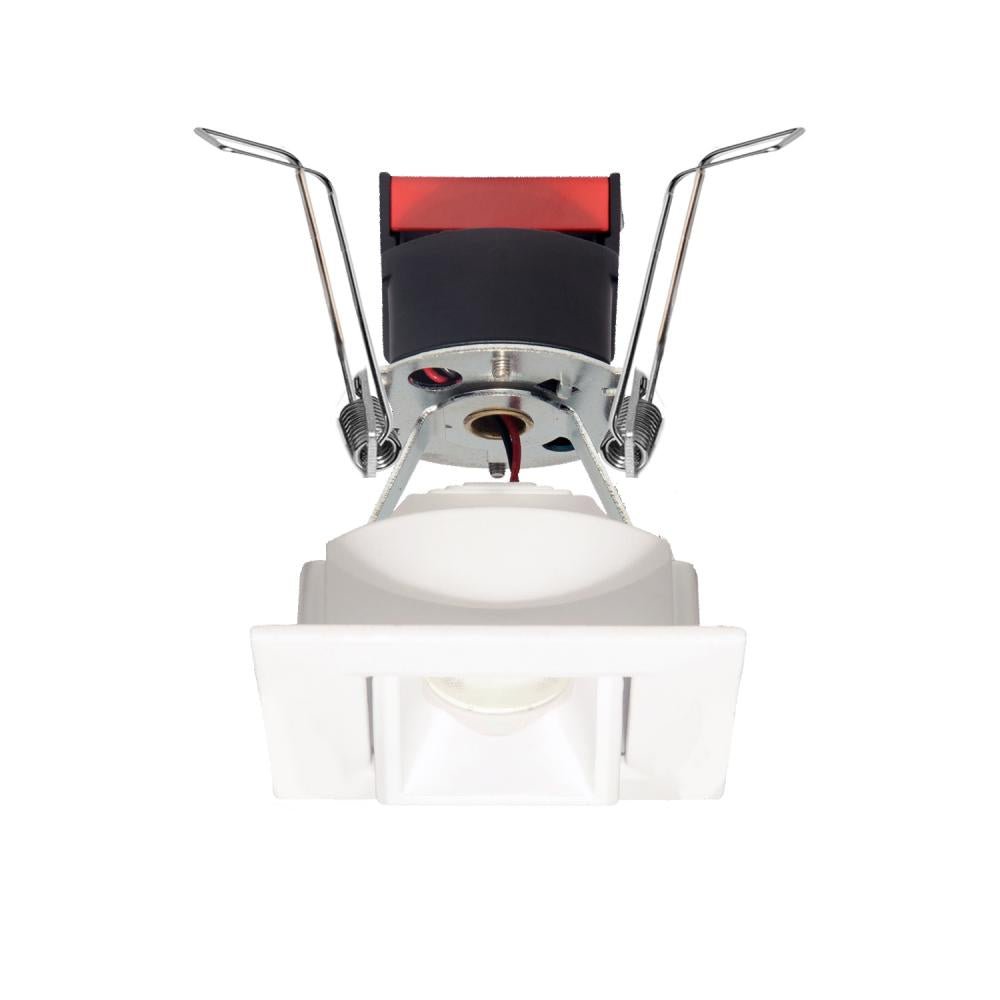

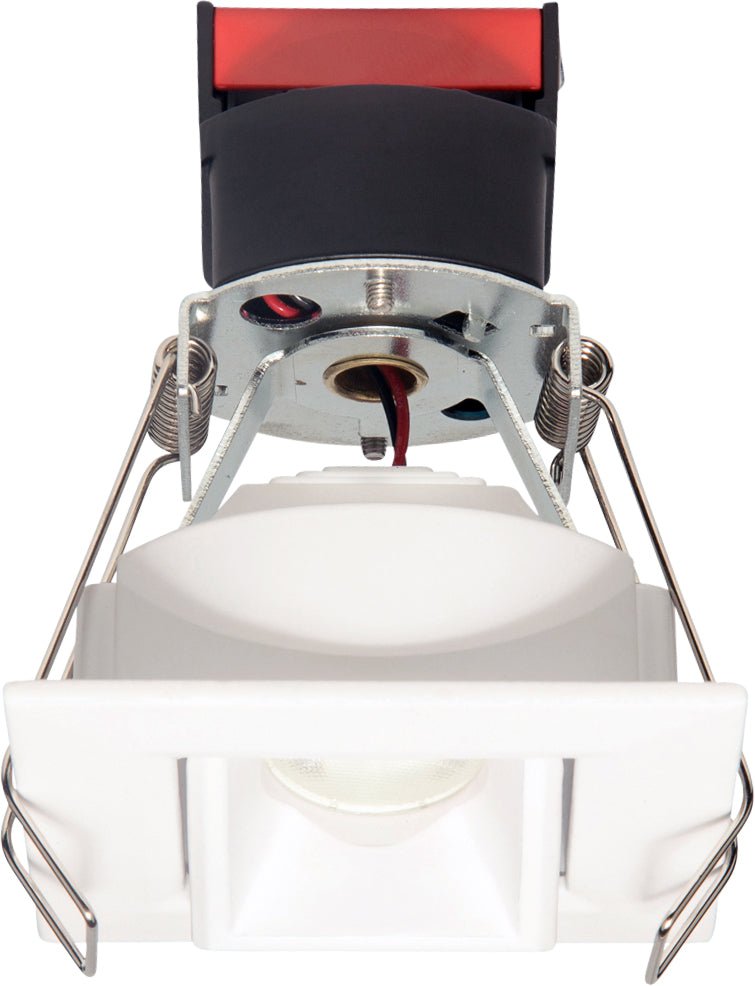

Small aperture 12V AC Downlight delivers over 600 lumens. More than a traditional 50W MR16 Halogen Lamp. Requires 12V AC Transformer (daisy chain up to 6). Dimmable ELV, MLV or 0-10V depending on transformer used.
Product Features
- Requires 12V AC transformer. Dimmable ELV, MLV or 0-10V depending on transformer used.
- IC for use with direct contact to insulation

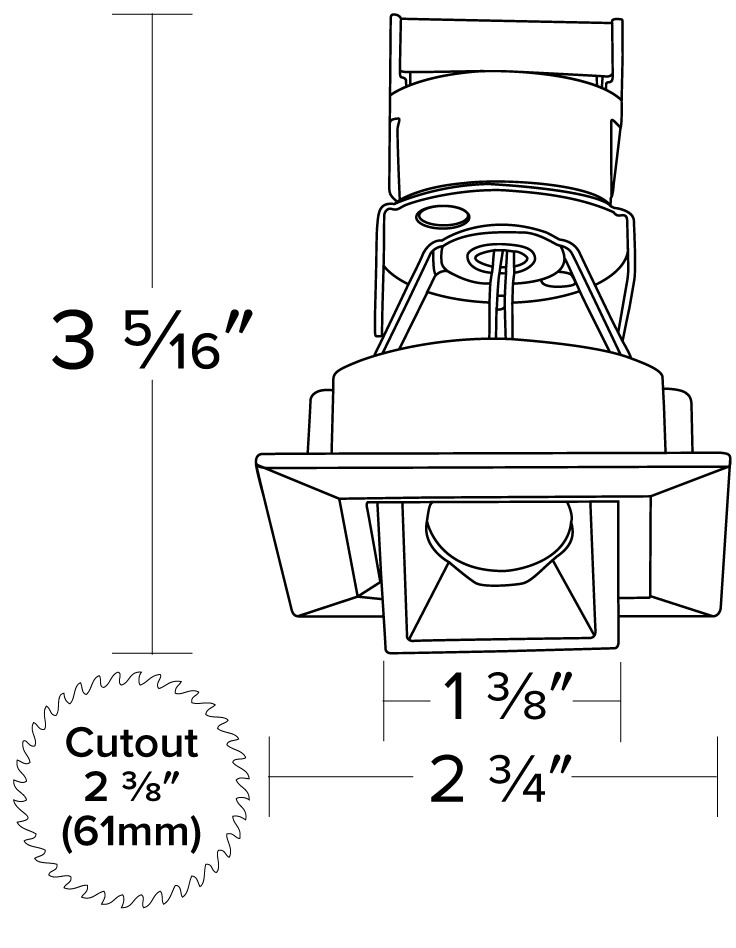

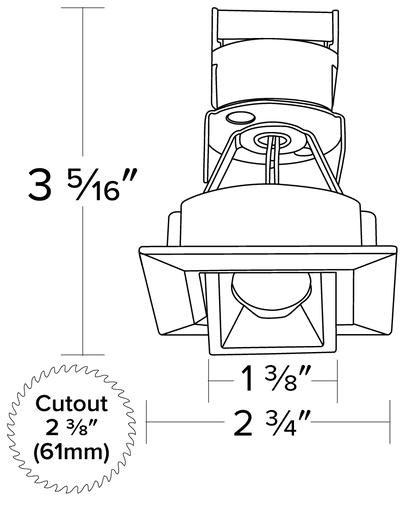

- Height allows for use in ceilings with under 4" depth. Ceiling thickness can be reduced from fixture depth.

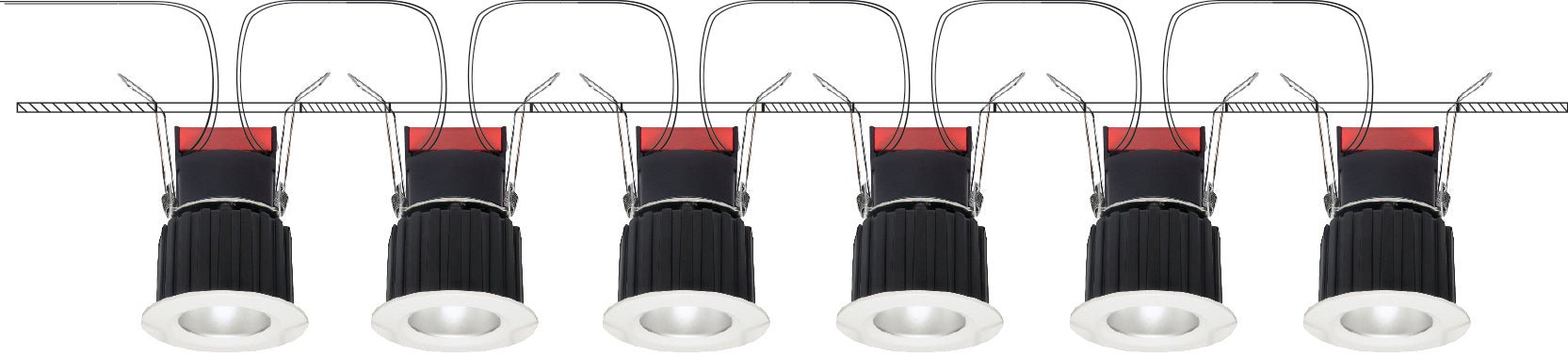

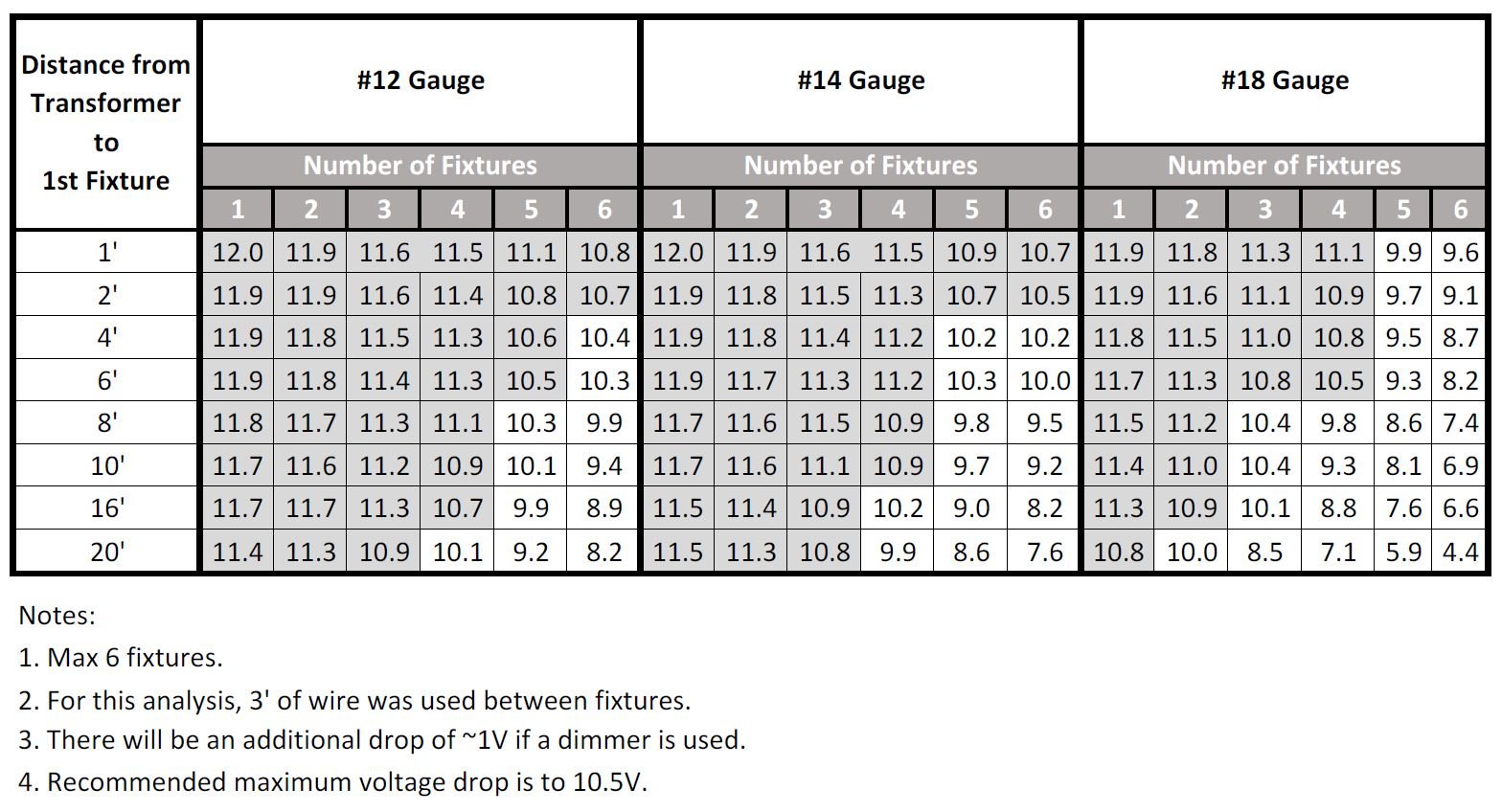

- Daisy chain up to 6 fixtures with E1LDRV60
- 28°, 38° and 50° beam options, not reccomended for in field changes.

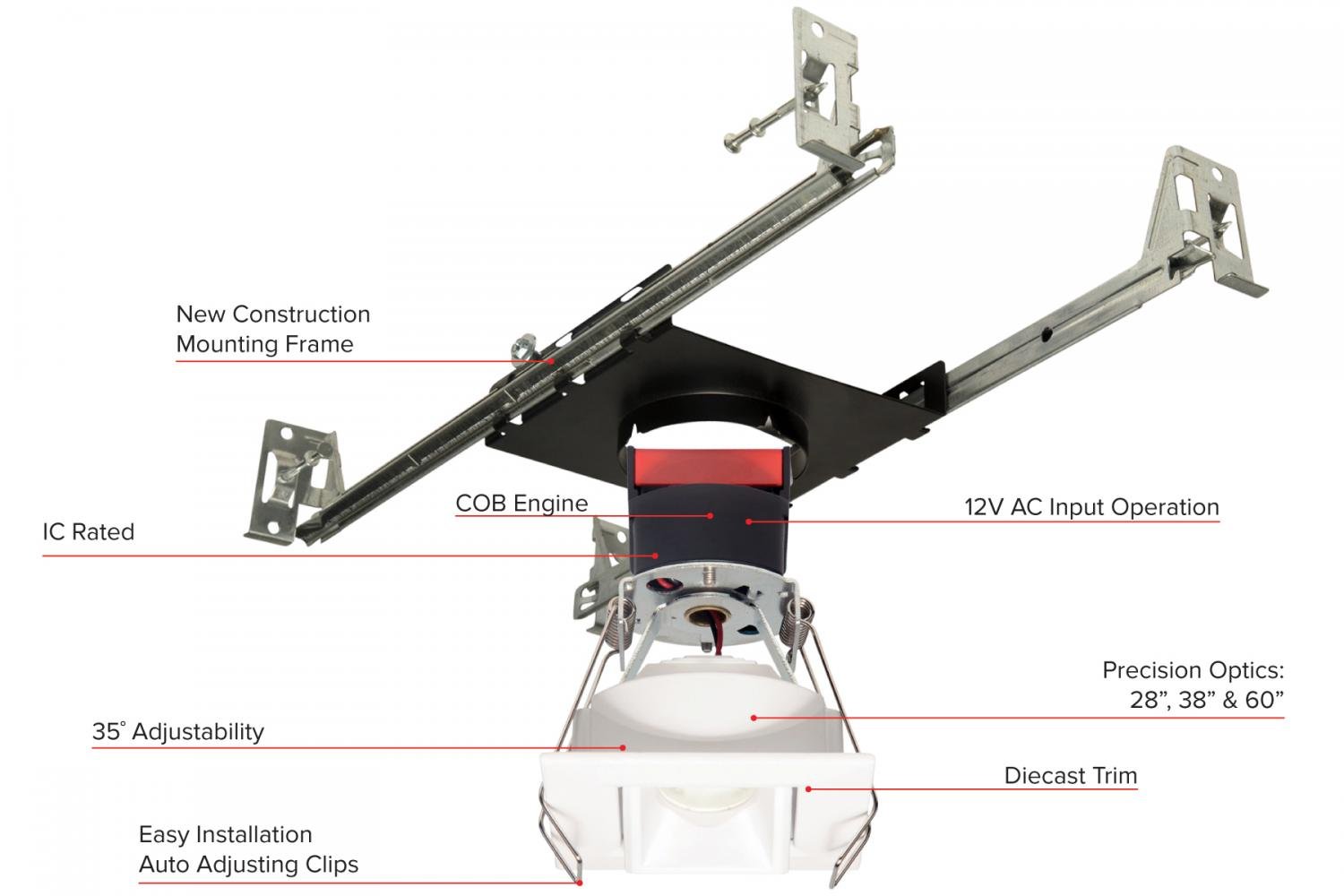

- Remodel requires no frame. New construction E1LF2 frame available.
- UL Damp Location Rated
- UL Listed, Meets California Title 24 JA8-2016-E and Energy Star standards.
- Life Span 50,000 Hours L70
Specifications
- Wattage: 6W
- Lumens: 625 lm - 700 lm
- Voltage: 12V AC
- Color Temp.: 2700K - 4000K
- Dimmable: Yes
- Lamp Type: LED
- Beam Angle: 28° - 50°
