Product details

Description
6.1W, 2700K - SunsetK, 450 lm - 675 lm

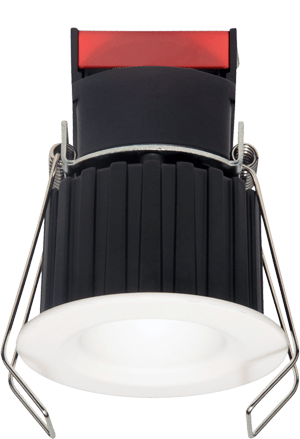

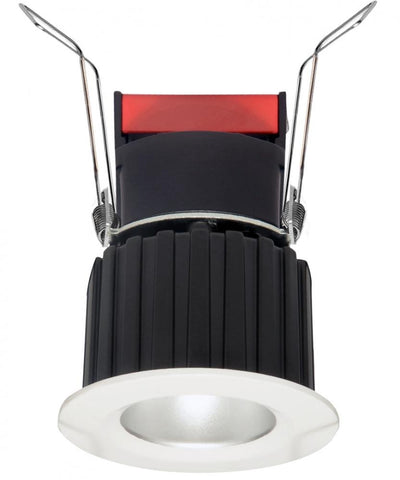

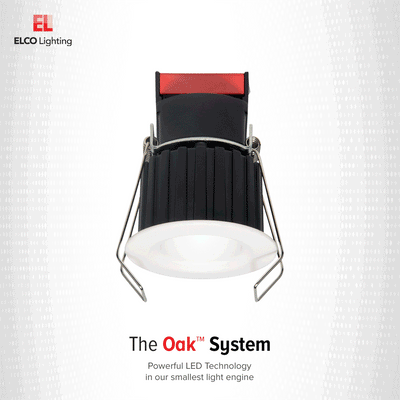

Small aperture 12V AC Downlight delivers over 600 lumens. More than a traditional 50W MR16 Halogen Lamp. Requires 12V AC Transformer (daisy chain up to 6). Dimmable ELV, MLV or 0-10V depending on transformer used.
Product Features
  • Requires 12V AC transformer. Dimmable ELV, MLV or 0-10V depending on transformer used.
  • IC Airtight for use with direct contact to insulation

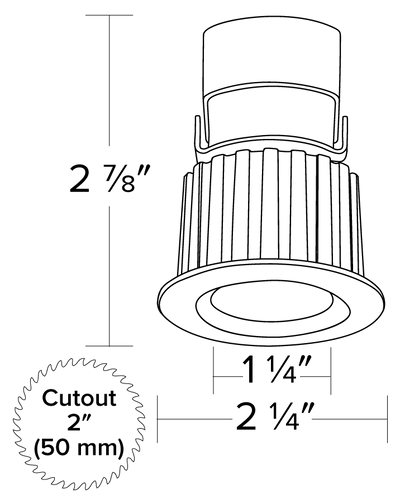

  • Height allows for use in ceilings with under 3" depth. Ceiling thickness can be reduced from fixture depth.

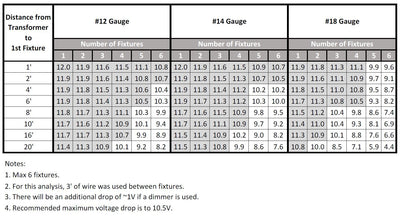

  • Daisy chain up to 6 fixtures with E1LDRV60
  • 38 Standard beam with optional 28 and 50

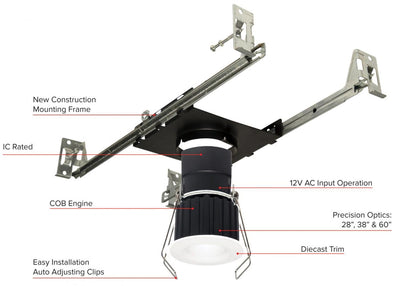

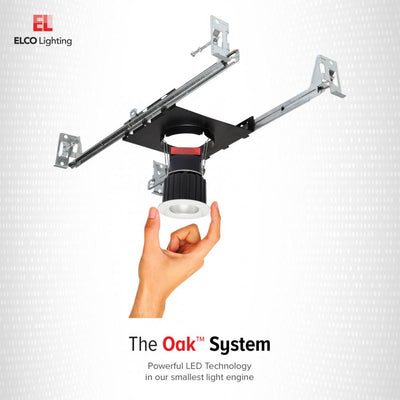

  • Remodel requires no frame. New construction E1LF1 frame available.
  • Wet Location Rated for Indoor and Outdoor Use
  • JA8-2016-E & UL listed.
  • Life Span 50,000 Hours L70

Specifications

  • Wattage: 6.1W
  • Lumens: 450 lm - 675 lm
  • Voltage: 120V AC or 12V AC
  • Color Temp.: 2700K - SunsetK
  • Dimmable: Yes
  • Lamp Type: LED
  • Beam Angle: 28 - 50
  • CRI:9 3+
  • Wet Location: UL Listed
Catalog Number Lamp type Wattage CCT Lumens Voltage Dimming Beam Angle Finish
E1L02F27W LED 6.1W 2700K 600 lm 12V AC Yes 38 All White
E1L02F30W LED 6.1W 3000K 625 lm 12V AC Yes 38 All White
E1L02F35W LED 6.1W 3500K 650 lm 12V AC Yes 38º All White
E1L02F40W LED 6.1W 4000K 675 lm 12V AC Yes 38 All White
E1L02FSDW LED 6.1W SunsetK 450 lm 12V AC Yes 38 All White
E1L02NF30W LED 6.1W 3000K 625 lm 12V AC Yes 28 All White
E1L02WF27W LED 6.1W 2700K 600 lm 12V AC Yes 50 All White

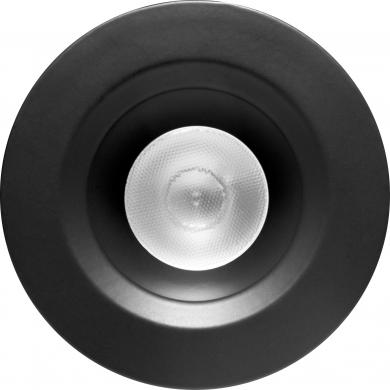

E1L02F27B LED 6.1W 2700K 600 lm 12V AC Yes 38 Black w/White Ring
E1L02F30B LED 6.1W 3000K 625 lm 12V AC Yes 38 Black w/White Ring
E1L02F35B LED 6.1W 3500K 650 lm 12V AC Yes 38º Black w/White Ring
E1L02F40B LED 6.1W 4000K 675 lm 12V AC Yes 38 Black w/White Ring
E1L02FSDB LED 6.1W SunsetK 450 lm 12V AC Yes 38 Black w/White Ring
E1L02F27BZ LED 6.1W 2700K 600 lm 12V AC Yes 38 All Bronze
E1L02F30BZ LED 6.1W 3000K 625 lm 12V AC Yes 38 All Bronze
E1L02F35BZ LED 6.1W 3500K 650 lm 12V AC Yes 38 All Bronze
E1L02F40BZ LED 6.1W 4000K 675 lm 12V AC Yes 38 All Bronze
E1L02FSDBZ LED 6.1W SunsetK 450 lm 12V AC Yes 38 All Bronze
E1L02NF30BZ LED 6.1W 3000K 625 lm 12V AC Yes 28 All Bronze
E1L02NF35BZ LED 6.1W 3500K 650 lm 12V AC Yes 28 All Bronze
E1L02WF40BZ LED 6.1W 4000K 675 lm 12V AC Yes 50 All Bronze
E1L02WF27BZ LED 6.1W 2700K 600 lm 12V AC Yes 50 All Bronze
E1L02F27H LED 6.1W 2700K 600 lm 12V AC Yes 38 Haze w/White Ring
E1L02F30H LED 6.1W 3000K 625 lm 12V AC Yes 38 Haze w/White Ring
E1L02F35H LED 6.1W 3500K 650 lm 12V AC Yes 38º Haze w/White Ring
E1L02F40H LED 6.1W 4000K 675 lm 12V AC Yes 38 Haze w/White Ring
E1L02FSDH LED 6.1W SunsetK 450 lm 12V AC Yes 38 Haze w/White Ring
E1L02NF30H LED 6.1W 3000K 625 lm 12V AC Yes 28 Haze w/White Ring
E1L02F27BB LED 6.1W 2700K 600 lm 12V AC Yes 38 All Black
E1L02F30BB LED 6.1W 3000K 625 lm 12V AC Yes 38 All Black
E1L02F35BB LED 6.1W 3500K 650 lm 12V AC Yes 38º All Black
E1L02F40BB LED 6.1W 4000K 675 lm 12V AC Yes 38 All Black
E1L02FSDBB LED 6.1W SunsetK 450 lm 120V AC Yes 38 All Black
