Description

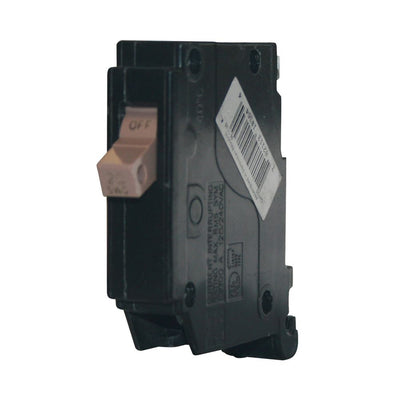

PRODUCT NAME: Eaton CH Thermal Magnetic Circuit Breaker
CATALOG NUMBER: CH120
UPC: 782113101644
GENERAL SPECIFICATIONS:
-
Product Dimensions:
- Length/Depth: 3.5 in
- Height: 3 in
- Width: 5 in
- Product Weight: 0.27 lb
PRODUCT SPECIFICATIONS:
- Type: Type CH 3/4-Inch Standard Circuit Breaker
- Amperage Rating: 20 A
- Voltage Rating: 120/240 V
- Circuit Breaker Type: CH
- Used With: Type CH Loadcenters
- Interrupt Rating: 10 kAIC
- Main Circuit Breaker: CH
-
Wire Size:
- (2) #14-10 AWG Cu/Al
- (1) #14-8 AWG
- Number of Poles: Single-Pole
CERTIFICATIONS:
- UL 489
CATALOG NOTES:
- Switch Duty Rated
- HACR Rated
- Single-Pole 120/240V
- Requires one 3/4-Inch Space
