Description

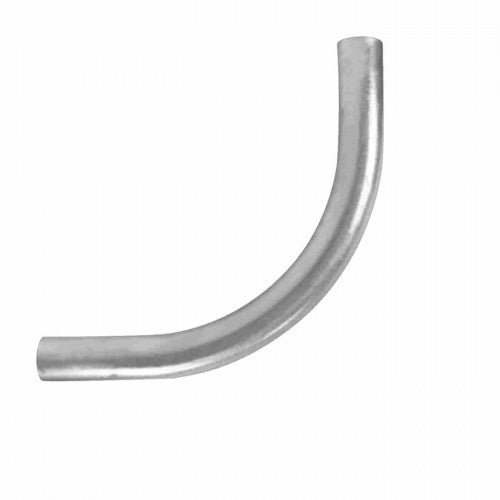

90 DegreeEMT elbow is manufactured from prime EMT conduit in accordance with the latest specifications and standards of ANSI C80.3 (UL797). The interior and exterior surface of elbows are free from defect with a smooth welded seam, and also are thoroughly and evenly coated with zinc using hot dip galvanizing process. Elbows are produced in normal trade sizes from ½" to 4" and used to connect the EMT conduit to change the way of the EMT conduit. | |
Features: | |
-Galvanized Steel - Meet UL 797 and ANSI C80.3 |
|
Certifications: | |
UL File Number: | |
E358011 | |
CAT NO | UPC | TRADE SIZE | STD PKG | PRODUCT URL |
EEL90-50 | 8-35243-05301-4 | 1/2" | 50 | EEL90-50 |
EEL90-75 | 8-35243-05302-1 | 3/4'' | 50 | EEL90-75 |
EEL90-100 | 8-35243-05303-8 | 1'' | 25 | EEL90-100 |
EEL90-125 | 8-35243-05304-5 | 1-1/4'' | 20 | EEL90-125 |
EEL90-150 | 8-35243-05305-2 | 1-1/2'' | 15 | EEL90-150 |
EEL90-200 | 8-35243-05306-9 | 2'' | 10 | EEL90-200 |
EEL90-250 | 8-35243-05307-6 | 2-1/2" | BULK | EEL90-250 |
EEL90-300 | 8-35243-053083 | 3'' | BULK | EEL90-300 |
EEL90-350 | 8-35243-05309-0 | 3-1/2'' | BULK | EEL90-350 |
EEL90-400 | 8-35243-05310-6 | 4'' | BULK |
EEL90-400 |
