Specifications

• Manufacturer: Connecticut Electric

• Part Number: UBIZ1515

• Alternate Part Number: UBIZ-1515

• Replaces / Corresponds To: Zinsco R38-15

• Product Type: Tandem Replacement Circuit Breaker

• Series / Type: UBIZ / Type R

• Amperage: 15/15A

• Circuit Configuration: Two 15A Single-Pole Circuits

• Poles: Twin / Tandem

• Voltage: 120VAC

• Phase: Single Phase

• Interrupting Rating: 10kA (10,000 AIC)

• Trip Type: Thermal

• Mounting Type: Push-On / Plug-In

• Body Width: 0.75"

• Application: Compatible Zinsco load centers that accept Type R circuit breakers

• Certification: ETL Listed

• Condition: New

• UPC: 094925030303

• GTIN: 00094925030303

• Anticipated Weight: 0.50 lb

• Manufacturer Warranty: 10 Years

Product Description

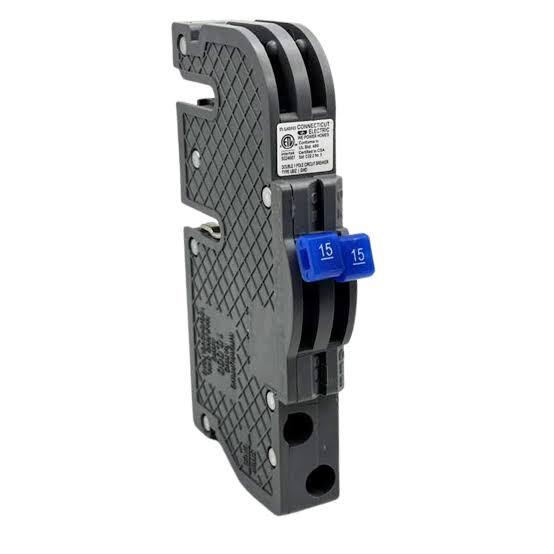

The Connecticut Electric UBIZ1515 is a 15/15-Amp tandem replacement circuit breaker designed for compatible Zinsco electrical panels and load centers that accept Type R circuit breakers.

The UBIZ1515 provides two independent 15-Amp, 120V circuits in a single 0.75-inch breaker space, making it a space-saving replacement for compatible legacy Zinsco tandem breakers.

This breaker features a push-on mounting design, thermal overcurrent protection, and a 10,000 AIC interrupting rating. It is newly manufactured by Connecticut Electric and ETL Listed for use in compatible Zinsco electrical panels.

The UBIZ1515 corresponds to the legacy Zinsco R38-15 configuration and is intended as a newly manufactured replacement where the panel and application are compatible.

Key Features

• 15/15 Amp tandem configuration

• Two 15A single-pole circuits

• 120VAC

• 10,000 AIC

• Connecticut Electric UBIZ Series

• Type R configuration

• Replacement for compatible Zinsco R38-15 applications

• 0.75-inch body width

• Push-on / plug-in mounting

• Thermal overcurrent protection

• Designed for compatible Zinsco load centers

• ETL Listed

• Newly manufactured replacement breaker

• New condition

Important Compatibility Information

The UBIZ1515 is a tandem breaker providing two 15-Amp, 120V circuits and is designed for compatible Zinsco load centers that accept Type R breakers.

Before ordering, verify the UBIZ1515 / R38-15 configuration, 15/15A rating, 120V rating, tandem configuration, 0.75-inch body width, mounting style, and panel compatibility.

Do not confuse the UBIZ1515 with a standard 2-pole common-trip 240V breaker. A tandem breaker provides two separate 120V circuits and operates differently from a conventional 2-pole breaker.
