ABBA TSRPT24600 600W Stainless Steel Manual Transformer with Photocell

TSRPT24600 – 600W Stainless Steel Manual Landscape Transformer with Photocell & Multi-Tap Voltage

Power your landscape lighting system with precision using the TSRPT24600 Stainless Steel Manual Transformer, engineered for reliable performance in both residential and commercial applications. With a 600W capacity and multi-tap outputs ranging from 12V to 24V, this transformer is built to handle complex lighting setups with ease, offering dependable voltage delivery across long cable runs or demanding installations.

Key Features:

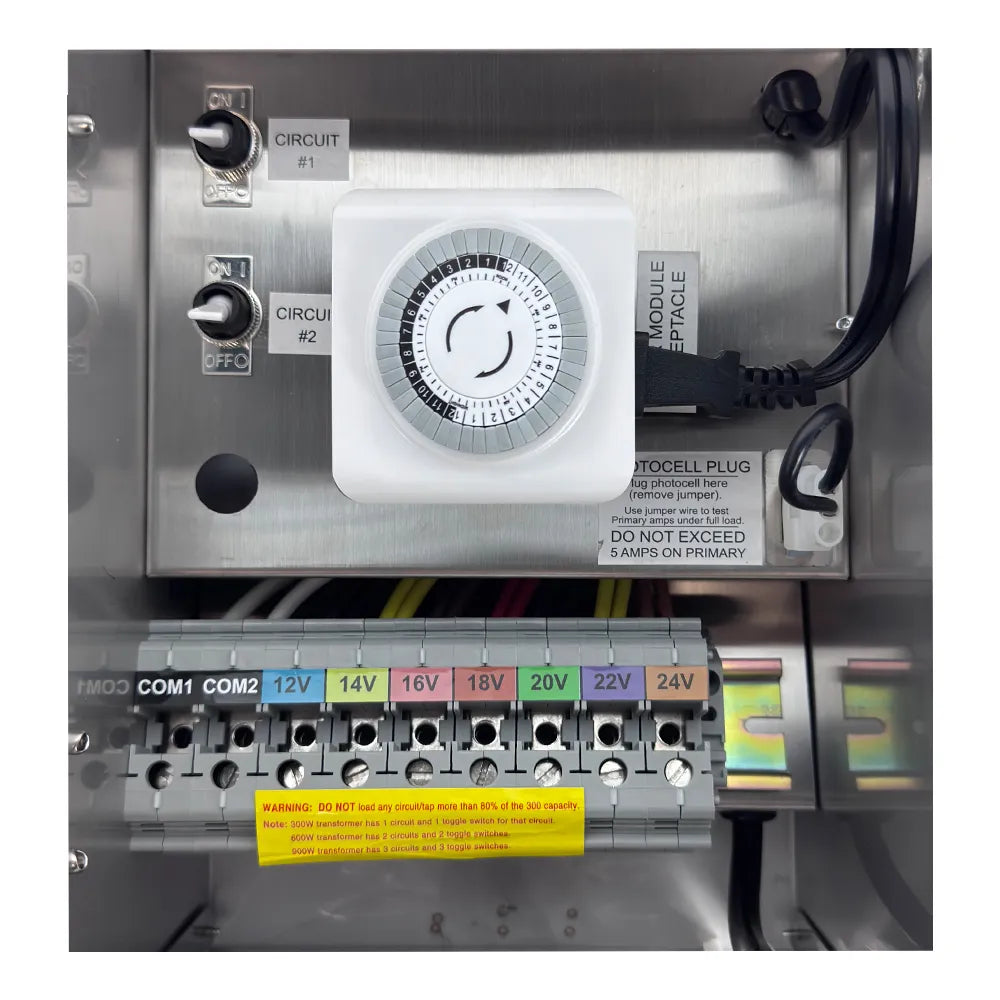

• Multi-Tap Voltage Output (12V, 14V, 16V, 18V, 20V, 24V)
  Fine-tune voltage delivery based on distance and load to prevent light dimming or drop-off across larger outdoor areas.

• Built-in Photocell (Optional Use)
  Enables automatic dusk-to-dawn operation, turning your lights on when the sun goes down and off when it rises—perfect for energy efficiency and hands-free use.

• Manual Timer Compatible (Plug-in Timer Sold Separately)
  Supports customizable scheduling for lighting control based on your specific needs. Combine with the photocell for full automation or manual override flexibility.

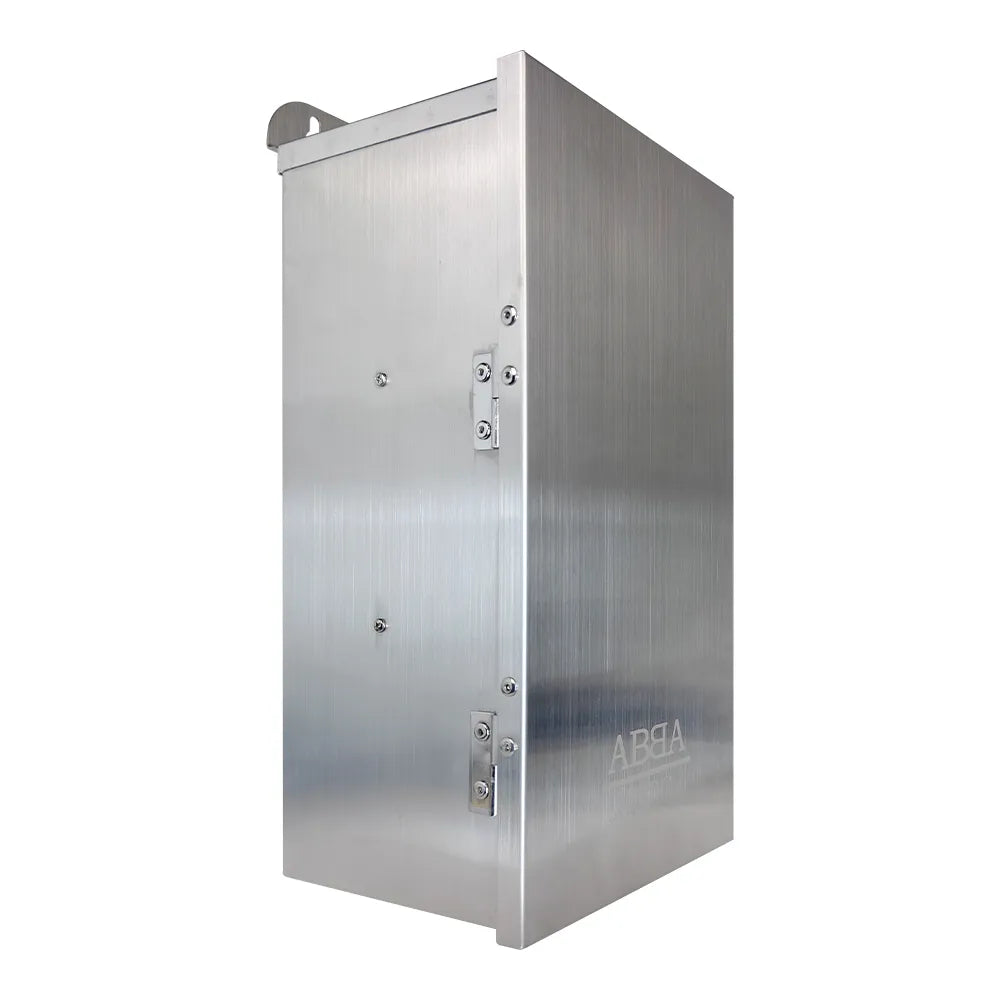

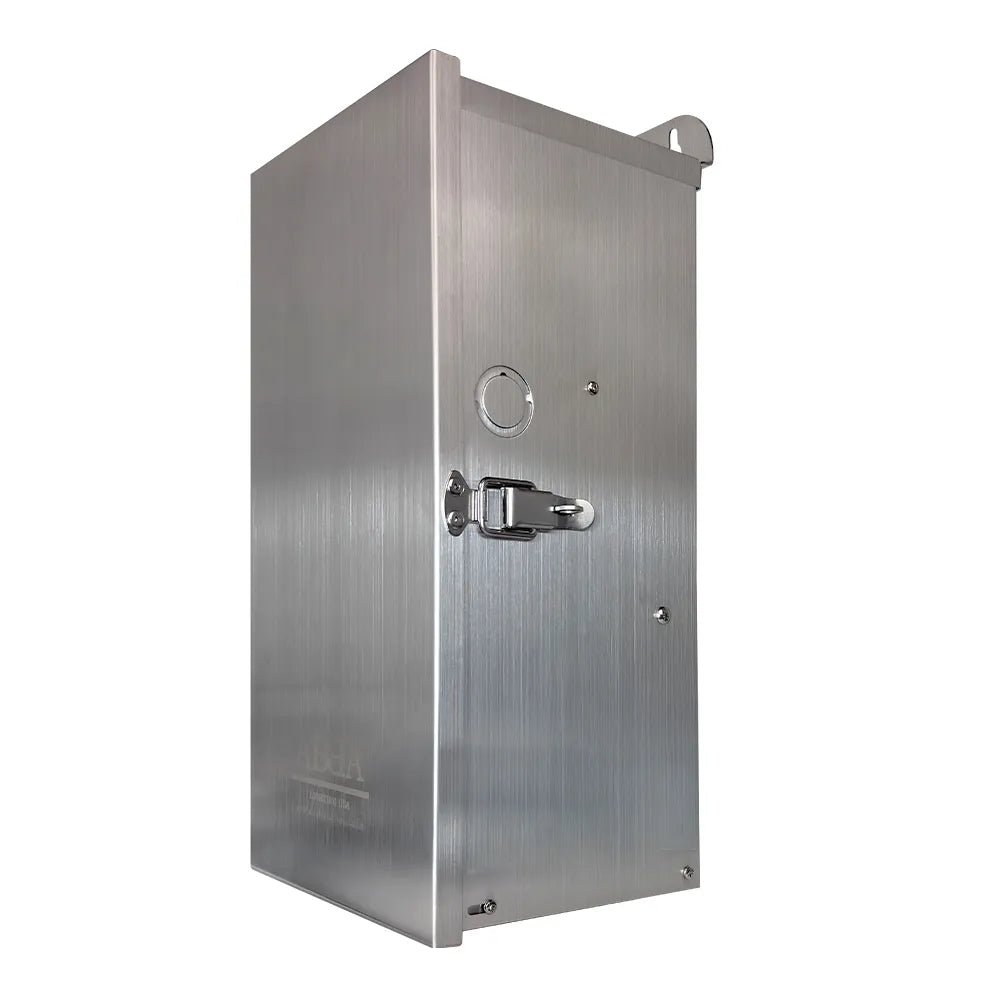

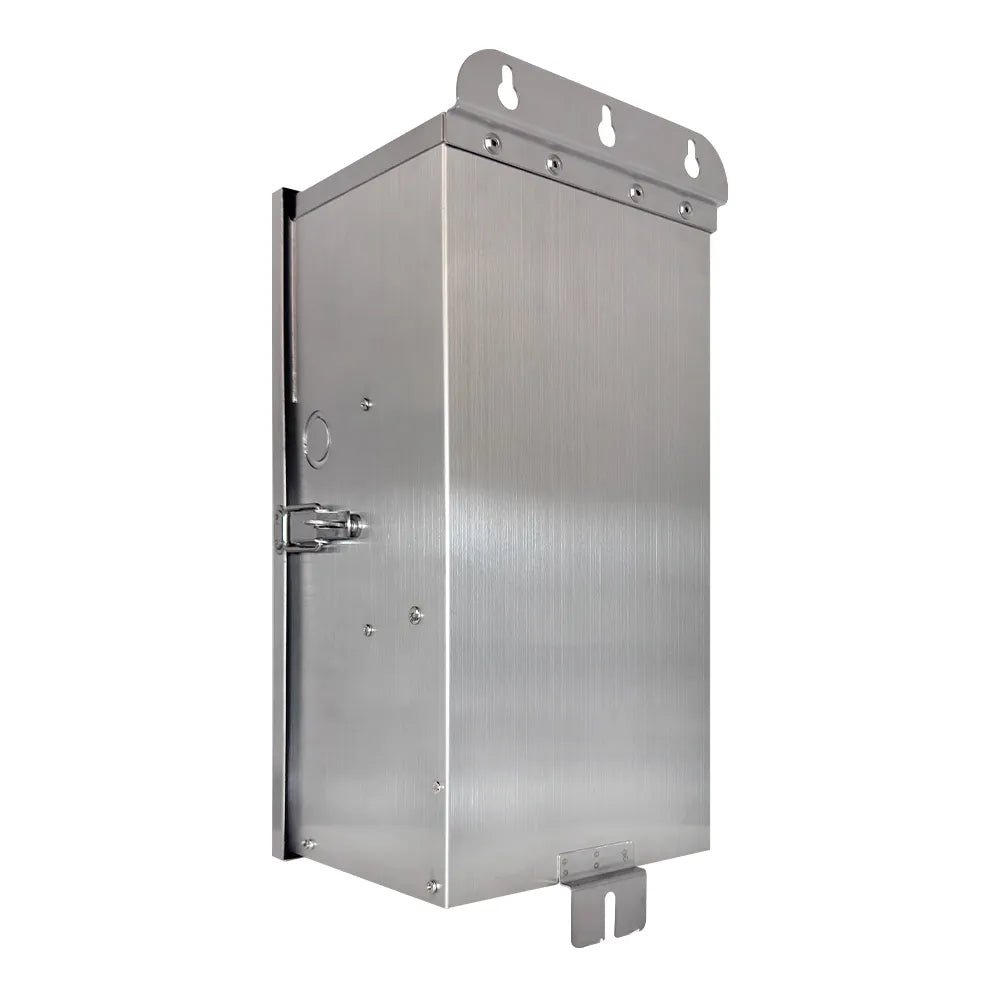

• Heavy-Duty 304 Stainless Steel Housing
  Designed for indoor or outdoor use, the rust-resistant stainless steel construction ensures maximum durability in all weather conditions.

• 36-Inch Plug-In Cord (3-Prong)
  Comes with a long, grounded power cord for flexible and easy installation near any power source.

• ETL & UL Certified
  Meets the highest safety and quality standards for dependable operation in residential, commercial, or architectural lighting systems.

Product Specifications:

• Model: TSRPT24600

• Material: 304 Stainless Steel

• Finish: Brushed Stainless

• Power Capacity: 600W

• Voltage Outputs: 12V, 14V, 16V, 18V, 20V, 24V

• Photocell: Built-in (optional use)

• Timer: Manual plug-in (sold separately)

• Cord Length: 36" 3-Prong Plug

• Use Case: Indoor/Outdoor

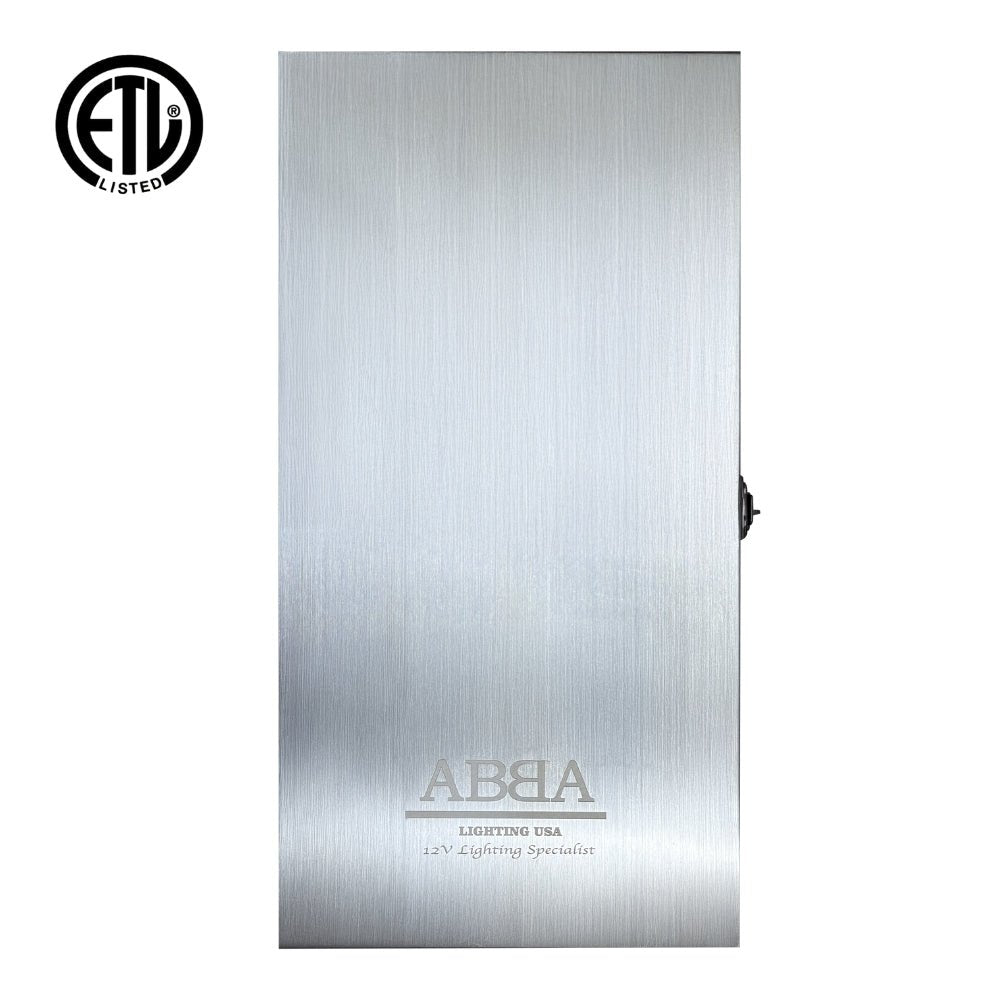

• Certifications: ETL Listed, UL Listed

• Size: 6.8″ (L) × 6″ (W) × 11.8″ (H)

• Master Box: 1 pc

Ideal For:

• Large-scale landscape lighting systems

• LED and halogen AC lighting

• Residential gardens and pathways

• Commercial walkways and signage

• Retaining walls, driveways, patios, and courtyards

Why Choose the TSRPT24600 Transformer?

✔ Multi-tap output provides precise voltage control
✔ Built-in photocell for dusk-to-dawn convenience
✔ Manual timer compatibility for customizable lighting schedules
✔ Rugged, weatherproof stainless steel housing
✔ ETL & UL certified for safe, reliable operation

Power your lighting with confidence and control.
The TSRPT24600 Manual Transformer delivers everything you need for a flexible, efficient, and long-lasting outdoor lighting solution.

Spec Sheet | Installation Guide
