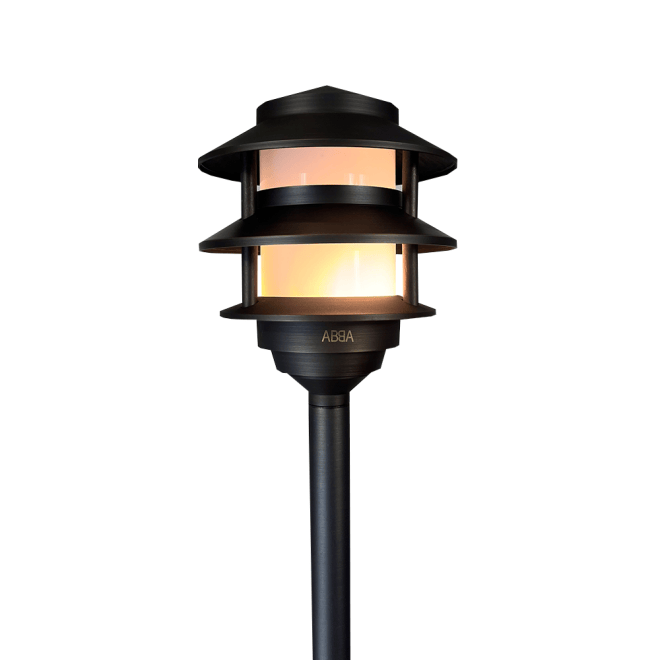

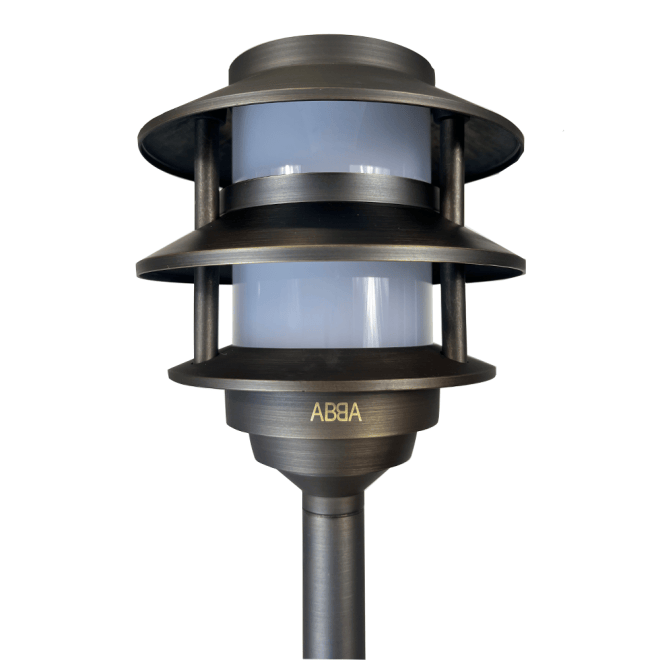

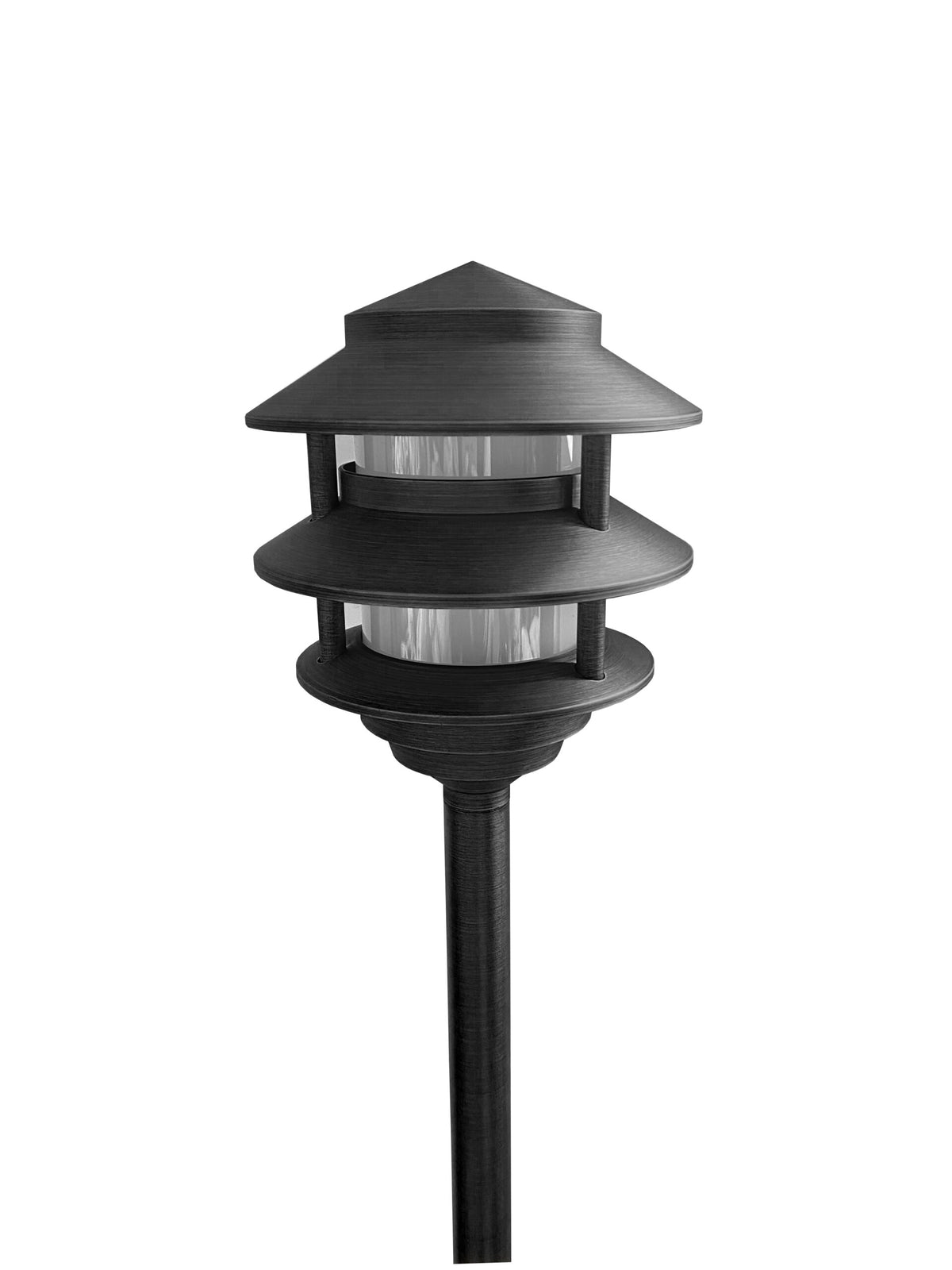

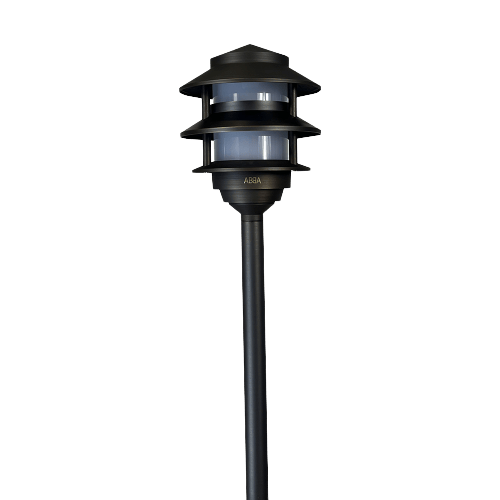

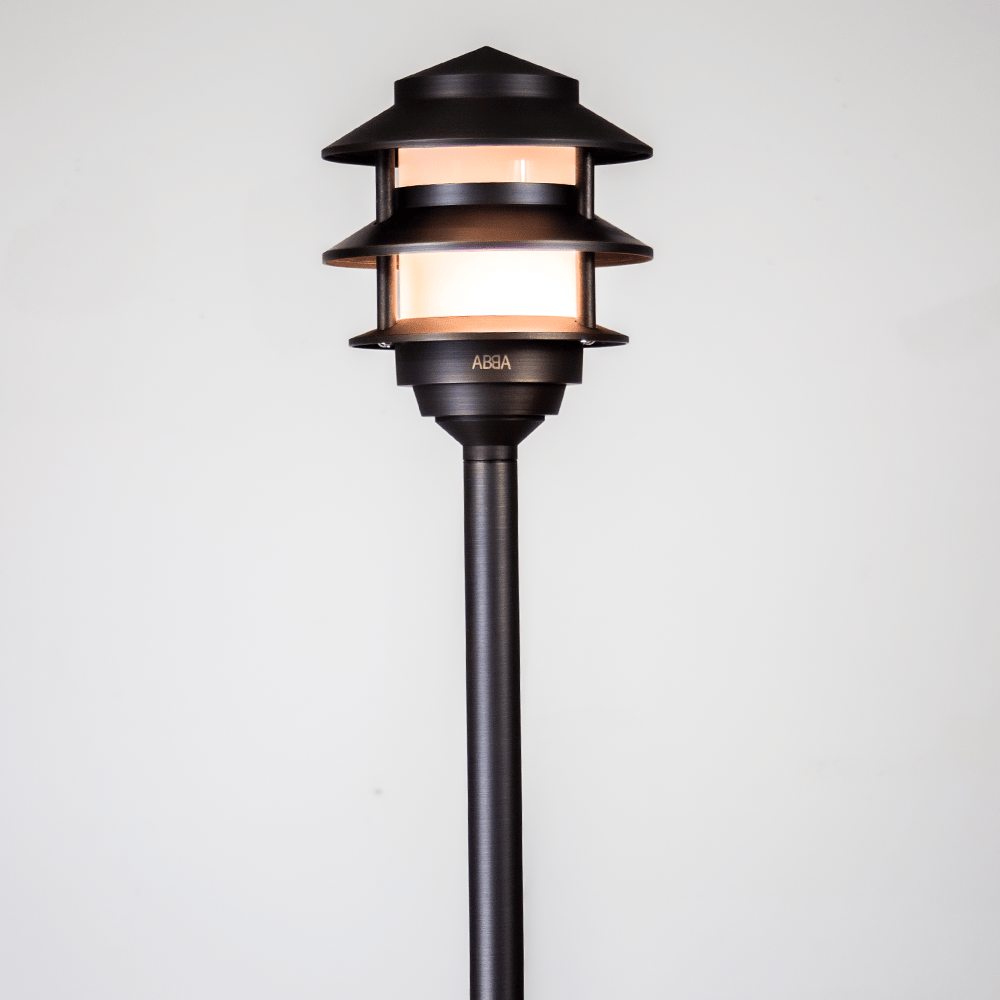

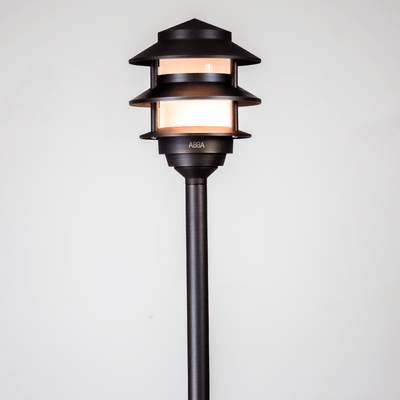

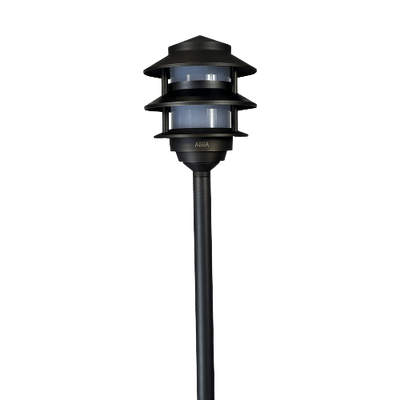

The ABBA Lighting USA PLB22 Heavy-Duty Cast Brass Pagoda Path Light combines classic architectural styling with durable construction to enhance outdoor pathways, gardens, and landscaped spaces. Its distinctive two-tier pagoda design adds decorative appeal while directing illumination toward surrounding ground surfaces, helping create a welcoming and functional outdoor environment.

Constructed from heavy-duty cast brass, the PLB22 is available in Natural Brass and Dark Brass finishes to complement a variety of landscape designs. It uses a replaceable G4 12V LED bulb, allowing you to select compatible wattages and color temperatures to suit your lighting needs. The bulb is sold separately.

Designed for outdoor landscape applications, this fixture features an IP65 waterproof rating, a heat-resistant glass lens, an ABS ground spike, and an 18/2 direct-burial landscape lighting wire lead. The PLB22 is an excellent choice for residential walkways, garden paths, driveways, courtyards, and commercial landscaping projects.

Key Features

• Heavy-Duty Cast Brass Construction: Built for durable outdoor landscape lighting installations.

• Classic Pagoda Design: Two-tier shade adds architectural character to outdoor spaces.

• Two Finish Options: Available in Natural Brass and Dark Brass.

• Replaceable G4 LED Bulb: Compatible with G4 12V LED bulbs, sold separately.

• Flexible Lighting Options: Supports compatible 2W, 3W, 3.5W, and 5W bulbs.

• Multiple Color Temperatures: Compatible bulb options include 3000K and 5000K, depending on the selected bulb.

• IP65 Waterproof Rating: Designed for outdoor use.

• Heat-Resistant Glass Lens: Provides a protective lens over the light source.

• ABS Ground Spike Included: Supports ground installation in landscaped areas.

• Direct-Burial Wire Lead Included: Supplied with an 18/2 landscape lighting wire lead.

• Versatile Outdoor Applications: Suitable for gardens, walkways, entrances, and commercial landscapes.

Technical Specifications

• Brand: ABBA Lighting USA

• Model: PLB22-DB

• Product Type: Low-Voltage Landscape Path Light

• Design: Two-Tier Pagoda Style

• Body Material: Heavy-Duty Cast Brass

• Available Finishes: Natural Brass, Dark Brass

• Operating Voltage: 12V low voltage

• Bulb Type: G4 12V LED

• Bulb Included: No; sold separately

• Compatible Bulb Wattages: 2W, 3W, 3.5W, 5W

• Compatible Color Temperatures: 3000K and 5000K, depending on bulb

• Waterproof Rating: IP65

• Lens Material: Heat-resistant glass

• Mounting Type: Ground spike

• Ground Spike Material: ABS

• Included Wiring: 18/2 direct-burial landscape lighting wire lead

• Master Carton Quantity: 12 pieces

• Weight: Not specified by the manufacturer.




Dimensions

• Fixture Length: 6.2 inches

• Fixture Width: 6.2 inches

• Fixture Head Height: 7.7 inches

• Post Height: 11.8 inches

• Total Fixture Height: 19.5 inches

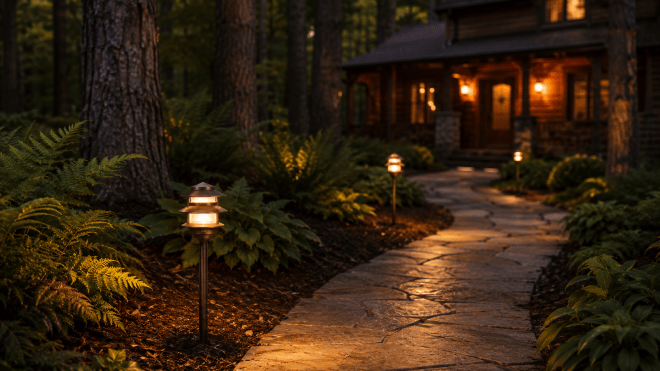

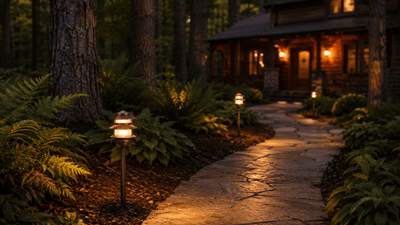

Applications

• Garden paths and walkways

• Residential entrances and front yards

• Driveway borders

• Flower beds and landscaped areas

• Patios and outdoor living spaces

• Courtyards and pedestrian paths

• Apartment communities

• Hotels and resorts

• Commercial landscaping

• Outdoor community pathways
