Details of the ABBA Lighting STB19-NB Integrated Brass Step Light, 3W LED, 3000K Warm White, 120 Lumens, 12V AC/DC, IP65 - Natural Brass Finish

The ABBA Lighting USA STB19 Integrated Brass Step Light combines heavy-duty cast brass construction with energy-efficient LED illumination to provide stylish, functional lighting for outdoor steps, decks, patios, and walkways. Its compact design delivers 120 lumens of 3000K warm white light, helping improve nighttime visibility while creating a welcoming atmosphere around exterior spaces.

Available in Black, Natural Brass, and White finishes, the STB19 complements a variety of architectural and landscape designs. Its integrated 3W LED provides consistent illumination without requiring a separate bulb, while the 12V AC/DC low-voltage operation makes it suitable for compatible landscape lighting systems.

Designed for outdoor use, this fixture features an IP65 waterproof rating and includes an 18/2 direct-burial landscape lighting wire lead. Its low-profile design makes it an excellent choice for stair risers, deck edges, patio borders, and other outdoor areas where subtle accent lighting enhances both safety and appearance.

Key Features

• Heavy-Duty Cast Brass Construction: Durable housing designed for outdoor lighting applications.

• Integrated LED Technology: Built-in LED light source eliminates the need for a separate bulb.

• Energy-Efficient 3W Output: Provides practical accent illumination with low power consumption.

• 3000K Warm White Light: Creates a comfortable and inviting outdoor atmosphere.

• 120-Lumen Output: Helps improve visibility around steps and exterior surfaces.

• 12V AC/DC Operation: Designed for compatible low-voltage landscape lighting systems.

• Three Finish Options: Available in Black, Natural Brass, and White.

• IP65 Waterproof Rating: Suitable for outdoor environments.

• Direct-Burial Wire Lead Included: Comes with an 18/2 direct-burial landscape lighting wire lead.

• Versatile Outdoor Applications: Ideal for stairs, deck edges, patios, walkways, and architectural accents.

Technical Specifications

• Brand: ABBA Lighting USA

• Model: STB19

• Product Type: Integrated Brass Step Light

• Material: Heavy-duty cast brass

• Available Finishes: Black, Natural Brass, White

• Light Source: Integrated LED

• Wattage: 3W

• Input Voltage: 12V AC/DC

• Color Temperature: 3000K warm white

• Lumen Output: 120 lumens

• Waterproof Rating: IP65

• Mounting Style: Recessed installation

• Included Wiring: 18/2 direct-burial landscape lighting wire lead

• Dimmable: Not specified by the manufacturer

• Certification: Not specified on the product page

• Master Carton Quantity: 50 pieces

• Weight: Not specified by the manufacturer.

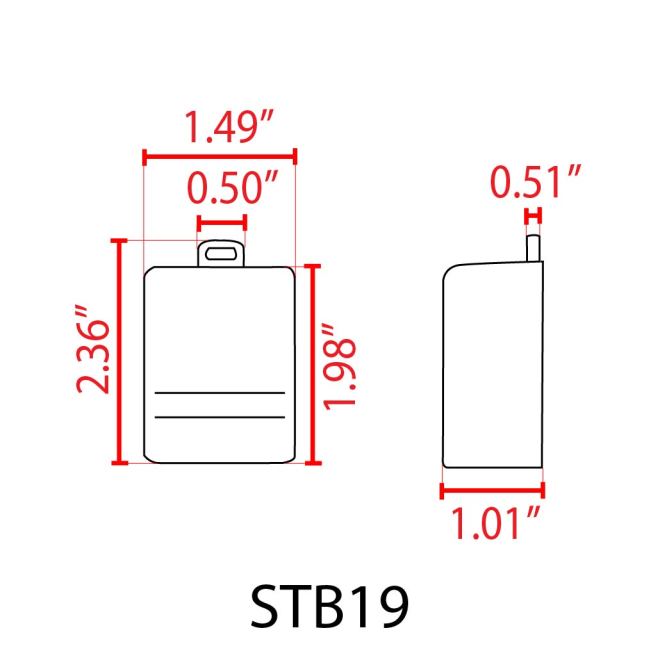

Dimensions

• Length: 1.48 inches

• Width: 1 inch

• Height: 2.34 inches.

Applications

• Outdoor stairways and step risers

• Deck steps and perimeter edges

• Patio borders and outdoor living spaces

• Walkways and landscape pathways

• Exterior walls and architectural features

• Residential entrances and garden areas

• Commercial outdoor spaces

• Landscape and hardscape lighting projects
