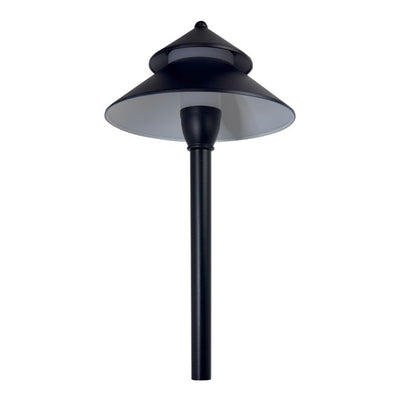

Details of the ABBA Lighting CDPA77 Adjustable Aluminum Path Light, 3W Integrated LED, 5CCT Selectable, 130 Lumens, 12V–24V AC/DC, IP65 - Black Finish

The ABBA Lighting USA CDPA77 Adjustable Aluminum Path Light combines a distinctive double-layer umbrella design with versatile LED lighting for residential and commercial landscape applications. Its sleek black finish and decorative canopy add architectural appeal to outdoor spaces while providing soft, 360-degree illumination around pathways, gardens, and landscaped areas.

Constructed from heavy-duty cast aluminum, the CDPA77 features an integrated 3W LED that delivers 130 lumens of light. Its selectable 5CCT technology allows you to customize the color temperature to suit different landscape designs and outdoor environments. The adjustable lighting body provides up to 180 degrees of vertical adjustment, offering greater flexibility when positioning the fixture.

Designed for low-voltage outdoor lighting systems, the CDPA77 operates on 12V–24V AC/DC and features an IP65 waterproof rating. An 18/2 direct-burial landscape lighting wire lead is included to support installation. This decorative path light is ideal for creating inviting outdoor environments with subtle illumination and modern functionality.

Key Features

• Heavy-Duty Cast Aluminum Construction: Durable housing designed for outdoor landscape lighting.

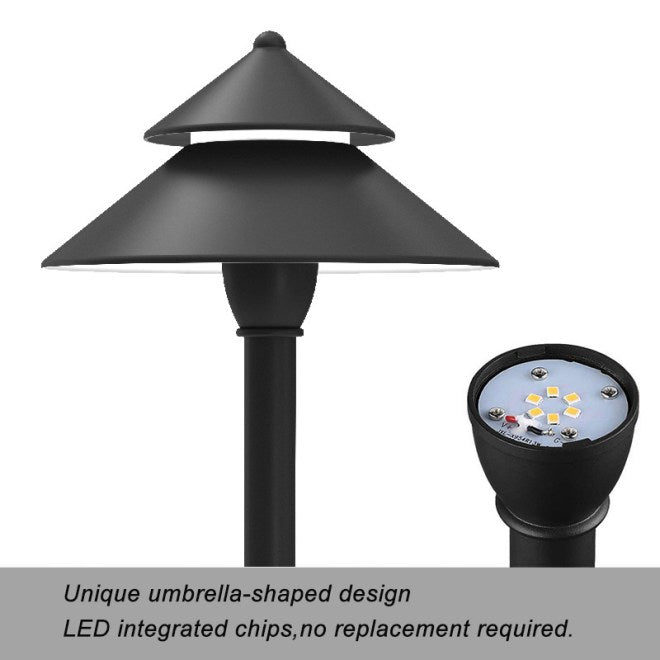

• Double-Layer Umbrella Design: Adds distinctive architectural style to gardens and pathways.

• Black Finish: Complements a variety of contemporary and traditional outdoor settings.

• Integrated 3W LED: Built-in light source eliminates the need for a separate bulb.

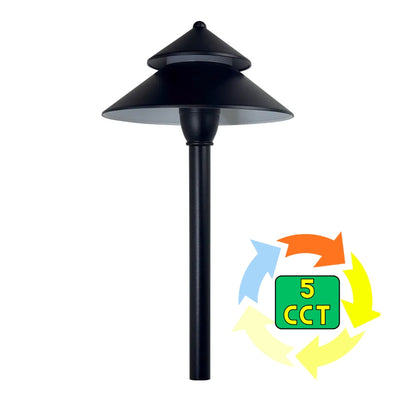

• Selectable 5CCT Technology: Provides five selectable color-temperature options.

• 130 Lumens Output: Delivers subtle illumination for pathways and landscaped areas.

• 360-Degree Light Distribution: Provides ambient illumination around the fixture.

• Adjustable Lighting Body: Offers up to 180 degrees of vertical adjustment.

• 12V–24V AC/DC Operation: Compatible with suitable low-voltage landscape lighting systems.

• IP65 Waterproof Rating: Designed for outdoor use.

• Direct-Burial Wire Lead Included: Comes with an 18/2 landscape lighting wire lead.

• Optional Dimming Compatibility: Confirm dimmer and system compatibility before installation.

Technical Specifications

• Brand: ABBA Lighting USA

• Model: CDPA77

• Product Type: Integrated LED Aluminum Path Light

• Design: Double-layer umbrella canopy

• Material: Heavy-duty cast aluminum

• Finish: Black

• Light Source: Integrated LED

• Power Consumption: 3W

• Operating Voltage: 12V–24V AC/DC

• Color Temperature: Selectable 5CCT

• Light Output: 130 lumens

• Light Distribution: 360 degrees

• Vertical Adjustment: Up to 180 degrees

• Waterproof Rating: IP65

• Wiring Included: 18/2 direct-burial landscape lighting wire lead

• Cable Length: Approximately 4.9 ft (1.5 m)

• Dimmable: Optional low-voltage dimmer compatibility; verify system requirements

• Integrated Bulb: Yes

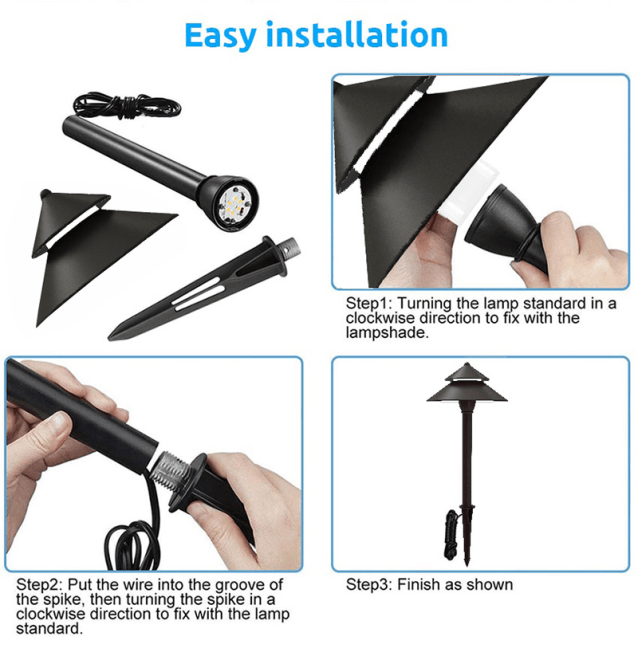

• Mounting Accessories: Confirm ground stake or mounting accessory requirements before ordering

• Weight: Not specified by the manufacturer

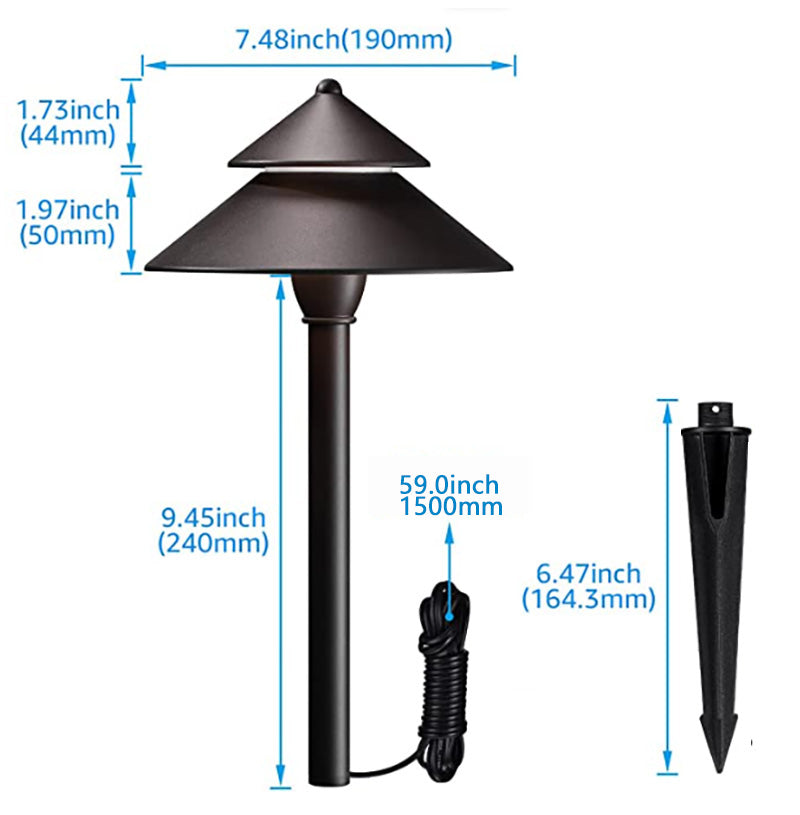

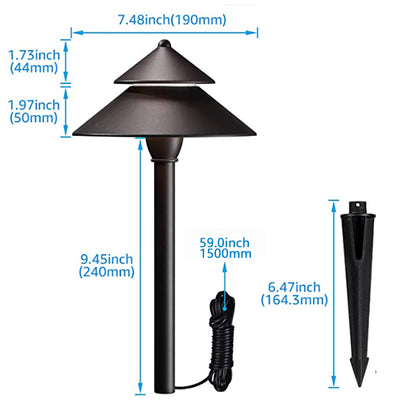

• Dimensions: Not specified on the main product listing

• Warranty: Confirm current warranty terms with the manufacturer.

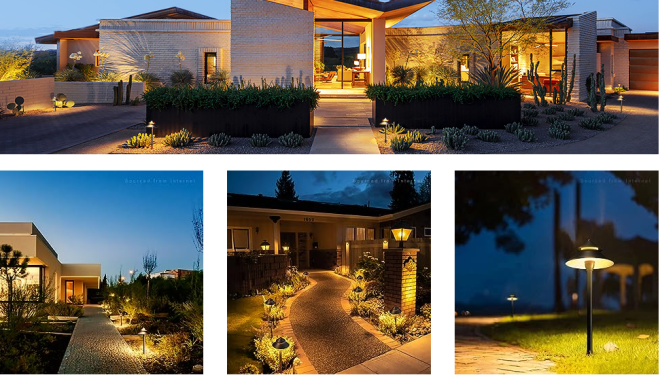

Applications

• Residential garden pathways

• Outdoor walkways and entrances

• Landscape borders and planting beds

• Courtyards and patios

• Driveway edges

• Outdoor living spaces

• Apartment communities

• Hotels and hospitality properties

• Commercial landscape projects

• Parks and recreational areas

• Decorative pathway and ambient lighting
