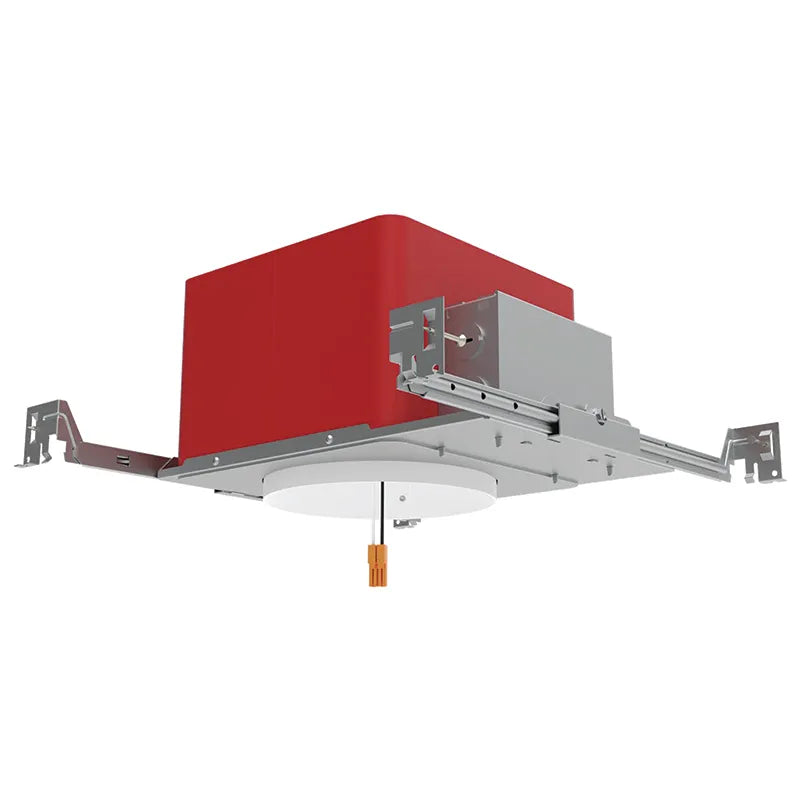

6" Fire Rated LED Can New Construction

This 22W IC-rated new construction housing is built for direct contact with insulation and is suitable for both IC and non-IC applications. Designed for versatility, it features a double-wall airtight housing with a factory-installed gasket to meet ASTM E-283 standards and prevent unwanted airflow.

The galvanized steel junction box comes pre-wired with (7) 1/2" knockouts and (4) Romex® knockouts with removable plates for flexible wiring. Pre-installed hanger bars include True Nail® features for secure mounting to standard or engineered lumber, laminated beams, or T-grid ceilings. The adjustable housing accommodates up to 1.5" ceiling thickness and spans up to 24" with tool-free size reduction and 90° rotation.

Key Features:

• Voltage: 120V or 277V

• Wattage: 22W

• Double-wall IC-rated for direct insulation contact

• Airtight construction – meets ASTM E-283 air leakage requirements

• Accommodates ceiling thicknesses up to 1.5"

• Suitable for both IC and non-IC installations

• Damp Location Rated

• Pre-wired galvanized steel junction box with multiple knockouts

• Hanger bars with True Nail® for secure, fast installation

• T-bar slots for drop ceilings and repositionable 90° hanger bars

• Integral leveling flange for easy one-person alignment

Applications:

• Ideal for ceiling plenums with 2x8 joists or taller

• Works with joists, T-grid, and drop ceiling layouts

• See installation sheet for complete guidance

Certifications:

• ETL Listed

• cUL Listed
