Description
Siemens Meter Main and Meter Load Center Combinations provide a full range of Metering Products that are built for safety ease of installation and long term quality. A Meter Main is a device that provides a meter socket and a main breaker, a meter combination load center provides a socket, main breaker and load center interior. Siemens has also introduced a line of Solar Ready Meter Combination Load Centers. These combos feature a cost effective construction that is preferable in non-EUSERC areas.
- A powder coating of polyester paint using electrostatic process further enhances corrosion protection and gives a great looking finish, free of drips and runs
- Siemens meter load center combinations offer several different configurations and include a meter socket section and a load center section

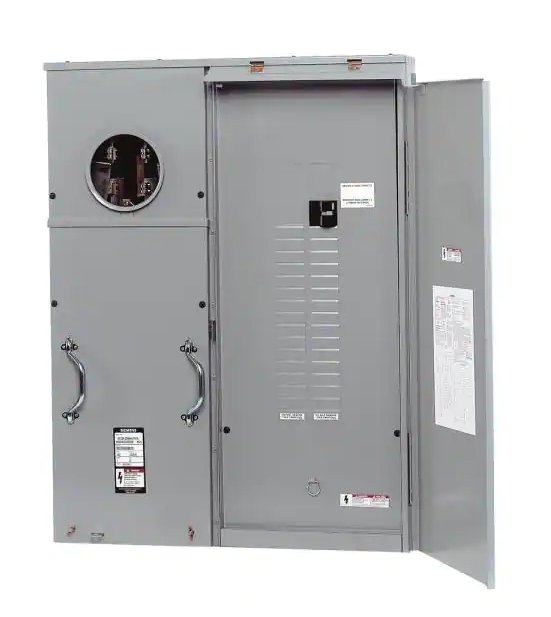

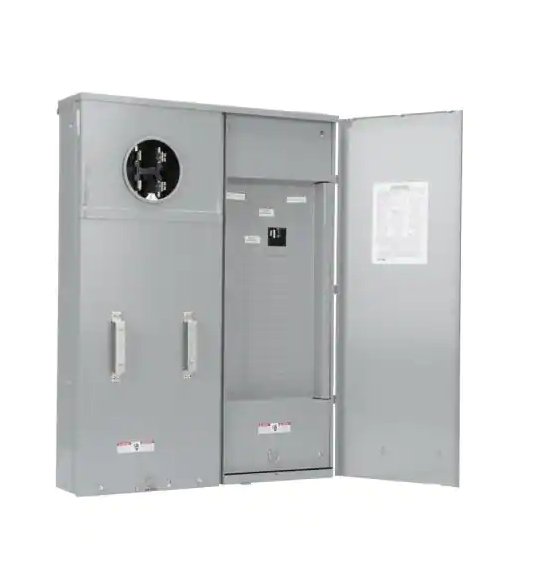

- Meter-load center combination is 400 Amp 30 space 40 circuit underground fed surface mount plug-in ring
- Underground feed only
- Pad locking provisions on all devices
- 22,000 AIC rated
- Side hinge door removable by backing out only one screw, suitable for use only as service entrance equipment
- QN2200RH factory installed main breaker - for field installed main breaker use type QP (H) or QNR (H)
- Check with local utility to confirm meter socket approval
Specifications
Dimensions
| Load center depth (in.) | 8.5 | Load center height (in.) | 41.1 |
|---|---|---|---|
| Load center width (in.) | 42.3 |
Details
| Electrical Product Type | Load Center | Indoor/Outdoor | Outdoor |
|---|---|---|---|
| Load Center Mounting Type | Flush |
Load Center Type | Combination |
| Maximum Amperage (amps) | 400 | Meter Socket Type | Ring |
| Mounting Type | Bolt On | NEMA Configuration | NEMA 3R |
| NEMA Configuration Receptacle | No Receptacle | Number of Circuits | 42 |
| Number of Gangs | 0 | Number of Spaces | 30 |
| Phase Type | 1 Phase | Product Weight (lb.) | 120 lb |
| Returnable | 30-Day | Voltage (volts) | 240 |
Warranty / Certifications
| Certifications and Listings | UL Listed | Manufacturer Warranty | 1 Year |
|---|
Siemens Description
- PHOTOVOLTAIC (SOLAR) LOAD CENTER 30 (1 INCH) SPACES INTERIOR ALLOWING MAX 42 CIRCUITS
- 4-JAW METER / 1-PHASE SYSTEM RATED 400A
- SPECIAL FEATURES: UG FEED, RING TYPE COVER, SURFACE MOUNTING
- 200A Max Solar Input Meter-Load Center Combinations
- 1-Phase, 3-Wire, 120/240V AC
- EUSERC and CA Title 24 Compliant Meter-Load Center Combination
- 400 amp, Up to 200 amp alternate energy Input
