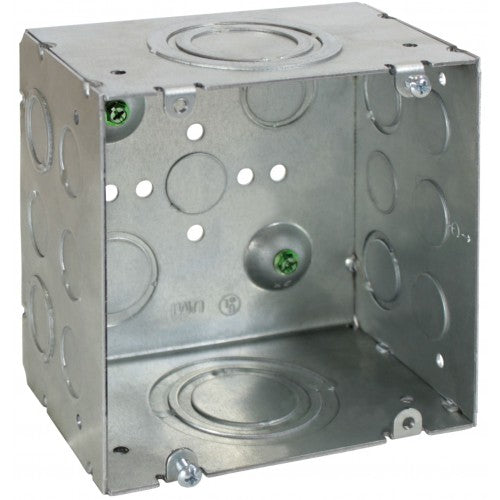

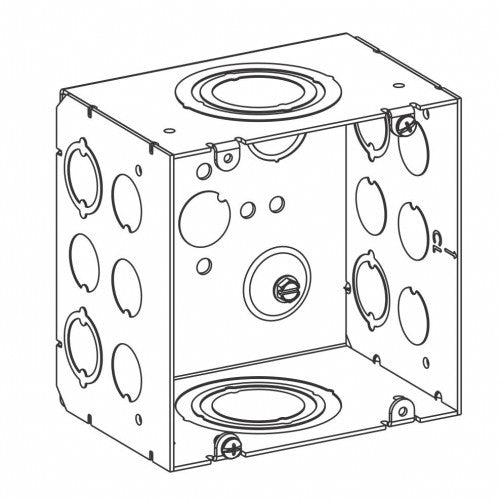

Orbit T5B-50/200 True 5" Square Box, 3-1/4" Deep, 1/2" To 1" MKO, 1" To 2" CKO

Orbit Industries, Inc.SKU: T5B-50/200-10P

Choose Pack: 10 Pack
Precio:
Precio de venta$86.25

Gastos de envío calculados en la caja

Stock:
Disponible

Descripción

Category SWITCH BOX
Page P27
Barcode 8-35243-02278-2
Description:
Orbit Industries' selection of 5” Square Boxes and Accessories provides the capacity needed to handle modern-day hospital, commercial, government, university and other data installations. Up to 71.8 cubic inches of capacity allow for an easier installation of high-speed cable, resulting in reduced labor costs and cable stress.

Features:
- More than double the capacity of standard 4” square boxes
- Increased capacity easily meets minimum bend radius requirements for an easier installation
- Extra space in the box reduces the chance of short circuits and ground faults due to cramped spaces and cable stress
- Can store the BICSI-recommended slack cable loop, allowing for easy access and cable termination by a single technician
- Supports all current copper CAT and fiber optic cables in addition to predicted cable size increases
- Compatible with Orbit's Simple Support Bracket System, Fixed Mounting Brackets (FMB) and Flat Bracket Family for between stud applications
- Suitable brackets allow the T5B to use a 4" ring, reducing material costs

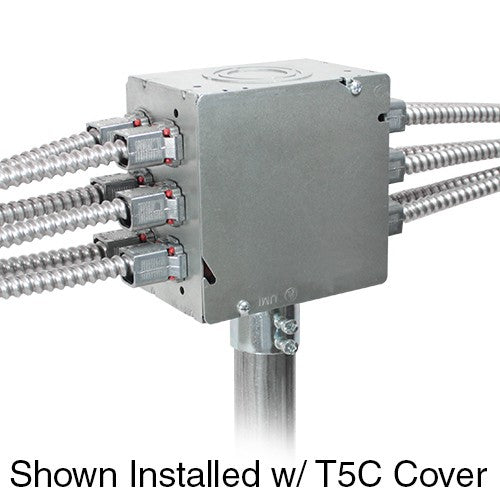

- Cover, Reducer and Partitions available here

Dimensions:
Width 5"
Height 5"
Depth 3-1/4"
Cu In 71.8

Specifications:
Material 16 GA Sheet Steel
Mfg. Process Welded
KO Sides (2) 1" to 2" C.K.O.'s, (4) 1/2" & 3/4" C.K.O.'s,
(8) 1/2" K.O.'s
KO Bottom (1) 1/2" & 3/4" M.K.O.'s, (1) 3/4" & 1" M.K.O.'s
(1) 1/2" K.O.'s, (2) Ground Screws

Packaging Info:
Std Pkg 10

Certifications:
steel products ul certification  steel products rohs certification

UL File Number:
E227970

Download PDF File

Specification
