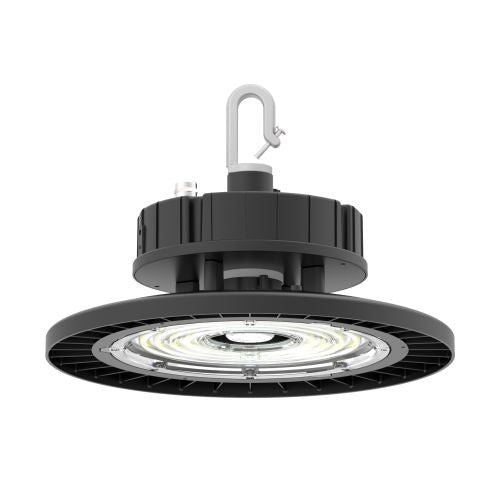

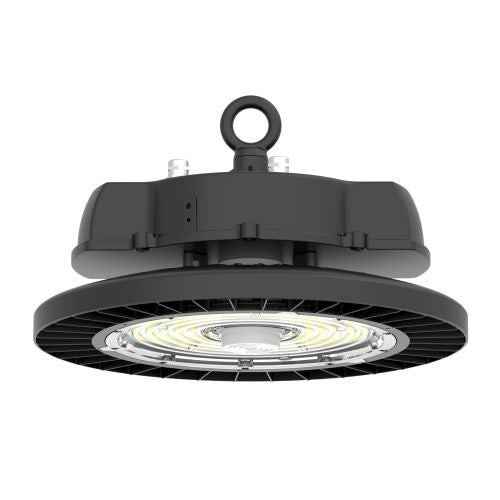

Orbit LUHB4-300W-CW-480V 4th Gen LED UFO Highbay 300W 5000K - Black

Orbit Industries, Inc.SKU: LUHB4-300W-CW-480V

Precio:
Precio de venta$452.03

Gastos de envío calculados en la caja

Stock:
Disponible

Descripción

Category LED
Page H9

Description:
The LUHB4 Series is UFO shape LED High Bay with low-profile design, excellent cooling structure. It is ideal for commercial areas such as warehouse, station, supermarket, or exhibition hall. It provides multiple mounting constructions for various mounting request. UL listed for wet locations. DLC 5.1 Premium Listed.

Specifications:





LUHB4 480V Line Drawing
Voltage: 277~480V
Power Factor: > 0.9
Housing: Die Cast Aluminum
Cord Length: 3.2 FT
Finish: UV Resistant Black Powder Coat Finish
Lens Material: High Light Transmittance Polycarbonate Lens
Ambient Operating Temp: -40°C / -40°F to 50°C / 122°F
Mount: 1/2“ heavy-duty Fixture Hook Included;
Trunnion (Sold Separately)
UL listed for Wet Location E335594
Life Hours: 50,000
Warranty: 5 Year Limited Warranty
Beam Angle: 90°
Dimmable: 0-10V/PWM/VR
Surge Protection: 6KV - 230W
10KV - 300W

Dimensions
LUHB4-230W-480V: (A) 14-3/16" x (B) 8-7/8"
LUHB4-300W-480V: (A) 15-3/4” x (B) 8-7/8”

Certifications UL Mark DLC PM Logo  Philips Lumileds  IP65 Logo  RoHS Logo   LM-79  5 Year Warranty DIMMABLE


Catalog
Number

DLC
Product ID

System Wattage

Efficacy

Color
Temp

Lumens

CRI

Wattage Equivalent

LUHB4-230W-CW-480V PNXVZ9K2 230W 143 lm/W 5000K 32890 80+ 1000W MH
LUHB4-300W-CW-480V P3SLOUUP 300W 143 lm/W 5000K 42900 80+ 1000W MH

Download PDF File

Specification
