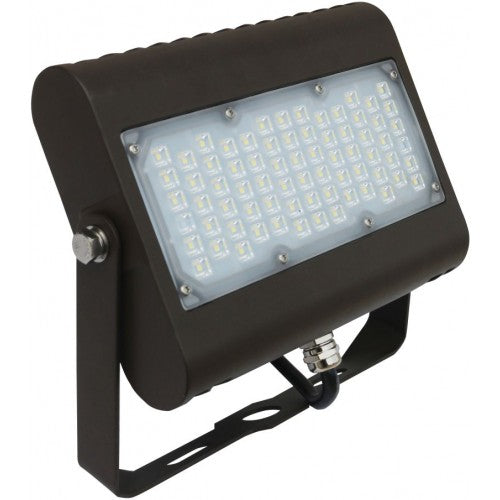

Orbit LFL7-50W-CW-T Slim LED Flood Light With Trunnion 50W 120~277V 5000K - Bronze

Orbit Industries, Inc.SKU: LFL7-50W-CW-T

Choose Pack: 1 Pack
Precio:
Precio de venta$64.50

Gastos de envío calculados en la caja

Stock:
Disponible

Descripción

Category LED
Page H16

Description:
The LFL7 is a powerful LED Flood Light ideal for outdoor applications such as exterior building lighting, sign lighting, loading docks, or warehouses. Compared to traditional flood lighting, the slim design of these Ultra-Bright LED Flood Lights makes them lighter in weight, easy to install, and a very attractive upgrade to traditional flood lighting. Unlike other Flood Lights, the LFL7 can be mounted and wired without having to access inside the fixture making the installation process even faster. UL listed for Wet Locations. DLC Premium Listed.

Specifications:   LFL7-15W-T:
LFL7-T Line Drawing

LFL7-30W/50W-T:
LFL7-30W-50W-T Line Drawing
Voltage: 120~277V
Power Factor: > 0.9
NEMA Type: 7H x 6V Beam Spread
Housing: ADC12 Die Cast Aluminum
Finish: UV Resistant Bronze Powder Coat Finish
Lens Material: High Light Transmittance Polycarbonate Lens with Weatherproof Gasket
Ambient Operating Temp: -40°C / -40°F to 40°C / 104°F
Mount: Trunnion Mount
UL listed for Wet Location E335594
Life Hours: 50,000
Warranty: 5 Year Limited Warranty
Beam Angle: 120x90°
*Dimmable: 0-10V/PWM/VR

Dimensions
LFL7-15W-T: (A) 5" x (B) 5-13/16" x (C) 1-3/4"
LFL7-30W-T: (A) 7-1/2" x (B) 8-1/2" x (C) 2"
LFL7-50W-T: (A) 9-3/8" x (B) 9-3/4" x (C) 2"

Certifications UL Mark DLC PM Logo  Philips Lumileds  IP65 Logo  LM-79  RoHS Logo  5 Year Warranty


Catalog
Number

DLC
Product ID

System Wattage

Efficacy

Color
Temp

BUG Rating

Lumens

CRI

Wattage Equivalent

LFL7-15W-WW-T PLYFA3RH6S5V 15W 113 lm/W 3000K B1-U1-G0 1675 70+ 50W MH
*LFL7-15W-CW-T PLJUE1ZTHBA2 15W 129 lm/W 5000K B1-U1-G0 1937 70+ 50W MH
LFL7-30W-WW-T PL1E51B3WIFX 30W 126 lm/W 3000K B2-U2-G1 3837 70+ 100W MH
*LFL7-30W-CW-T PL2RII7G5XB0 30W 133 lm/W 5000K B2-U2-G1 4040 70+ 100W MH
*LFL7-50W-CW-T PLHVVBY800OZ 50W 131 lm/W 5000K B3-U2-G2 6218 70+ 175W MH

Download PDF File

Specification
