Descripción
| Category | PREFAB |
| Page | P1-P8 |
| Barcode | 8-35243-02928-6 |
| Description: | |

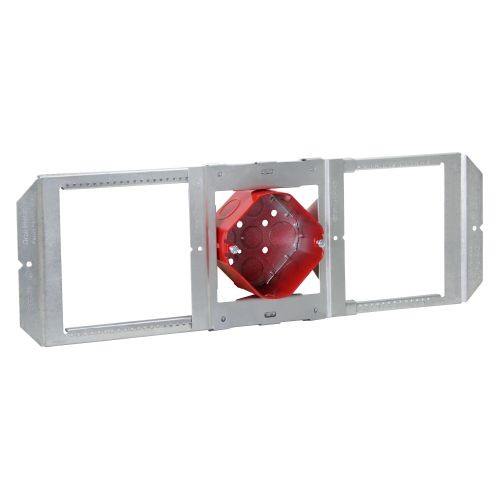

| Orbit's Preassembled SSB-T5 with FA-UMAB-4R is a ready-to-install solution for mounting life safety devices between wall studs or hard-lid ceiling joists. The SSB-T5 adjusts from 15” to 25” with the FA-UMAB-4R attached to bracket. FA-UMAB-4R’s built-in adapter allows for box depth adjustment from 0" to 1-1/2", ensuring box opening is flush with finished drywall. This 4” Octagon box is 2-1/8" deep - ideal for lighting fixtures, smoke detectors and devices where drywall depths are unknown. FA-UMAB-4R is powder coated with a red finish. SSB-T5 maintains rigidity at full 25” extension, so there is no need for added back support. | |
| Features: | |
| - Telescoping bracket adjusts from 15" to 25" - Mount boxes between studs or overhead between hard lid ceiling joists - Maintains rigidity when fully extended, eliminating need for back support - 6-way adjustability - Built-in adapter allows box adjustment from flush to 1-1/2" via guided slots (ships with box set at 5/8” raised) - Two (2) outside-facing screws lock box at desired depth - Ships preassembled to reduce installation time - Patented |
|
| Box Specifications: | |
| Diameter: | 4" |
| Depth: | 2-1/8" |
| Cu In: | 21.5 |
| Material | 16 GA Sheet Steel |
| Color | Galvanized (SSB-T5) Red (FA-UMAB-4R) |
| Mfg. Process | Welded |
| KO Sides: | (2) - 1/2", (2) - MKO |
| KO Bottom: | (3) - 1/2", (2) - 3/4" |
| (Side K.O.s may not be accessible) | |
| Packaging Info: | |
| Std Pkg | 20 |
| Certifications: | |

|
|
| UL File Number: | |
| E310661 | |
