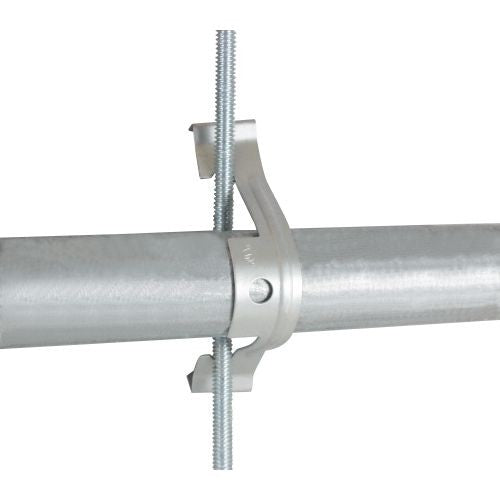

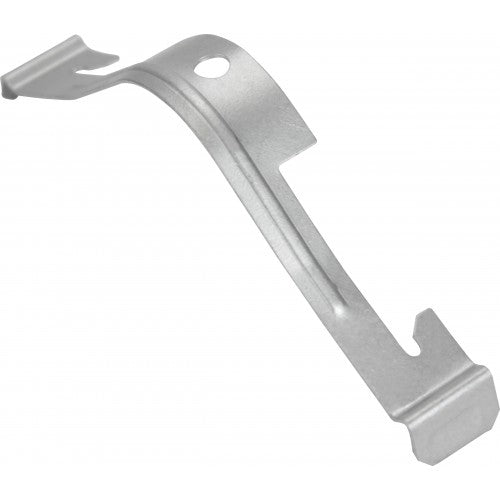

Orbit CC-20 Conduit To Rod/Wire Clip, 1" -1-1/4" EMT


Choose Pack: 1 Pack
Precio:
Precio de venta$0.77

Gastos de envío calculados en la caja

Stock:
Disponible

Descripción

Category FASTENER
Page F4
Barcode 8-35243-02481-6
Features:
- Spring Steel
- Supports conduits to rods, wire or flanges
- Can be used for flexible metallic tubing, armored cables, portable cables, control tubes and communication cables
- Available for EMT, rigid, ENT and aluminum conduits
- No tools needed for installation
Specifications:
EMT Conduit Size 1”, 1 1/4”
Rigid Conduit Size 3/4”, 1”
Load Capacity:
Vertical Wire or Rod 50 lb
Horizontal Flange 100 lb
Vertical Flange 22 lb
Packaging Info:
Std Pkg 100

Certifications:
ul certification
UL File Number:
E328572

CONDUIT SIZE #10, #12 WIRE #8, #9 WIRE 3/16”, 1/4” ROD 1/8” - 1/4” FLANGE 5/16” - 3/8” FLANGE 7/16” - 1/2” FLANGE
1/2” EMT CC-8 CC-8 CC-8 CC-8 CC-12 CC-12
1/2” RIGID CC-8 CC-12 CC-12 CC-12 CC-12 CC-16
3/4” EMT CC-12 CC-12 CC-12 CC-12 CC-16 CC-16
3/4” RIGID CC-12 CC-12 CC-16 CC-16 CC-20 CC-20
1” EMT - CC-16 CC-16 CC-16 CC-20 CC-20
1” RIGID - - CC-20 CC-20 CC-20
1 1/4” EMT - CC-20  CC-20 CC-20  - -
