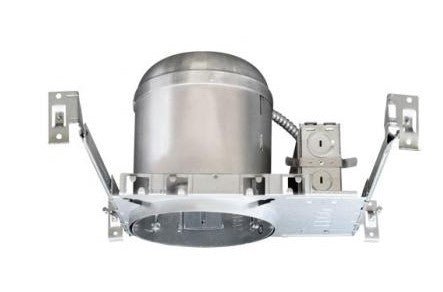

ELCO Lighting EL7ICA 6 Inch Airtight IC Housing Lamp Type Medium Base (E26), With Socket Bracket, 90W, 120V

ELCO Lighting 6 Inch Airtight IC Housing Lamp Type Medium Base (E26), With Socket Bracket, Watts 90W, Voltage 120V

Features:

6" Airtight IC Universal Housing for direct contact with
ceiling insulation.
Integral thermal protector guards against improper
lamping.
Adjustable socket bracket allows for different lamp
types/sizes and proper and consistent lamp positioning.
Lamp: PAR
UL Listed for damp location and for feed through.

Specifications:

• Wattage 90W

• Voltage 120V

• Lamp Type Medium Base (E26)

• Damp Location Listed

Technical Details:

Construction:
‚¬¢ IC rated for direct contact with insulation, for use in IC or non-IC conditions.
‚¬¢ Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
‚¬¢ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
‚¬¢ Aluminum housing for greater heat dissipation. Stamped galvanized steel frame.
Installation: Designed for ceiling plenums where 2x8 joists or taller are used. High strength hanger bars can
easily be nailed to joists. Maximum hole cutout is 6 3/8". Suitable for T-grid and drop ceiling applications. See
installation sheet for detailed information.
Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size pryout conduit
knockouts, 4 Romex pryouts with strain relief.
Hanger Bars: Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber,
engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-grids. Spans up to 24"
and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange
allows for single-person installation while aligning the housing with the joists.
Electrical:
‚¬¢ Input Voltage: 120V AC.
‚¬¢ Thermally protected against improper lamping.
Trims: Compatible with ELCO 6" Line Voltage PAR trims.
Lamp: Designed for use with Medium Base (E26) PAR lamps up to 90W.
Listings:
‚¬¢ UL Listed for Damp Location.
‚¬¢ UL Listed for Feed Through.
‚¬¢ UL Listed for Direct Contact with Insulation and Combustible Material.
‚¬¢ Airtight per ASTM E-283.
‚¬¢ Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.

Download PDF File

Specification
