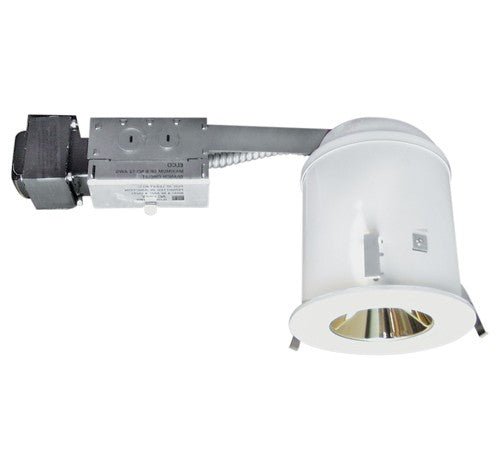

ELCO Lighting EL5RLV 5 Inch Low Voltage Remodel Housing

5" Low Voltage Remodel Housing

FEATURES:

Remodel Housing.
Versatile, reliable and easy to install.

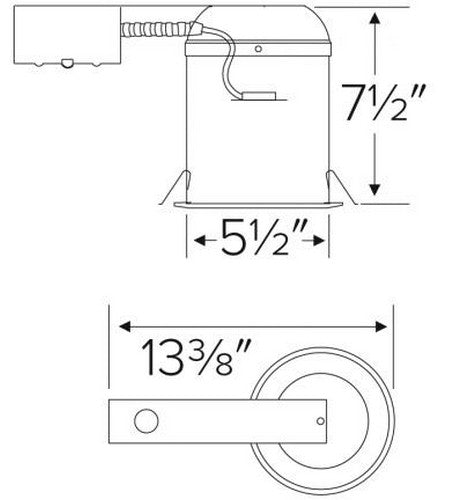

Unit slips through 5 1/2" ceiling cut out.
Integral flange secures fixture against ceiling.
Four remodel clips secure housing and accommodate
various ceiling thickness.
Junction box listed for 90° supply wire.
Lamp: 12V, MR16 GU/GX5.3 bi-pin LED (not included).
Lamp Holder: MR16 GU/GX5.3 bi-pin socket.
Trims sold separately.

SPECIFICATIONS :

Download PDF File

Specification

• Wattage 75W

• Voltage 120V

• Lamp Type GU5.3 BiPin

• Damp Location Listed

Construction

Remodel housing with thermal protector.
Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Steel housing for greater heat dissipation.

Installation

Designed for ceiling plenums where 2x8 joists or taller joists are used. Maximum hole cutout is 5 1/2". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Electrical

Input Voltage: 120V AC.
Output Voltage: 12V AC.
Thermally protected against improper lamping.

Trims

Compatible with ELCO 5" MR16 trims.

Dimmability

Magnetic transformer dims with MLV type dimmers.
See dimming compatibility list for a full list of compatible dimmers.
Note: Lamp used may affect dimmabilty.

Lamp

Designed for use with GU5.3 MR16 LED lamps.

Warranty

ELCO Lighting warrants products will be free from defects in materials and workmanship for a
period of 3 years.
