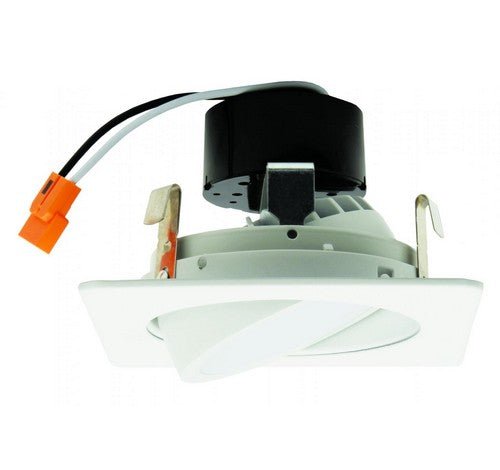

ELCO Lighting EL446CT3W 9W 4" LED Square Adjustable Gimbal Insert 3- CCT - White Finish

ELCO Lighting's inserts are engineered with energy-efficient LED technology that produces even illumination with an incredible 93+ CRI. Designed to be used for New Construction, Remodel, and Retrofit applications, these inserts are rated for a life of 50,000 hours, and meet the Title 24 and Energy Star requirements. Suitable for IC and Non-IC housings manufactured by ELCO or others.

FEATURES :

• Fits ELCO 4‚¬²‚¬² Dedicated LED Recessed Housings.

• Die-Cast construction provides lasting durability.

• 25° Tilt, 358° rotation.

• CA Title 24, ENERGY STAR, JA8-2016-E.

• Life Span of 50,000 hours L70.


SPECIFICATIONS :

• Wattage : 9W

• Lumens : 620 lm - 640 lm

• Voltage : 120V

• Color Temp. : 2700K - 3000K

• Dimmable : Triac/ELV

• Lamp Type : LED

• Beam Angle : 60°

• CRI : 90+

• Power Factor : >0.9

• Damp Location : Listed

Optics: Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED Array technology.

Construction: For use in IC and non-IC housings. Diecast construction for lasting quality and greater heat dissipation. High quality powder coat finish preventing rust and paint cracking.

Installation: Includes PSA30 medium base adapter for retrofitting existing housings. Quick connect for use with ELCO housings EL490ICA, EL490RICA, EL492ICA, EL492RICA, EL49FICA. Can be used in IC and non-IC housings.

Electrical: Driver connects to 120V power supply. High Efficiency driver with a power factor > 0.9. Start time of less than .75 seconds.

LED Technology:
Extremely accurate color rendering with 93+ CRI.
Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing integral heat sink.
Instant On to Full Brightness. No LED pixelation.

Dimmability: Works with 120V Triac and ELV type dimmers . Dims down to 10%. For full list of dimmers refer to the Dimmer Compatibility List.

Listings: UL Listed for Damp Location. RoHS Compliant. ENERGY STAR® Certified. California Title 24 JA8-2016-E.

Warranty: ELCO Products are built to last with a 5-year Limited Warranty.

Labels and Listings:
UL Listed for Wet Location
RoHS Compliant
ENERGY STAR® Certified
California Title 24 JA8-2016-E
