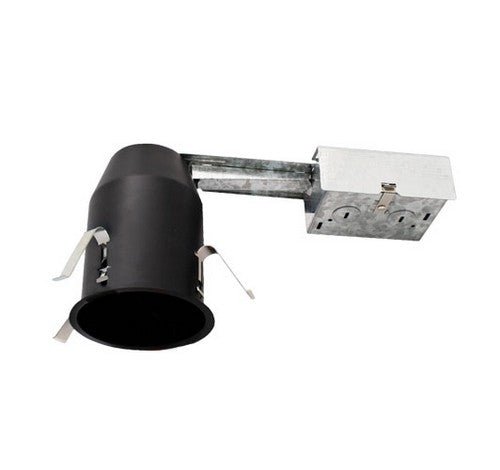

ELCO Lighting EL39LDRICA 12W 3" Remodel Housing - Black Finish

3" remodel housing for use with 120V GU10 MR16 LED lamps.

FEATURES :

• Single wall IC construction, for use in insulated ceilings.

• Flicker Free LED Dimming.

• Lamp: 120V, MR16 GU-10 LED (not included).

• Lamp Holder: Twist-and-lock GU10 MR16 lamp holder.

• Trims sold separately.


SPECIFICATIONS :

• Wattage : 12W

• Voltage : 120V

• Lamp Type : GU10 LED

• Wet Location : Listed with Shower Trims

• Damp Location : Listed

Construction:
Single wall IC rated for direct contact with insulation, for use in IC or non-IC conditions.
Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Steel housing for greater heat dissipation. Stamped galvanized steel frame.

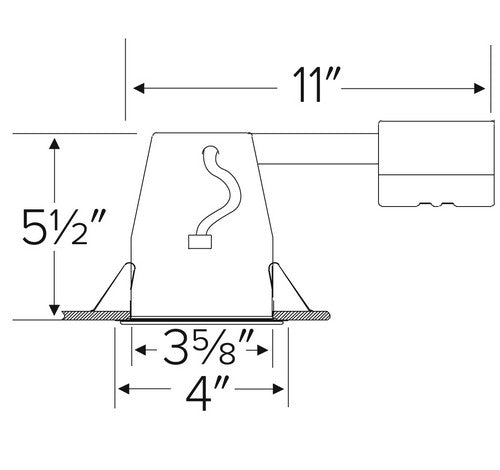

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. Maximum hole cutout is 3 5/8". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts with pry-out knockout slots. 4 Romex pryouts with strain relief.

Electrical:
Input Voltage: 120V AC.
Thermally protected against improper lamping.

Trims: Compatible with ELCO 3" MR16 trims.

Lamp: Designed for use with GU10 MR16 LED lamps.

Dimmability:
Dimmability based on lamp.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.

Listings:
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
UL Listed for Direct Contact with Insulation and Combustible Material.
Airtight per ASTM E-283.
Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.
