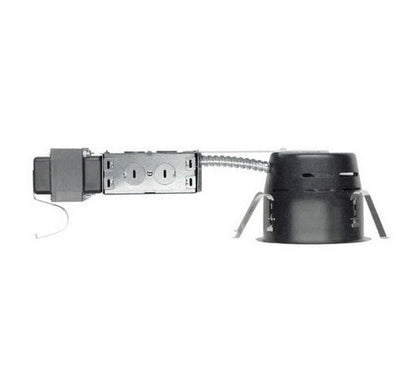

ELCO Lighting EL1499RS 4" Low Voltage Shallow Remodel Housing Shallow Housing, Magnetic Transformer - Black Finish

4" new construction housing with a magnetic or electronic transformer. Uses a GU5.3 Bi-Pin socket for use with Bi-Pin MR16 lamps.

FEATURES:

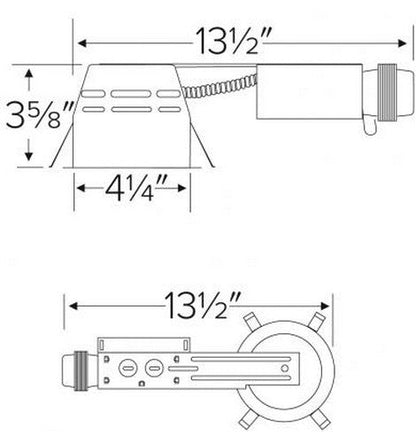

• Unit fits through 4 1/4" ceiling cut out.

• Integral flange secures fixture against ceiling.

• Four remodel clips secure housing and accommodate
  various ceiling thickness.

• Junction box listed for 90° supply wire.

• Lamp: 12V, MR16 GU/GX5.3 bi-pin (not included).

• Lamp Holder: MR16 GU/GX5.3 bi-pin socket.

• Trims sold separately.

SPECIFICATIONS :

• Wattage 50W

• Voltage 120V

• Lamp Type GU5.3 BiPin

• Damp LocationListed

Construction:

Shallow Remodel housing with thermal protector.
Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Steel housing for greater heat dissipation.

Installation

Designed for ceiling plenums where 2x6 joists or taller joists are used. Maximum hole cutout is 4 1/4". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Electrical

Input Voltage: 120V AC.
Output Voltage: 12V AC.
Magnetic or electronic transformer available.
Thermally protected against improper lamping.

Trims

Compatible with ELCO 4" MR16 trims.

Dimmability

Magnetic transformer dims with MLV type dimmers.
Electronic transformer dims with ELV type dimmers.
See dimming compatibility list for a full list of compatible dimmers.
Note: Lamp used may affect dimmabilty.

Lamp: Designed for use with GU5.3 MR16 lamps

Listings

UL Listed for Damp Location
UL Listed for Wet Location with select trims
UL Listed for Feed Through
