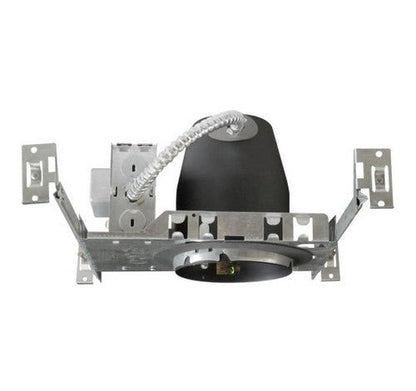

ELCO Lighting EL1499EA 50W 4" Low Voltage Miniature Universal Housing Electronic Transformer

4" new construction housing with a magnetic or electronic transformer. Uses a GU5.3 Bi-Pin socket for use with Bi-Pin LED MR16 lamps.

FEATURES :

Single wall airtight remodel construction.
Trims sold separately.
Lamp: 50W MAX 12V MR16 GU/GX5.3 bi-pin LED/Halogen (not included).
Lamp Holder: MR16 GU/GX5.3 bi-pin socket.
Note: Use only dimmers specifically designed for use with electronic transformer.

SPECIFICATIONS :

• Wattage : 50W

• Voltage : 120V

• Lamp Type : GU5.3 BiPin

• Damp Location : Listed

Construction:
Remodel airtight housing.

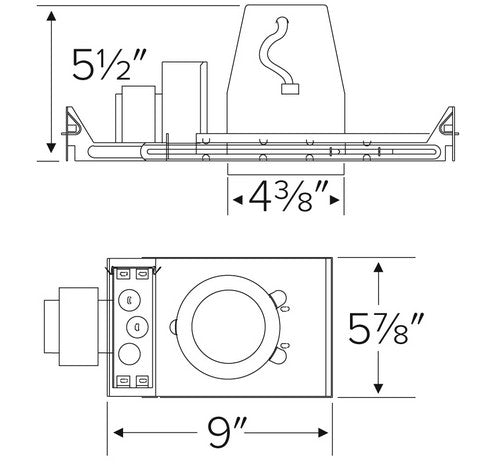

Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Steel housing for greater heat dissipation.

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. Maximum hole cutout is
4 1/4". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Electrical:
Input Voltage: 120V AC.
Output Voltage: 12V AC.
Magnetic or electronic transformer available.
Thermally protected against improper lamping.

Note: Lamp used may affect dimmable.

Trims: Compatible with ELCO 4" MR16 trims.

Dimmability:
Magnetic transformer dims with MLV type dimmers.
Electronic transformer dims with ELV type dimmers.
Dimmability based on lamp.

Lamp: Designed for use with GU5.3 MR16 LED lamps.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years

Listings:
cULus Listed for Damp Location.
cULus Listed for Wet Location with select trims.
cULus Listed for Feed Through.
Airtight per ASTM E-283.
Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.
