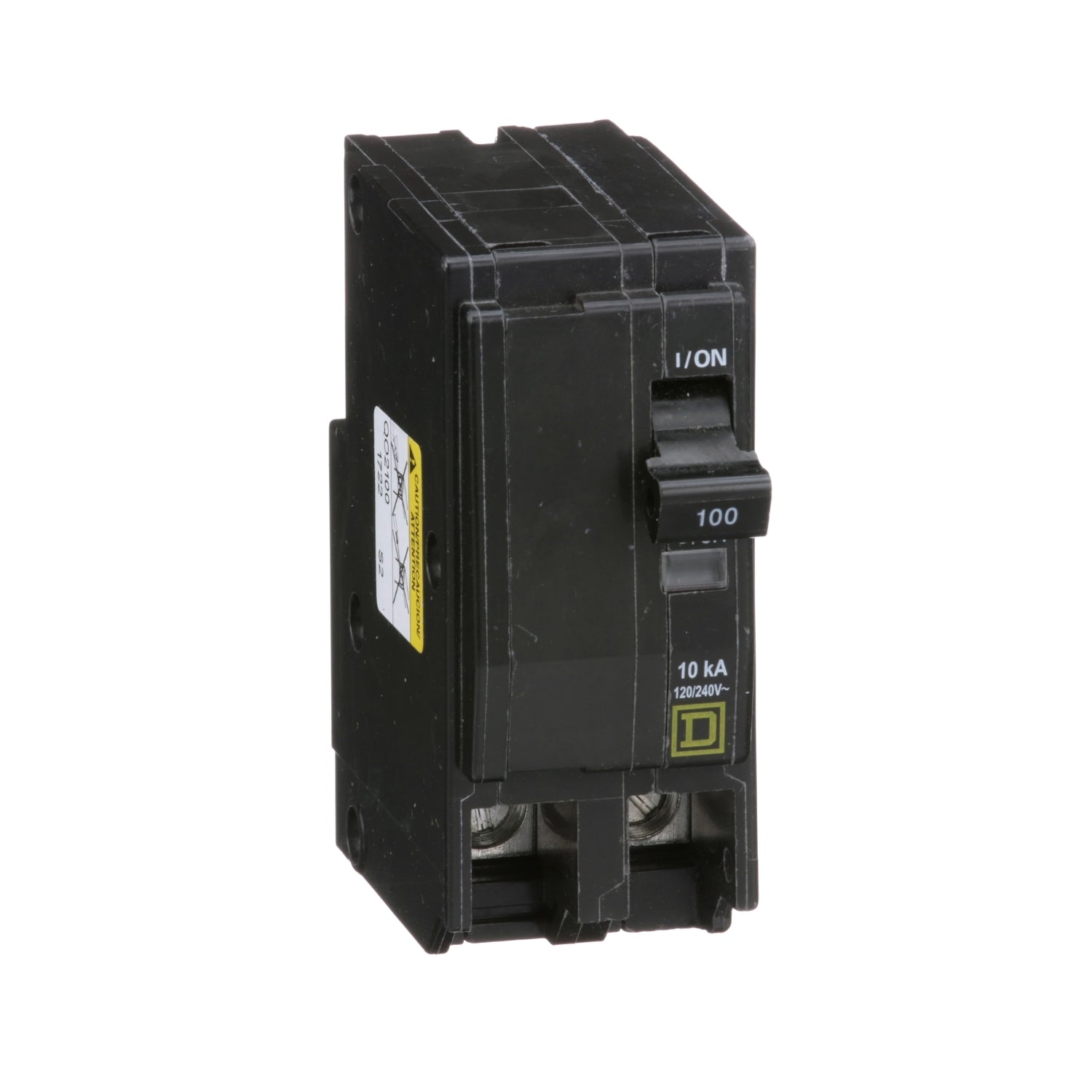

Square D QO2100C 2-Pole 100-Amp Circuit Breaker

Revolutionize Circuit Safety and Control: Introducing the QO and QOB Series Thermal Magnetic Circuit Breakers – your ultimate solution for reliable overcurrent protection and seamless AC system switching. These circuit breakers embody an advanced over-center, trip-free toggle mechanism, offering rapid quick make and quick break actions, all indicated with a reassuring positive handle indication. Additionally, the VisiTrip trip indication system adds an extra layer of assurance by visually signaling a circuit interruption post-trip.

Impressive Performance: This 2-pole QO circuit breaker commands a hefty 100A at 120/240VAC. With a robust 10kA breaking capacity, it stands ready to defend your circuits and systems with unmatched reliability.

Effortless Integration: The plug-in mounting design streamlines installation, minimizing downtime and maximizing convenience.

Customized Options: Discover a comprehensive array of features and factory-installed accessories, including shunt trips, auxiliary switches, and alarm switches, tailoring your circuit protection to your exact needs.

Certified Excellence: QO circuit breakers carry the distinguished UL Listing under UL File E84967 and are CSA Certified under CSA Master Contract 153555, setting a benchmark for quality and dependability.

Specifications:

• Product Type: Miniature Circuit-Breaker
• Range: QO
• Current Rating: 100 A
• Voltage Rating: 120/240 V AC, 120 V AC
• Mounting Type: Plug-in
• Number of Poles: 2P
• Circuit Breaker Type: Standard
• Ratings: HACR rated
• Electrical Connection: Box lugs
• Type of Packing: Clam packaging
• Interrupt Rating: 10 kA at 120/240 V AC 50/60 Hz, 10 kA at 120 V AC 50/60 Hz
• Number of Panel Spaces: 2
• Wire Size: AWG 4...AWG 2/0 copper or aluminium
• Tightening Torque: 40.71 lbf.in (4.6 N.m)
• Dimensions: Height - 3.50 in (89 mm), Width - 1.50 in (38 mm), Depth - 2.91 in (74 mm)
• Net Weight: 0.75 lb (0.340 kg)

Trust in the QO and QOB Series Thermal Magnetic Circuit Breakers to safeguard your circuits with precision and peace of mind. Elevate your electrical protection today and enjoy a new level of confidence in your systems.
